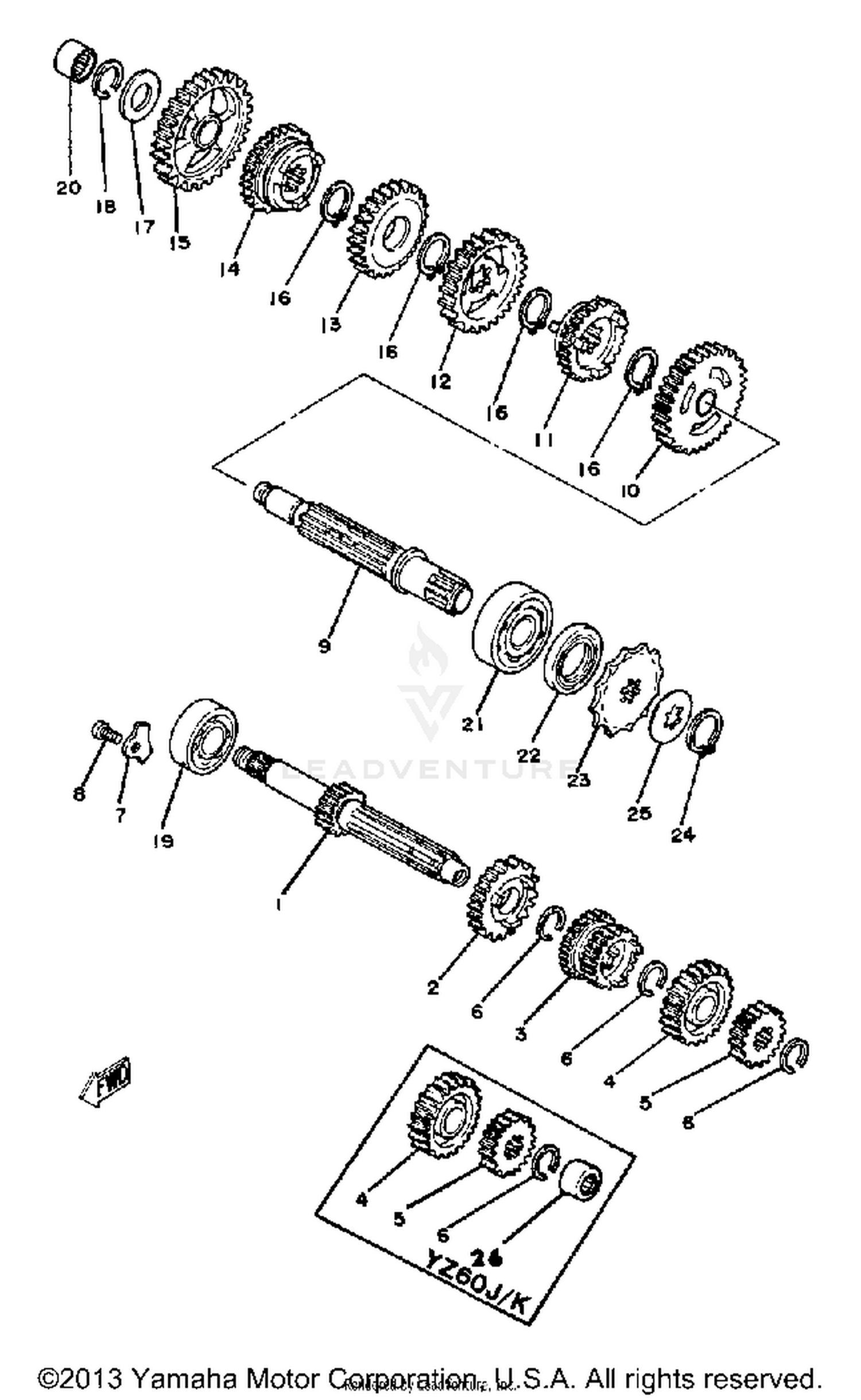

Transmission-yz60h - J - K Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (4V0-17411-00) (13T)
4V0-17411-02-00
|
$64.99 | ||
|
Unavailable |
|||
|
#
AXLE, MAIN (4V0-17411-00) (13T)
4V0-17411-01-00
Superseded by 4V0-17411-02-00
|
$64.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 5TH PINION (20T)
4V0-17151-02-00
|
$98.99 | ||
|
Unavailable |
|||
|
#3
GEAR, 3RD PINION (19T, 21T)
4V0-17131-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#4
GEAR, 6TH PINION (24T)
4V0-17161-02-00
|
$63.99 | ||
|
Unavailable |
|||
|
#5
GEAR, 2ND PINION (16T)
4V0-17121-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#6
CIRCLIP
93440-16089-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, BEARING COVER
3AK-15383-01-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#9
AXLE, DRIVE
4V0-17421-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#10
GEAR, 2ND WHEEL (33T)
4V0-17221-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#11
GEAR, 6TH WHEEL (25T)
4V0-17261-02-00
|
$87.99 | ||
|
Unavailable |
|||
|
#12
GEAR, 3RD WHEEL (31T)
4V0-17231-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#13
GEAR, 4TH WHEEL (28T)
4V0-17241-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#14
GEAR, 5TH WHEEL (23T)
4V0-17251-02-00
|
$110.99 | ||
|
Unavailable |
|||
|
#15
GEAR, 1ST WHEEL (36T)
4V0-17211-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
93410-20038-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM 1 (T=0.6)
164-17427-00-06
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93440-15012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-20333-00
Superseded by 93306-20310-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93315-31502-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING (B6204)
93306-20421-00
Superseded by 93306-20461-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93102-20143-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPROCKET, DRIVE (14T)
93812-14035-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE 13T
93812-13022-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE 12T
93812-12010-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
99009-18400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPEC''L SHAP
90209-16206-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, CYLINDER.#11
93311-31249-00
|
$11.99 | ||
|
Unavailable |
|||
