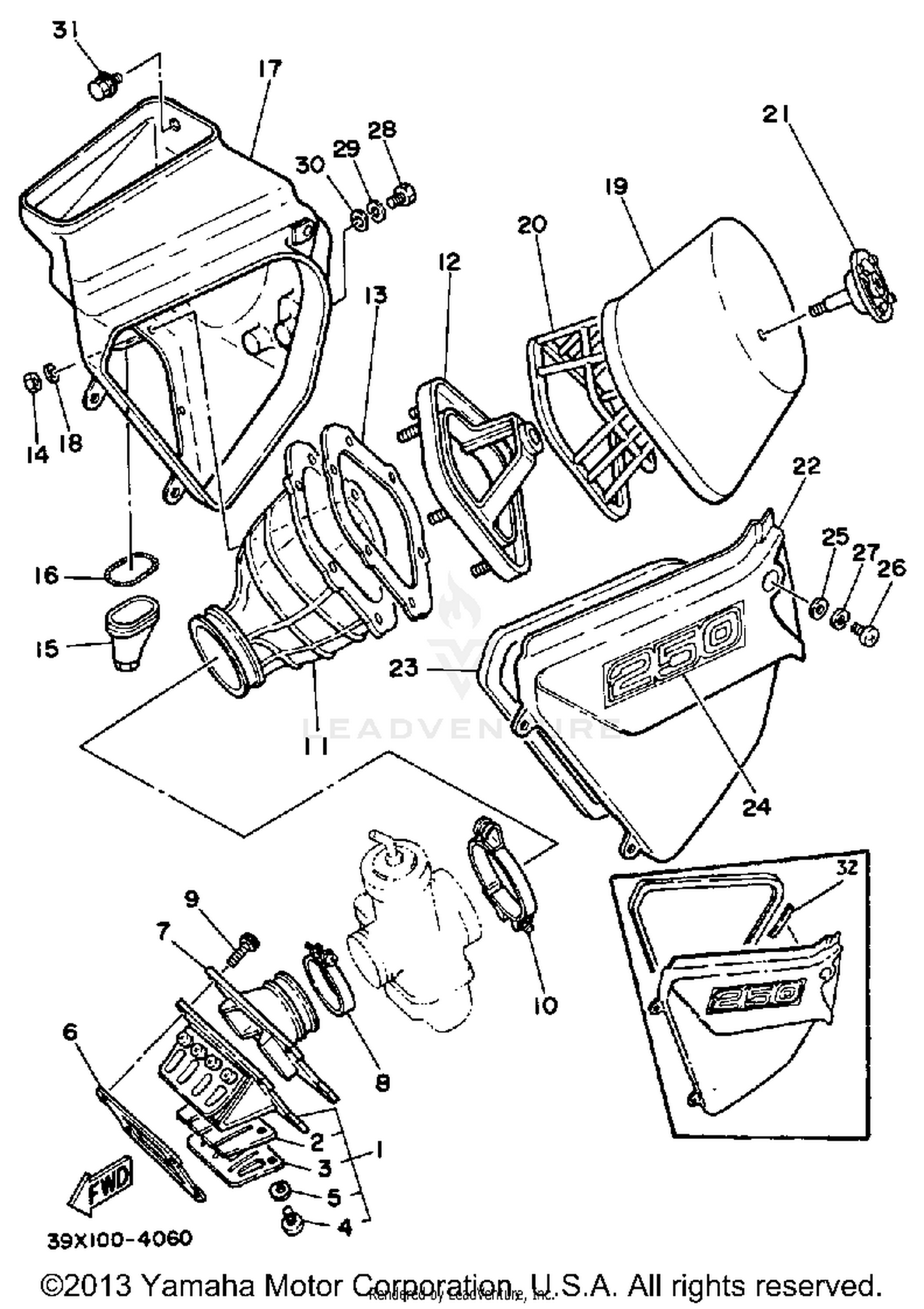

Air Cleaner Yz250l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
39X-13610-00-00
|
$145.99 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
39X-13613-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#3
STOPPER, REED VALVE
39X-13616-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, VALVE SEAT
39X-13621-11-00
|
$12.99 | ||
|
Unavailable |
|||
|
#7
JOINT, CARBURETOR
39X-13565-00-00
|
$146.99 | ||
|
Unavailable |
|||
|
#8
CLAMP, HOSE
90460-51109-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HOSE
90460-68231-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, AIR CLEANER 1
39X-14453-00-00
|
$204.99 | ||
|
Unavailable |
|||
|
#12
HOLDER, GUIDE
39X-14459-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#13
SEAL
39X-14462-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#14
NUT, U
95601-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL
39K-14457-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#16
SPRING, COMPRESSION
90504-03033-00
|
$4.35 | ||
|
Unavailable |
|||
|
#17
AIR CLEANER CASE COMP.
39X-W1441-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#18
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
ELEMENT, AIR CLEANER
39X-14451-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#20
GUIDE, ELEMENT
39X-14458-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#21
PLATE, ELEMENT FTTTING (4V2-144
4V2-14468-02-00
|
$20.99 | ||
|
Unavailable |
|||
|
#22
CAP, CLEANER CASE 1
39X-14412-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#23
SEAL
39W-14452-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#24
EMBLEM
39X-21737-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAL
39X-14452-00-00
|
$2.85 | ||
|
Unavailable |
|||
