1984 Yamaha YZ250L Side Cover Yz250l OEM Parts

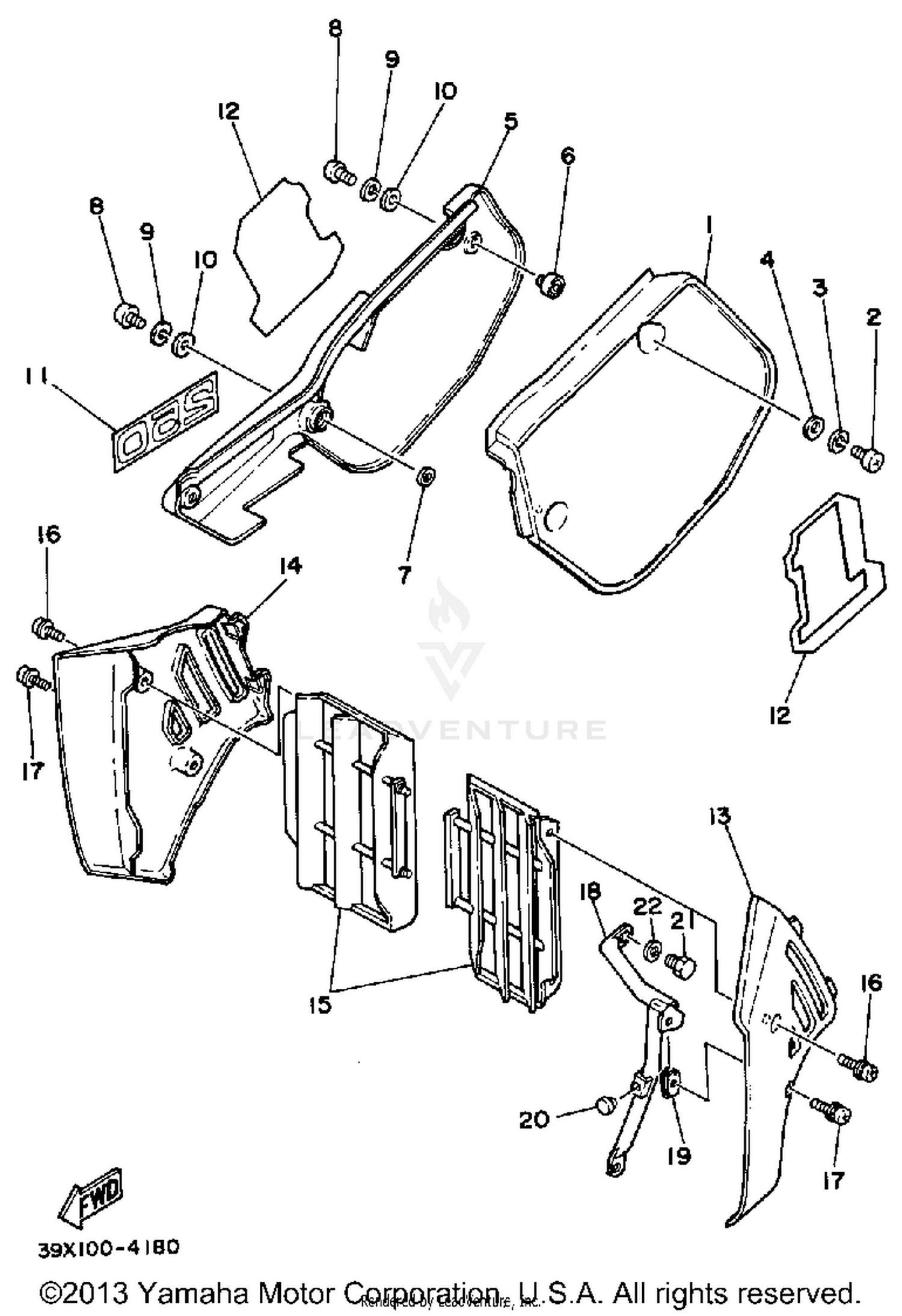

Side Cover Yz250l Diagram

Item	MSRP	Qty
#1 COVER, SIDE 1 39X-21711-01-98	$107.99
Unavailable
#2 SCREW, PAN HEAD 98503-06014-00 Superseded by 98507-06014-00	$7.49
Available to order. Add to View Price
#3 WASHER, SPRING 92995-06100-00	$3.20
Available to order. Add to View Price
#4 WASHER, PLATE 90201-06571-00	$8.49
Available to order. Add to View Price
#5 COVER, SIDE 2 39X-21721-01-98	$111.99
Unavailable
#6 DAMPER, LOCATING 1 22W-24181-00-00	$6.49
Available to order. Add to View Price
#7 WASHER, PLAIN 92990-08200-00	$2.45
Available to order. Add to View Price
#8 SCREW, PAN HEAD 98503-06014-00 Superseded by 98507-06014-00	$7.49
Unavailable
#9 WASHER, SPRING 92995-06100-00	$3.20
Unavailable
#10 WASHER, PLATE 90201-06571-00	$8.49
Unavailable
#11 EMBLEM 39X-21737-00-00	$7.99
Unavailable
#12 EMBLEM 2 3R2-21782-00-00	$9.49
Unavailable
#13 COVER, SIDE 3 39X-21731-00-00	$15.49
Unavailable
#14 COVER, SIDE 4 39X-21741-00-00	$15.99
Unavailable
#15 PANEL 1 24Y-2172A-01-00	$30.99
Unavailable
#16 SCREW, WITH WASHER 90159-05100-00 Superseded by 90159-05073-00	$7.49
Available to order. Add to View Price
#17 SCREW, WITH WASHER 90159-05100-00 Superseded by 90159-05073-00	$7.49
Unavailable
#18 GUARD, RADIATOR 39X-2174F-00-00	$58.99
Unavailable
#19 NUT 22W-21791-00-00	$9.49
Available to order. Add to View Price
#20 DAMPER, RADIATOR 24X-12465-00-00	$2.05
Unavailable
#21 BOLT, HEX 97313-08018-00 Superseded by 90101-08691-00	$4.05
Available to order. Add to View Price
#22 WASHER, SPRING 92990-08100-00	$5.49
Available to order. Add to View Price
