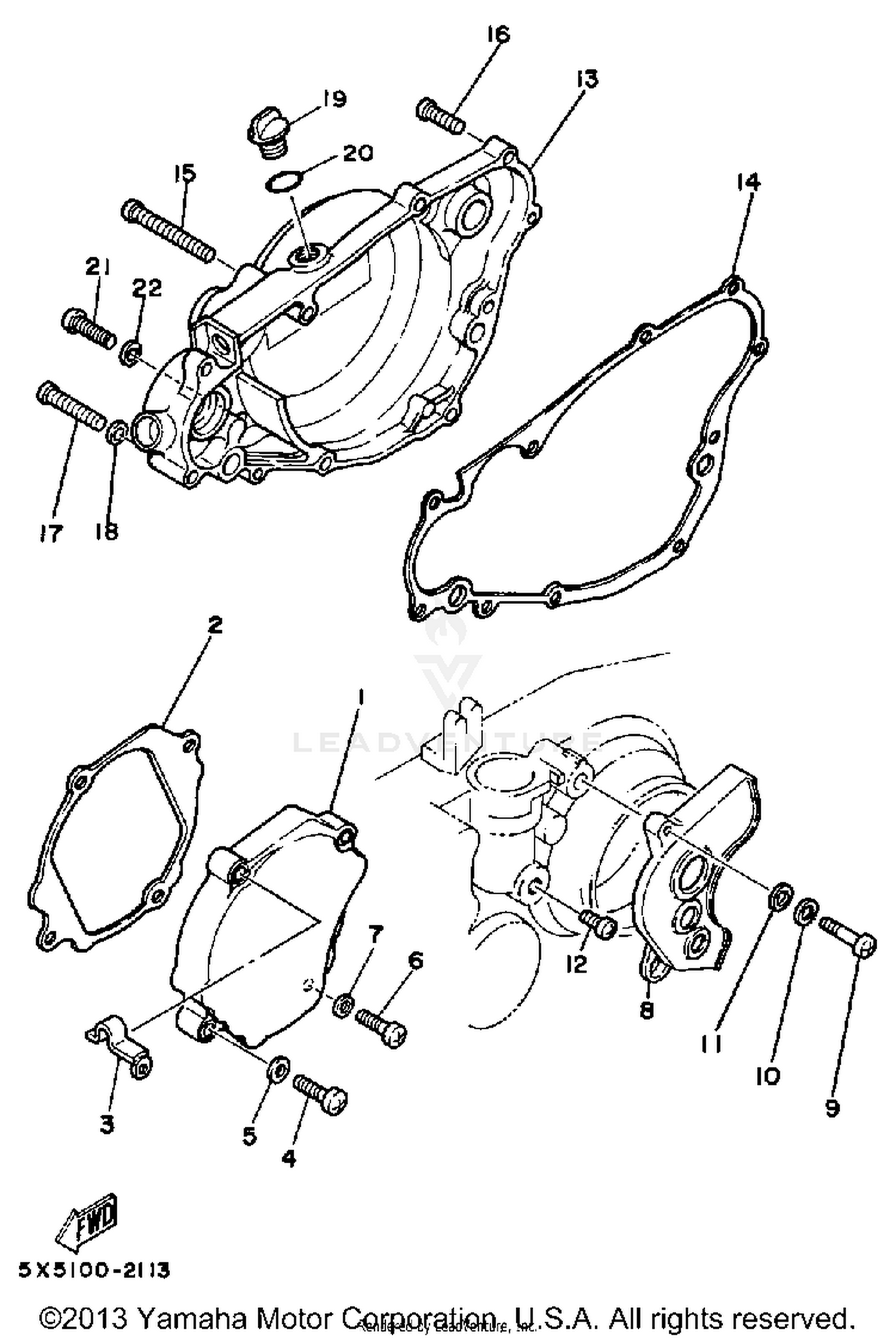

Crankcase Cover Yz250l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE (L)
39X-15411-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#2
GASKET,CRCS COVER
5X5-15451-00-00
Superseded by 5X5-15451-01-00
|
$10.49 | ||
|
Unavailable |
|||
|
#3
CLAMP
90465-06247-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98516-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#8
COVER, CRANKCASE 2
23X-15421-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Unavailable |
|||
|
#10
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#12
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CRANKCASE 3
24Y-15431-01-00
|
$210.99 | ||
|
Unavailable |
|||
|
#14
GASKET,CRCS COVER3
5X5-15462-00-00
Superseded by 5X5-15462-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98506-06065-00
Superseded by 98507-06065-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#19
PLUG, OIL LEVEL
1G8-15362-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
98506-06008-00
Superseded by 98517-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
90430-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
