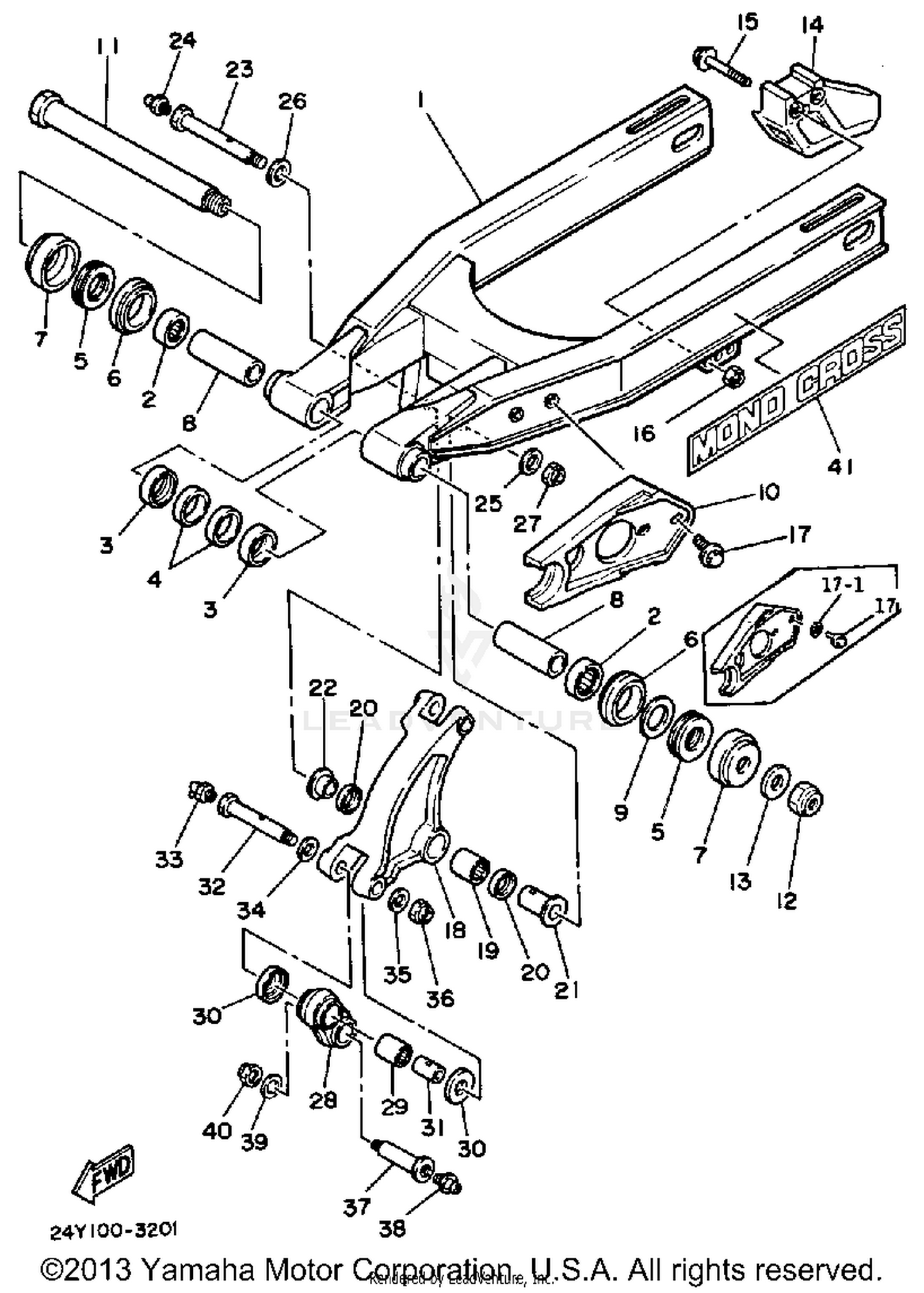

Swing Arm Yz250l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#
REAR ARM
39X-22110-00-00
|
$573.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93317-32231-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, SOLID
90380-22111-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (DC 22-28-8)
93106-22019-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93342-22208-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (35-41-8)
93108-35004-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, THRUST 2
3R4-22129-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SOLID
90380-16077-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
39W-22151-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT, PIVOT
5X6-22141-01-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCKING
90185-16127-00
Superseded by 90185-16002-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-160F6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SUPPORT, CHAIN
23X-22199-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95811-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
ARM, RELAY
39X-2217A-00-00
|
$107.99 | ||
|
Unavailable |
|||
|
#19
BEARING, CYLINDRICAL
93317-32034-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-147G6-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-147G7-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-12701-00
|
$27.99 | ||
|
Unavailable |
|||
|
#24
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-120A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-142M6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SELF-LOCKING
90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROD, CONNECTING 1
39X-2217F-00-00
Superseded by 23X-2217F-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#29
BEARING, CYLINDRICAL
93315-31732-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, THRUST 2
55K-22129-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-121H1-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-10702-00
|
$22.99 | ||
|
Unavailable |
|||
|
#33
NIPPLE, GREASE
93700-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
90109-10703-00
|
$18.49 | ||
|
Unavailable |
|||
|
#38
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#39
WASHER, PLATE
90201-100F7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
EMBLEM, REAR ARM
5X3-2218A-00-00
|
$11.08 | ||
|
Unavailable |
|||
