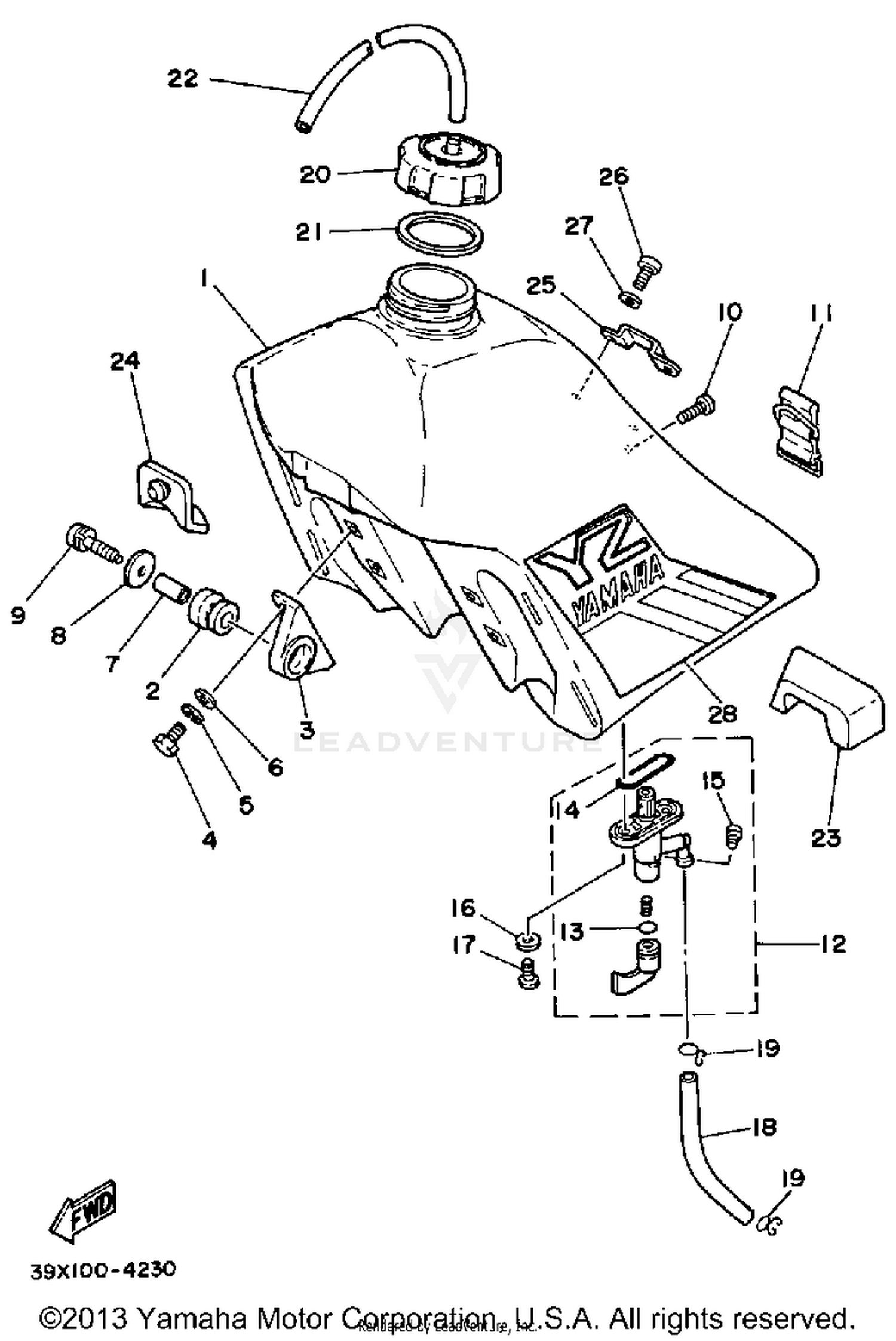

Fuel Tank Yz250l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
39X-24110-00-00
|
$205.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-18354-00
Superseded by 90480-18549-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, DAMPER
24X-24144-00-00
Superseded by 5XE-24144-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06553-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
98903-06018-00
Superseded by 90149-06306-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, TANK FITTING 1
59V-24173-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUEL COCK ASSEMBLY 1
2K5-24500-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
214-24512-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
1A0-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, LEVER FITTING
619-24535-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE (L)
90445-11356-00
Superseded by 90445-112E1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BODY, CAP
5X7-24611-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, CAP
5X7-24612-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE 5
90445-09252-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, LOCATING 1
39X-24181-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#24
DAMPER, LOCATING 4
23X-24184-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#25
BRACKET, SEAT
5X6-2412F-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#28
GRAPHIC SET
39X-24250-00-00
|
$39.46 | ||
|
Unavailable |
|||
