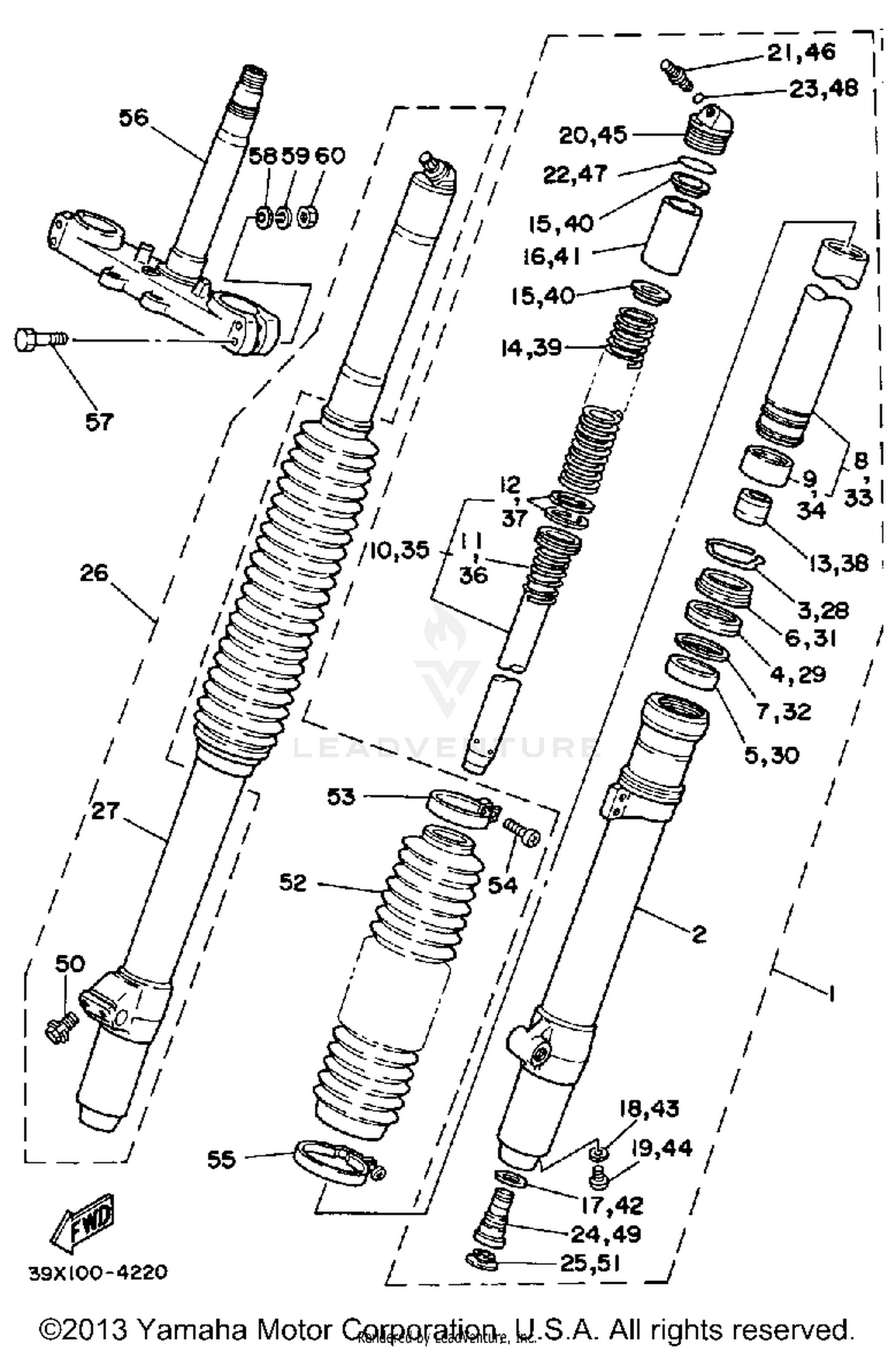

Front Fork Yz250l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
39X-23102-L0-00
|
$537.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
39X-23126-00-38
|
$189.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
23X-23145-L0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
23X-23144-L0-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE 1COMP. 1
39X-23110-00-00
|
$303.99 | ||
|
Unavailable |
|||
|
#9
PISTON, FRONT FORK
4V4-23171-L0-00
|
$63.99 | ||
|
Unavailable |
|||
|
#10
CYLINDER, FRTFRK
39X-23170-20-00
|
$64.88 | ||
|
Unavailable |
|||
|
#11
SPRING, SUB
5X6-23152-L0-00
|
$12.49 | ||
|
Unavailable |
|||
|
#12
RING, PISTON FRONT FORK
4V4-23157-L0-00
|
$19.99 | ||
|
Unavailable |
|||
|
#13
SPINDLE, TAPER
23X-23173-L0-00
|
$35.99 | ||
|
Unavailable |
|||
|
#14
SPRING, FRONT FORK SOFT (K@0.
39X-23141-10-00
|
$66.99 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK STD (K@0.3
39X-23141-00-00
|
$64.25 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK HARD (K@0.32
39X-23141-20-00
|
$76.99 | ||
|
Unavailable |
|||
|
#15
SEAT, SPRING UPPER
4V4-23142-L0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
39X-23118-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#17
GASKET
23X-23158-L0-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CAP
43M-23111-L0-00
|
$80.99 | ||
|
Unavailable |
|||
|
#21
AIR VALVE COMP.
23X-23190-L0-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
4V4-23188-L0-00
Superseded by 4V4-23188-L1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#23
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
VALVE
39X-2316A-00-00
Superseded by 43G-2316A-L0-00
|
$86.99 | ||
|
Unavailable |
|||
|
#25
PLUG
43M-2312G-L0-00
|
$17.99 | ||
|
Unavailable |
|||
|
#26
FRONT FORK ASSEMBLY R
39X-23103-L0-00
|
$537.99 | ||
|
Unavailable |
|||
|
#27
TUBE, OUTER 2
39X-23136-00-38
|
$189.99 | ||
|
Unavailable |
|||
|
#28
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
OIL SEAL
23X-23145-L0-00
|
$30.99 | ||
|
Unavailable |
|||
|
#30
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#31
SEAL, DUST
23X-23144-L0-00
|
$25.99 | ||
|
Unavailable |
|||
|
#32
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
INNER TUBE 1COMP. 1
39X-23110-00-00
|
$303.99 | ||
|
Unavailable |
|||
|
#34
PISTON, FRONT FORK
4V4-23171-L0-00
|
$63.99 | ||
|
Unavailable |
|||
|
#35
CYLINDER, FRTFRK
39X-23170-20-00
|
$64.88 | ||
|
Unavailable |
|||
|
#36
SPRING, SUB
5X6-23152-L0-00
|
$12.49 | ||
|
Unavailable |
|||
|
#37
RING, PISTON FRONT FORK
4V4-23157-L0-00
|
$19.99 | ||
|
Unavailable |
|||
|
#38
SPINDLE, TAPER
23X-23173-L0-00
|
$35.99 | ||
|
Unavailable |
|||
|
#39
SPRING, FRONT FORK STD (K@0.3
39X-23141-00-00
|
$64.25 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK SOFT (K@0.
39X-23141-10-00
|
$66.99 | ||
|
Unavailable |
|||
|
#40
SEAT, SPRING UPPER
4V4-23142-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#41
SPACER
39X-23118-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#42
GASKET
23X-23158-L0-00
|
$4.35 | ||
|
Unavailable |
|||
|
#43
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#44
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#45
BOLT, CAP
43M-23111-L0-00
|
$80.99 | ||
|
Unavailable |
|||
|
#46
AIR VALVE COMP.
23X-23190-L0-00
|
$64.99 | ||
|
Unavailable |
|||
|
#47
O-RING
4V4-23188-L0-00
Superseded by 4V4-23188-L1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#48
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#49
VALVE
39X-2316A-00-00
Superseded by 43G-2316A-L0-00
|
$86.99 | ||
|
Unavailable |
|||
|
#50
BOLT, HEXAGON SOCKET HEAD
5X6-23181-L0-00
|
$5.99 | ||
|
Unavailable |
|||
|
#51
PLUG
43M-2312G-L0-00
|
$17.99 | ||
|
Unavailable |
|||
|
#52
BOOT, FRONT FORK
39X-23191-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#53
BAND
43M-23192-L0-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#55
BAND
3LD-23489-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
UNDER BRACKET
39X-23340-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT
90101-08340-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#58
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#59
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
