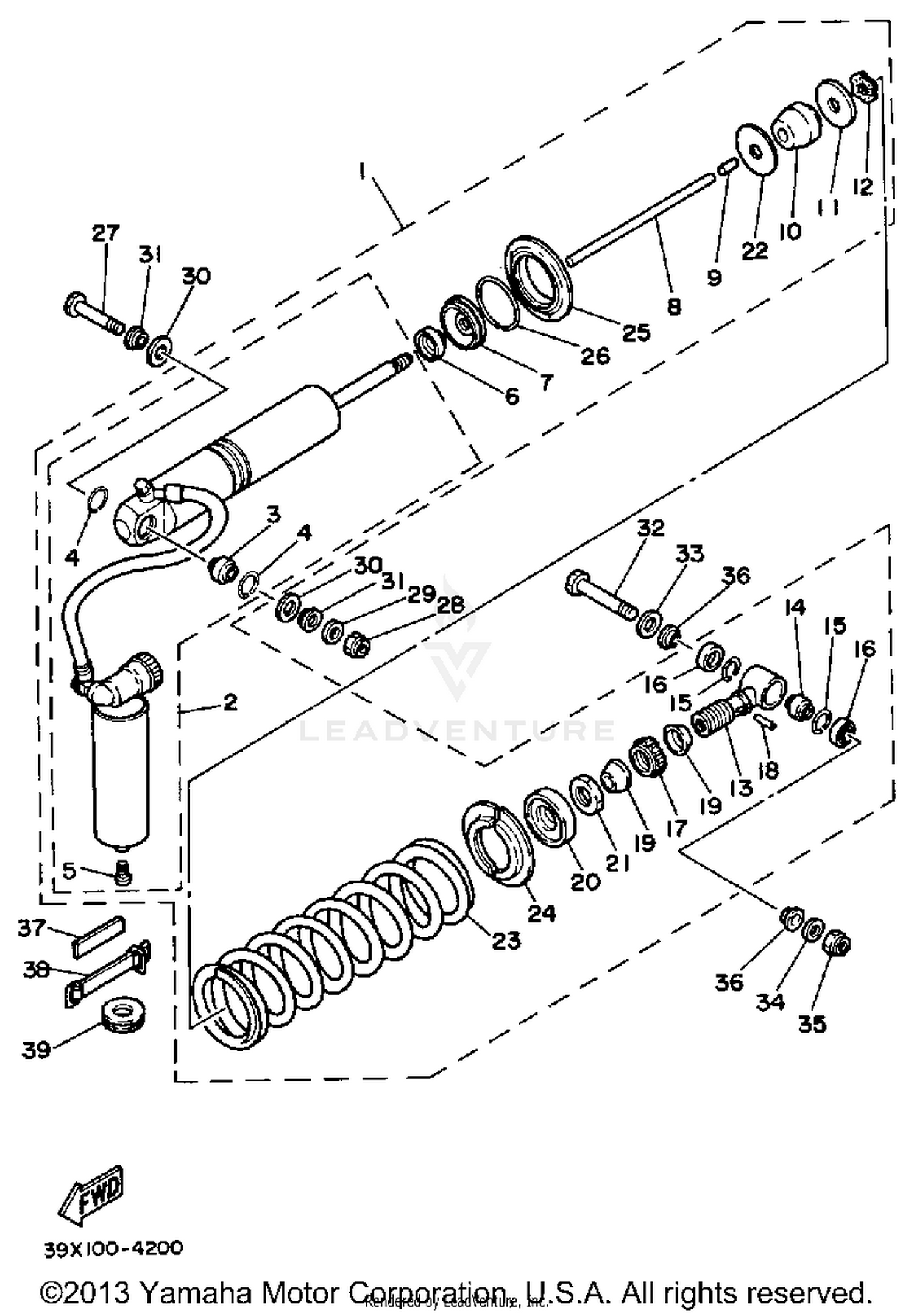

Rear Shocks Yz250l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
39X-22210-00-26
|
$491.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB-ASSEMBLY
43N-22401-00-00
|
$439.99 | ||
|
Unavailable |
|||
|
#3
BEARING (93399-99934-00)
93399-99934-00
Superseded by 93399-999T3-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL,DUST
23X-22475-00-00
Superseded by 23X-22475-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#7
CAP, CASE
26A-22472-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#8
ROD, PUSH
39X-22489-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#9
PIN, DOWEL
93604-21193-00
|
$1.15 | ||
|
Unavailable |
|||
|
#10
BUMP, STOP
39X-22493-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#11
SUPPORT, BUMP STOP
3R4-22228-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#12
WASHER, WAVE
90206-14067-00
|
$3.59 | ||
|
Unavailable |
|||
|
#13
UPPER BRACKET SUB-ASSEMBLY
39X-22409-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#14
BEARING (93399-99934-00)
93399-99934-00
Superseded by 93399-999T3-00
|
$57.99 | ||
|
Unavailable |
|||
|
#15
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Unavailable |
|||
|
#16
OIL SEAL
93104-18077-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, ADJUSTING
5X3-22497-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#18
PIN, DOWEL
93604-26132-00
|
$2.00 | ||
|
Unavailable |
|||
|
#19
COVER
3R4-22221-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
SEAT, SPRING UPPER
23X-22213-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#21
NUT
90170-20320-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOPPER
39X-22482-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#23
SPRING, MXS HARD
39X-22212-20-6W
|
$95.99 | ||
|
Unavailable |
|||
|
#
SPRING, MXS SOFT
39X-22212-10-6W
|
$67.99 | ||
|
Unavailable |
|||
|
#
SPRING, MXS STD
39X-22212-00-6W
|
$95.99 | ||
|
Unavailable |
|||
|
#24
GUIDE, SPRING 1
23X-22214-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#25
SEAT, SPRING LOWER
23X-22223-00-00
|
$10.32 | ||
|
Unavailable |
|||
|
#26
CIRCLIP
93440-51103-00
|
$2.95 | ||
|
Unavailable |
|||
|
#27
BOLT
90109-10704-00
|
$11.49 | ||
|
Unavailable |
|||
|
#28
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-100F7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER
23X-22211-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-127G8-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-10700-00
|
$15.49 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#36
COLLAR
90387-126H8-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
DAMPER, SUB TANK
24X-22261-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOLDER, SUB TANK
24X-22262-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#39
GROMMET
90480-25381-00
|
$5.49 | ||
|
Unavailable |
|||
