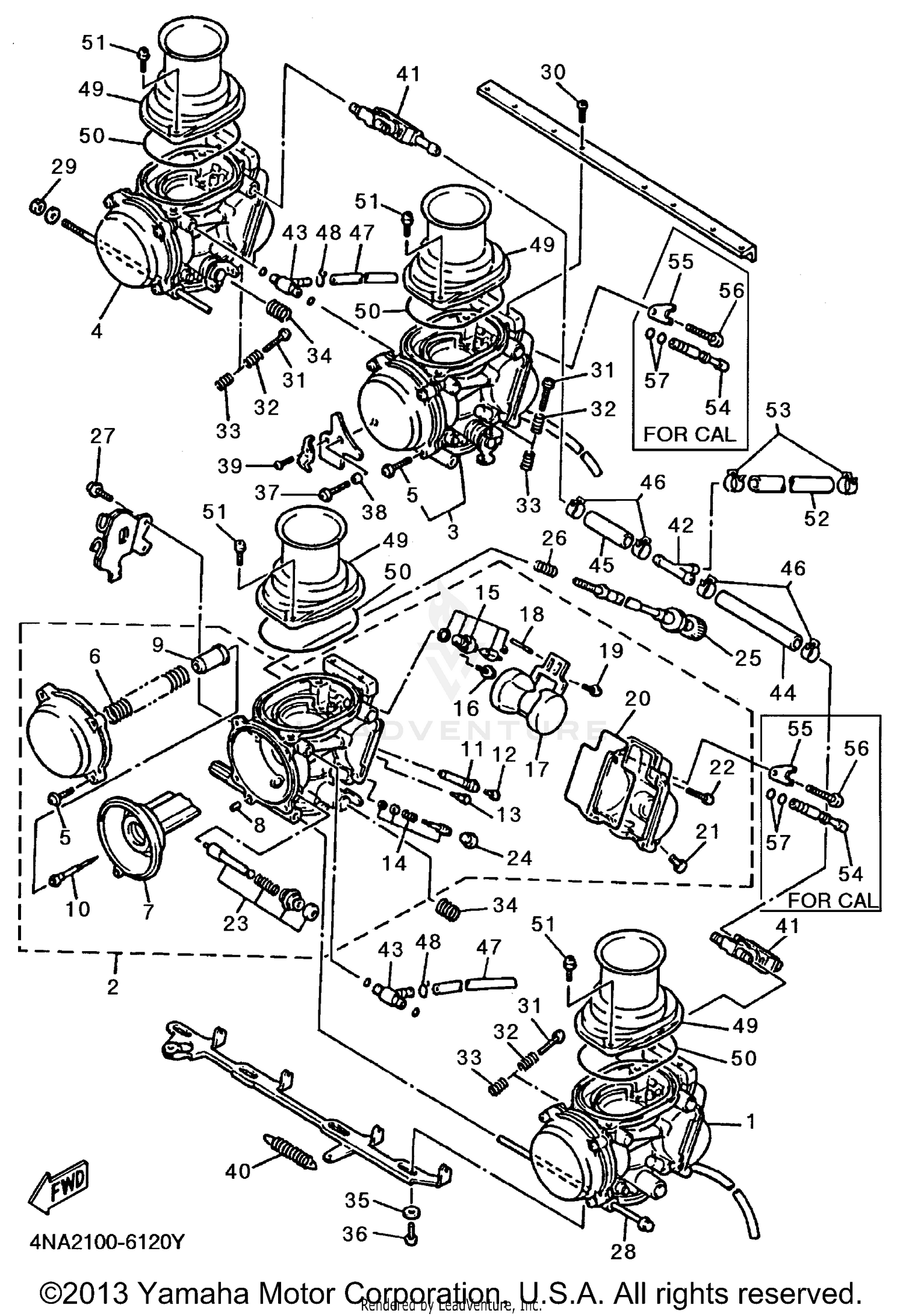

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4NC-14901-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 1
4NA-14901-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CARBURETOR ASSEMBLY 2
4NC-14902-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSY 2
4NA-14902-00-00
Superseded by 4NA-14902-01-00
|
$548.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 3
4NC-14903-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 3
4NA-14903-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR ASSEMBLY 4
4NC-14904-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 4
4NA-14904-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
4JH-14216-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, DIAPHRAGM
4JH-14933-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#7
DIAPHRAGM ASSEMBLY
4JH-14940-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#8
JET
4JH-14515-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT, SPRING
4JH-14936-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE
4NA-14916-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#11
PIPE, MAIN BLEED
4JH-1414G-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#12
JET, MAIN (#118)
3TJ-14943-81-00
|
$5.83 | ||
|
Unavailable |
|||
|
#13
JET (#35)
4JH-14948-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#14
PILOT SCREW SET
4NA-14105-00-00
|
$11.10 | ||
|
Unavailable |
|||
|
#15
NEEDLE VALVE SET
4JH-14107-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
3TJ-14216-40-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLOAT
4JH-14985-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, FLOAT ARM
663-14548-00-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, FLOAT CHAMBER
4JH-14984-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, DRAIN
3TJ-14191-40-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98504-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
STARTER SET
4JH-1410A-00-00
|
$69.91 | ||
|
Unavailable |
|||
|
#24
CAP
4MM-14118-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, THROTTLE
4JH-14922-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, THROTTLE STOP
4JH-14934-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
4JH-14429-00-00
Superseded by 4JH-14429-09-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HOLDING
4JH-14162-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#29
NUT, FLANGE
4JH-14358-00-00
Superseded by 95704-05500-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
4JH-14325-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
4JH-14121-00-00
Superseded by 5JG-14565-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, ADJUST SCREW
7A9-14555-00-00
Superseded by 5JG-14531-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING, THROTTLE STOP
4JH-14133-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING
4JH-14487-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90202-06056-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, GUIDE
3TJ-14245-40-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
4JH-14565-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
4JH-14264-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW
4JH-14567-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#40
SPRING
4JH-14935-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIPE ADAPTOR ASSY
4JH-14350-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIPE T
4JH-13918-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIPE
4JH-14197-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOSE
4JH-14294-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIPE
4JH-14298-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP
4JH-14137-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE
3TJ-14148-40-00
|
$6.99 | ||
|
Unavailable |
|||
|
#48
CLIP
3TJ-14937-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
JOINT, AIR FILTER 1
4JH-1440F-00-00
Superseded by 4JH-1440F-01-00
|
$41.99 | ||
|
Unavailable |
|||
|
#50
O-RING
4JH-14561-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
SCREW, GUIDE
4JH-14245-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
HOSE
90445-142H0-00
Superseded by 90445-146F9-00
|
$17.99 | ||
|
Unavailable |
|||
|
#53
CLIP
90467-13123-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
JOINT
4NC-14568-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#55
PLATE
4NC-14527-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#56
SCREW, PAN HEAD
4NC-14325-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#57
O-RING
4NC-14561-00-00
Superseded by 67F-14398-10-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
