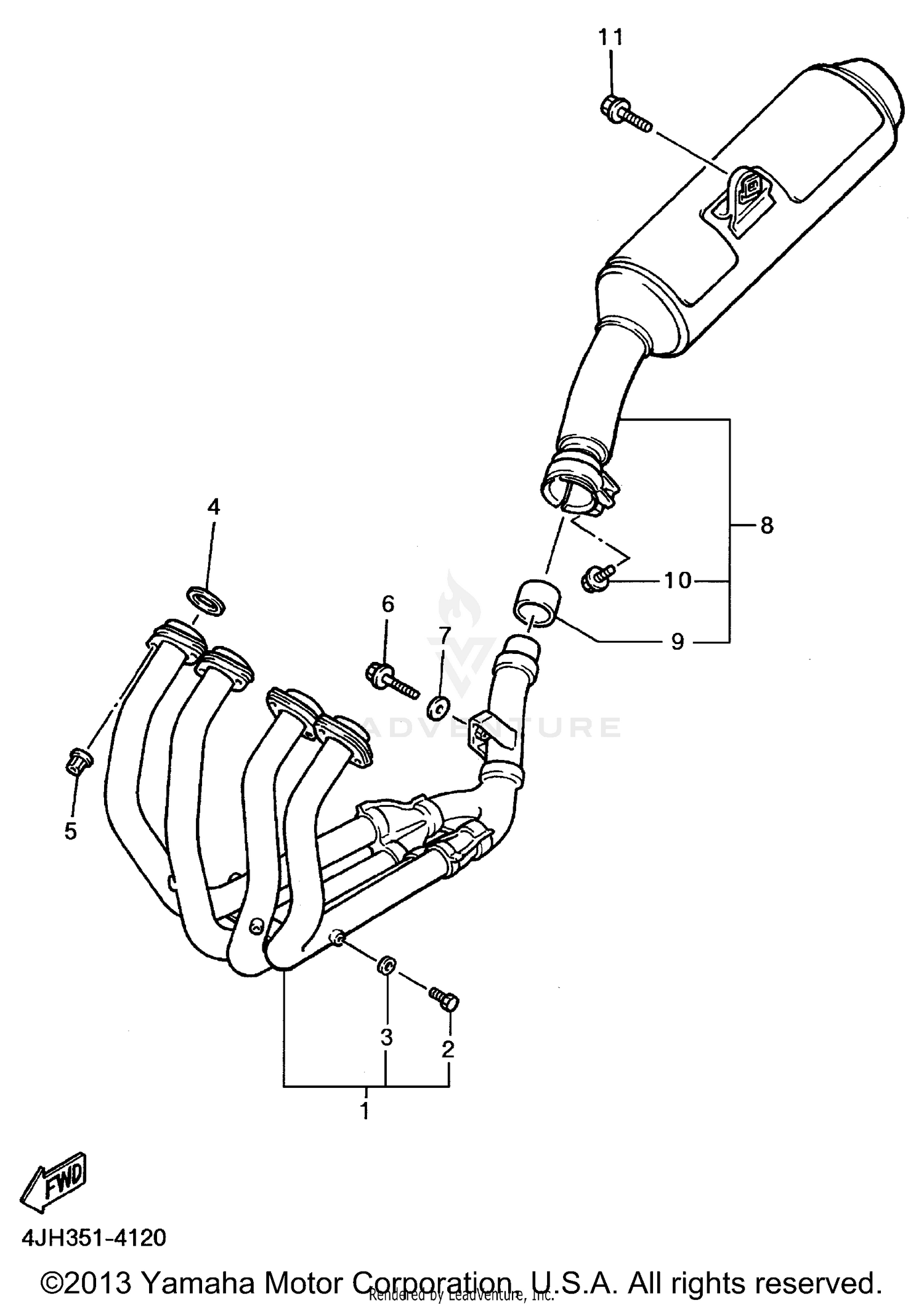

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE COMP.
4JH-14602-00-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90101-06576-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, EXHAUST PIPE
3YF-14613-01-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90179-06668-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95817-08030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
MUFFLER ASSEMBLY 1
4NA-14710-00-00
|
$713.99 | ||
|
Unavailable |
|||
|
#9
GASKET, MUFFLER
3XW-14714-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95817-08025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95817-08020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
