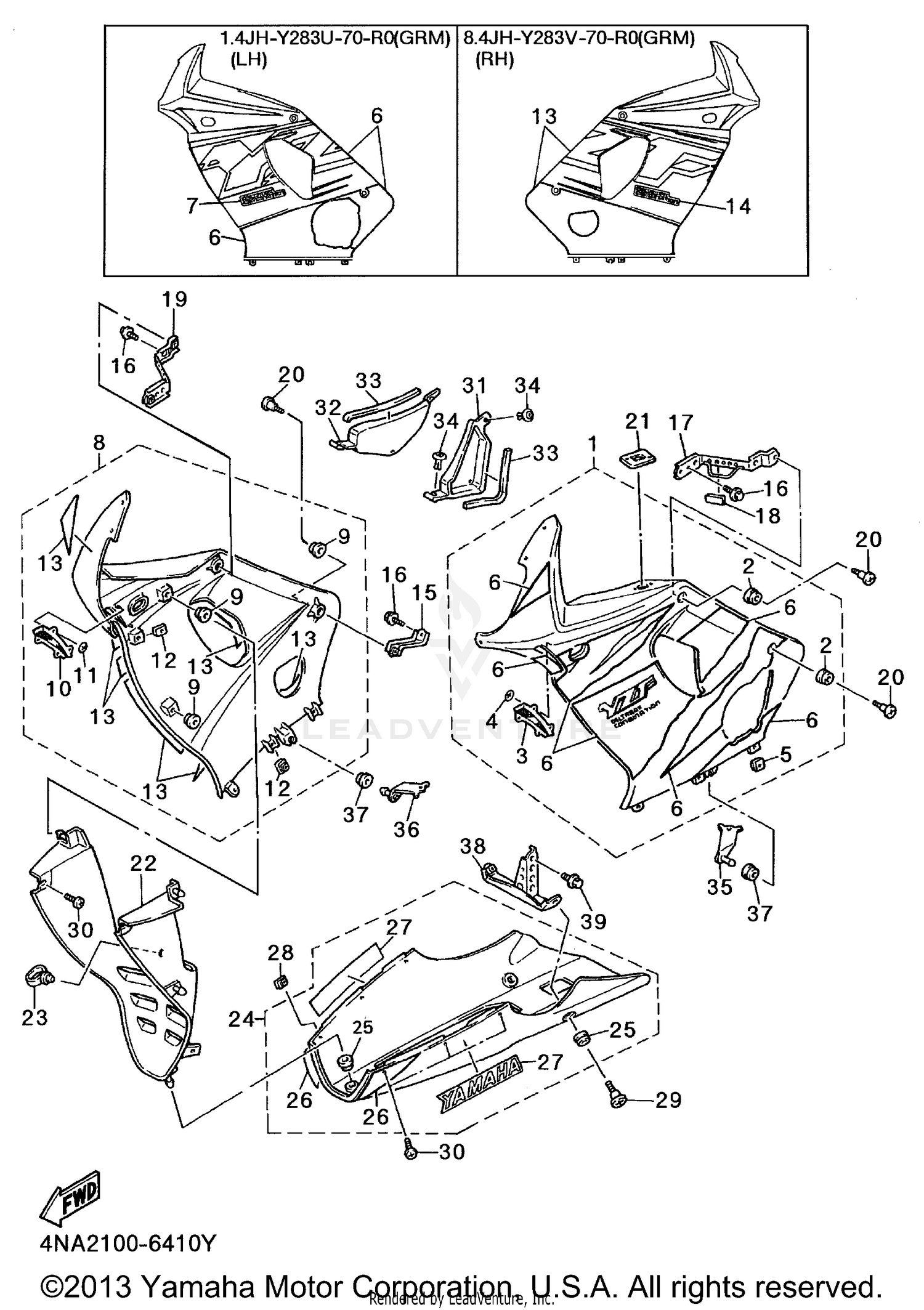

Cowling 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL ASSEMBLY 1
4JH-Y283U-70-R0
|
$713.99 | ||
|
Unavailable |
|||
|
#
PANEL ASSEMBLY 1
4JH-Y283U-60-P1
|
$757.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PANEL 1
4JH-2172A-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#4
NUT, SPRING
90183-03010-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRAPHIC SET, LOWER COVER 1
4NA-28301-20-00
|
$308.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET, LOWER COVER 1
4NA-28301-10-00
|
$401.99 | ||
|
Unavailable |
|||
|
#7
EMBLEM
4JH-28368-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#8
PANEL ASSEMBLY 2
4JH-Y283V-70-R0
|
$774.99 | ||
|
Unavailable |
|||
|
#
PANEL ASSEMBLY 2
4JH-Y283V-60-P1
|
$774.99 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
PANEL 2
4JH-2172F-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#11
NUT, SPRING
90183-03010-00
|
$0.80 | ||
|
Unavailable |
|||
|
#12
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#13
GRAPHIC SET, LOWER COVER 2
4NA-28303-10-00
|
$401.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET, LOWER COVER 2
4NA-28303-20-00
|
$401.99 | ||
|
Unavailable |
|||
|
#14
EMBLEM
4JH-28368-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#15
STAY, SIDE 1
4JH-2832U-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,FLANGE
95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET 5
4JH-2836H-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#18
MOLD, FUEL TANK
1HX-24188-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET 6
4JH-2836J-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#20
SCREW, ROUND HEAD
90150-06036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER
3FV-28365-00-00
|
$28.49 | ||
|
Unavailable |
|||
|
#22
PANEL, INNER 1
4JH-2836K-00-P0
|
$480.99 | ||
|
Unavailable |
|||
|
#
PANEL, INNER 1
4JH-2836K-00-R0
|
$480.99 | ||
|
Unavailable |
|||
|
#23
HOLDER, CABLE
1A8-21518-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER ASSEMBLY, UNDER
4JH-Y2808-60-P4
|
$391.99 | ||
|
Unavailable |
|||
|
#
COVER ASSEMBLY, UNDER
4JH-Y2808-40-P3
|
$523.99 | ||
|
Unavailable |
|||
|
#25
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
GRAPHIC SET, LOWER COVER 3
4JH-28304-20-00
|
$33.99 | ||
|
Unavailable |
|||
|
#27
EMBLEM, YAMAHA
99236-00280-00
Superseded by 99246-00280-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#29
SCREW, ROUND HEAD
90150-06036-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
SCREW, BINDING
90154-05059-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE 1
4JH-28396-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#32
PLATE 2
4JH-28397-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#33
SEAL
4DN-21669-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
RIVET
90269-07036-00
Superseded by 90269-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET 3
4JH-2836F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET 4
4JH-2836G-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
GROMMET
90480-12320-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
STAY, SUPPORT 1
4JH-2831T-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT,FLANGE
95817-06010-00
|
$4.45 | ||
|
Unavailable |
|||
