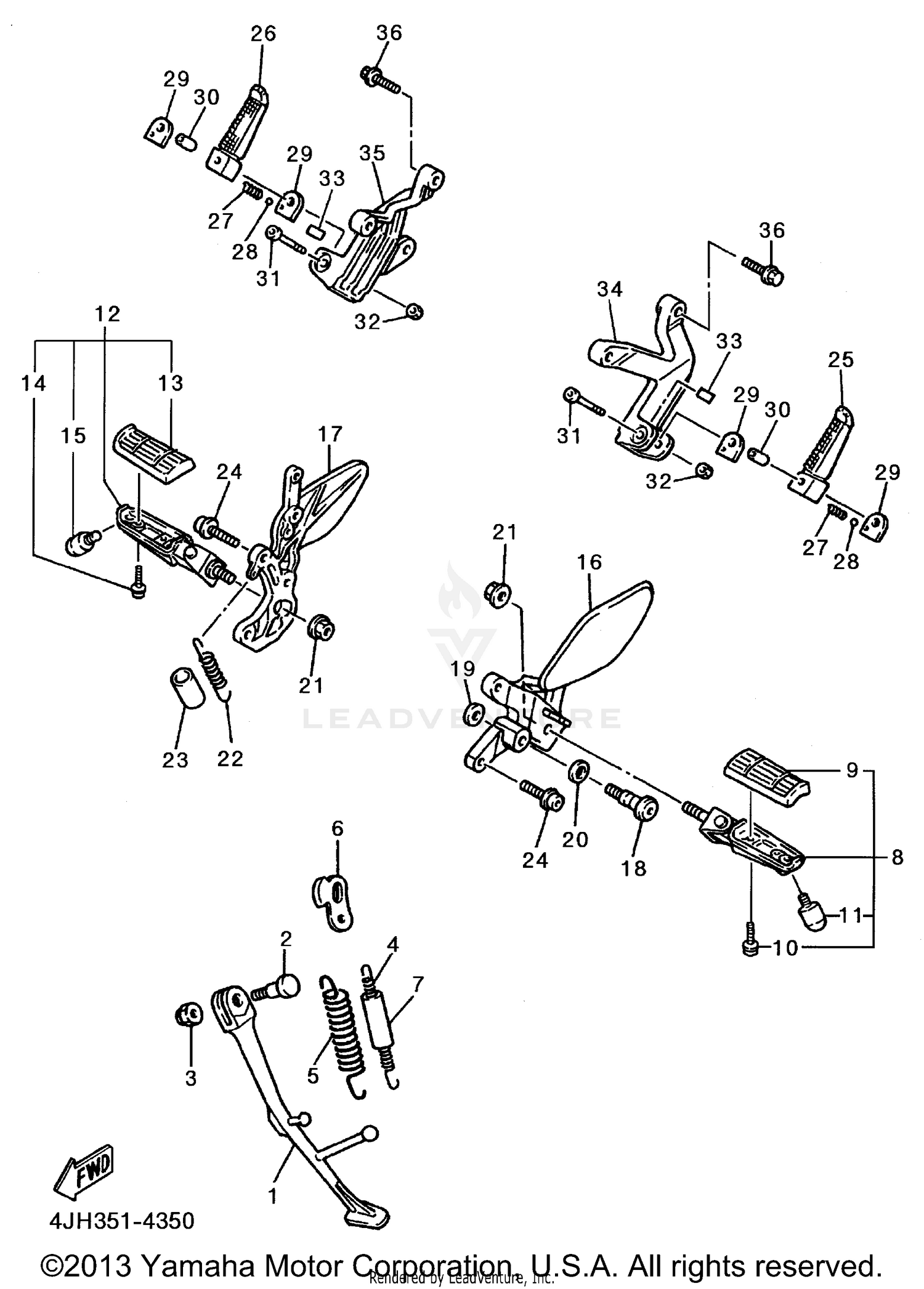

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
4FM-27311-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-104E6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-18224-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-26225-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINK, SIDE STAND
4FM-27315-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, SIDE STAND
1TX-27351-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRONT FOOTREST ASSY (LEFT)
4JH-27410-00-00
Superseded by 4JH-27410-01-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, FOOTREST
3YX-27413-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
90159-05122-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
3HE-27435-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT FOOTREST ASSY (RIGHT)
4JH-27420-00-00
Superseded by 4JH-27420-01-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, FOOTREST
3YX-27413-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
90159-05122-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
BOLT
3HE-27435-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#16
BRACKET 2
4FM-27442-00-00
Superseded by 4FM-27442-02-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET 3
4FM-27443-00-00
Superseded by 4FM-27443-02-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
4BP-27434-01-00
Superseded by 4BP-27434-11-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-127J6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TENSION
90506-20377-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE
90446-17346-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
91317-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FOOTREST, REAR 1
3XV-27431-00-00
Superseded by 3XV-27431-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FOOTREST, REAR 2
3XV-27441-10-00
Superseded by 3XV-27441-11-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPECIAL
1HX-27437-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-064H8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (SMALL HEAD)
95024-06045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, U FLANGE
95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLATE, DAMPER
1HX-27415-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BRACKET 4
4JH-2741L-02-00
Superseded by 4JH-2741L-03-00
|
$94.99 | ||
|
Unavailable |
|||
|
#35
BRACKET 5
4JH-2742L-02-00
Superseded by 4JH-2742L-10-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
