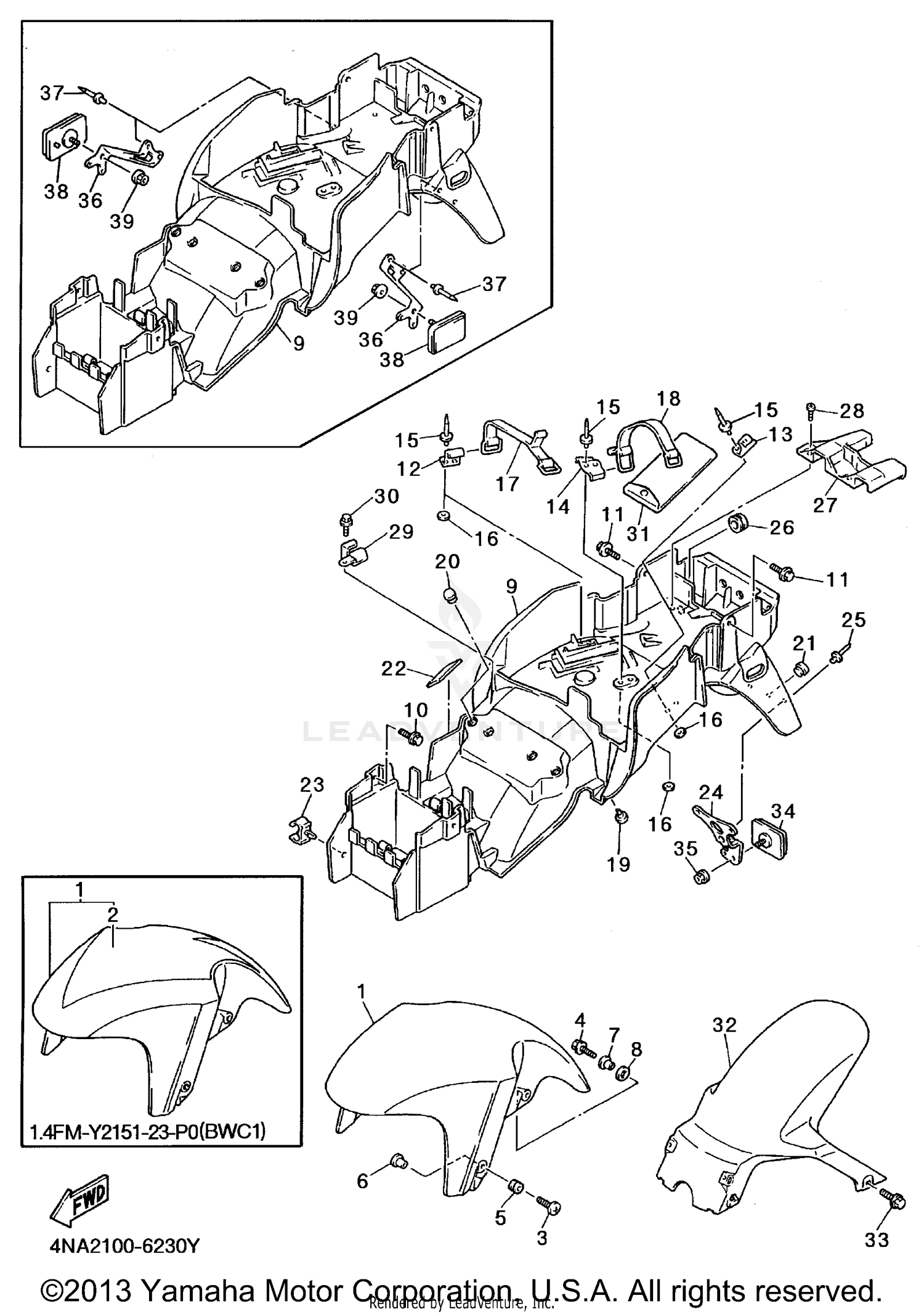

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
4FM-Y2151-23-P0
|
$289.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
4FM-21511-03-R0
|
$152.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC 1
4JH-21569-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#3
SCREW, BINDING
90154-06061-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-12072-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-087L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
4FM-28372-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FENDER, REAR (4FM-21611-13-00)
4FM-21611-13-00
Superseded by 4FM-21611-03-00
|
$150.99 | ||
|
Unavailable |
|||
|
#10
BOLT, WITH WASHER
90119-06118-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06205-00
Superseded by 90119-06079-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOOK, TOOL BAND
3VD-21366-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOOK, TOOL BAND
1M1-21366-00-00
|
$2.15 | ||
|
Unavailable |
|||
|
#14
BRACKET 3
4JH-2161A-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#15
RIVET, BLIND
90267-40076-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-04018-00
Superseded by 90201-044H9-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, BATTERY
4J2-82131-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND
36X-2811G-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, SEAT
35T-24724-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG
90338-10132-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG
4G0-21639-00-00
Superseded by 90338-07018-00
|
$6.99 | ||
|
Unavailable |
|||
|
#22
DAMPER, LOCATING 1
3XV-21778-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-09130-00
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, REFLECTOR 1
4FM-85132-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#25
RIVET, BLIND
90267-40029-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-10258-00
|
$4.35 | ||
|
Unavailable |
|||
|
#27
COVER, REAR FENDER 1
4JH-2163A-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#28
SCREW, TAPPING
97707-60016-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOOK, TOOL BAND
4JH-21366-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.70 | ||
|
Unavailable |
|||
|
#31
TOOL KIT
1WG-28100-01-00
Superseded by 1WG-W2810-00-00
|
$200.99 | ||
|
Unavailable |
|||
|
#32
REAR FENDER COMP.
4JH-21650-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, WITH WASHER
90119-06194-00
Superseded by 90119-06117-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#34
REAR REFLECTOR ASSY
3G1-85130-01-00
Superseded by 4KM-85130-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, FLANGE
95707-05500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET, REAR STAY
4FM-21688-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#37
RIVET, BLIND
90267-40029-00
|
$7.99 | ||
|
Unavailable |
|||
|
#38
REAR REFLECTOR ASSY
3G1-85130-01-00
Superseded by 4KM-85130-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#39
NUT, FLANGE
95707-05500-00
|
$7.99 | ||
|
Unavailable |
|||
