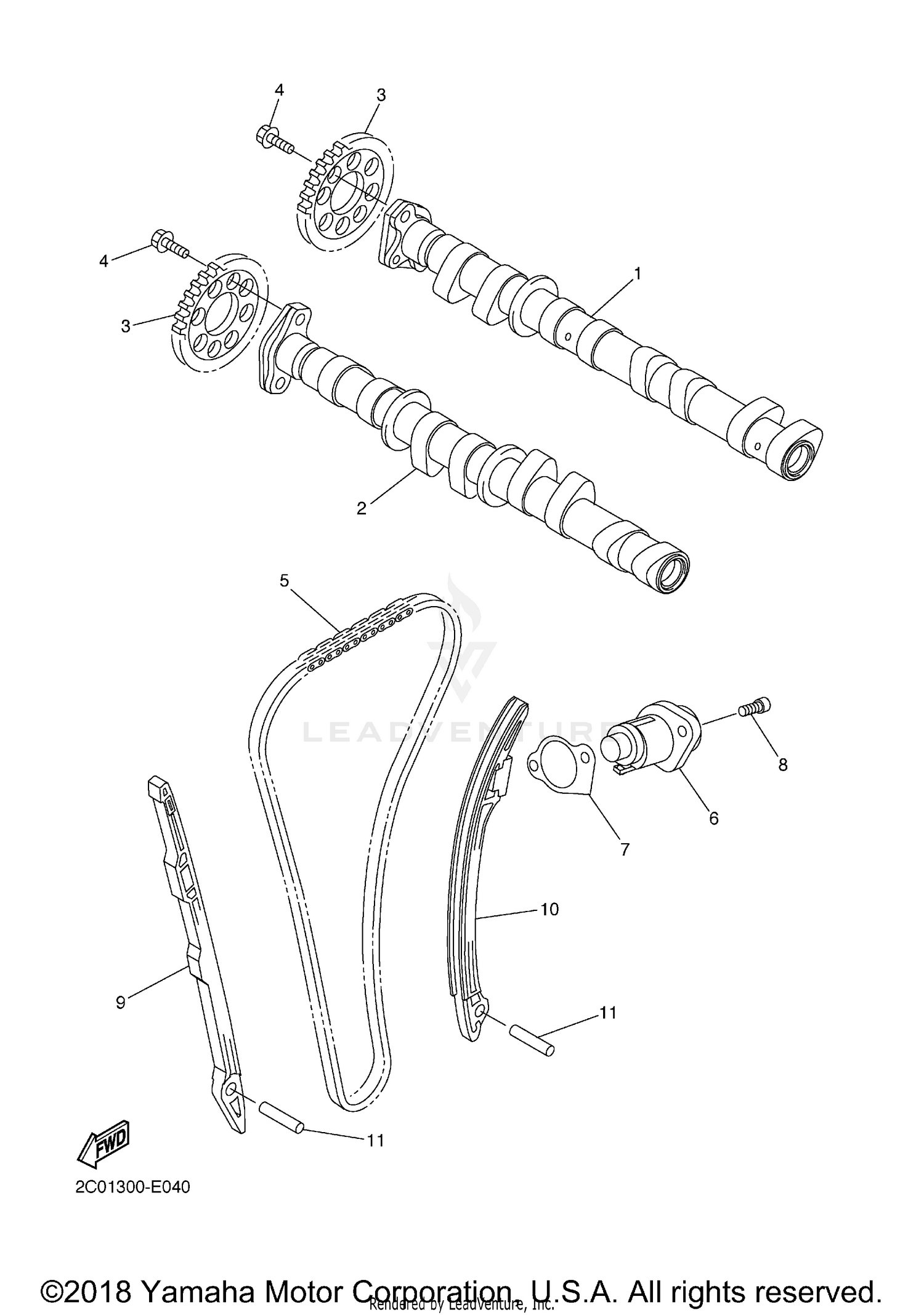

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
13S-12170-00-00
Superseded by 13S-12170-01-00
|
$407.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY 2
13S-12180-00-00
Superseded by 13S-12180-01-00
|
$407.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, CAM CHAIN
2C0-12176-00-00
Superseded by BU3-12176-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
90105-07004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN
94591-64118-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER ASSY, CAM CHAIN
13S-12210-00-00
Superseded by 13S-12210-02-00
|
$193.99 | ||
|
Unavailable |
|||
|
#7
GASKET, TENSIONER CASE
2C0-12213-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-06106-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, CHAIN 1
2C0-12251-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, CHAIN 2
13S-12252-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
93607-44002-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
