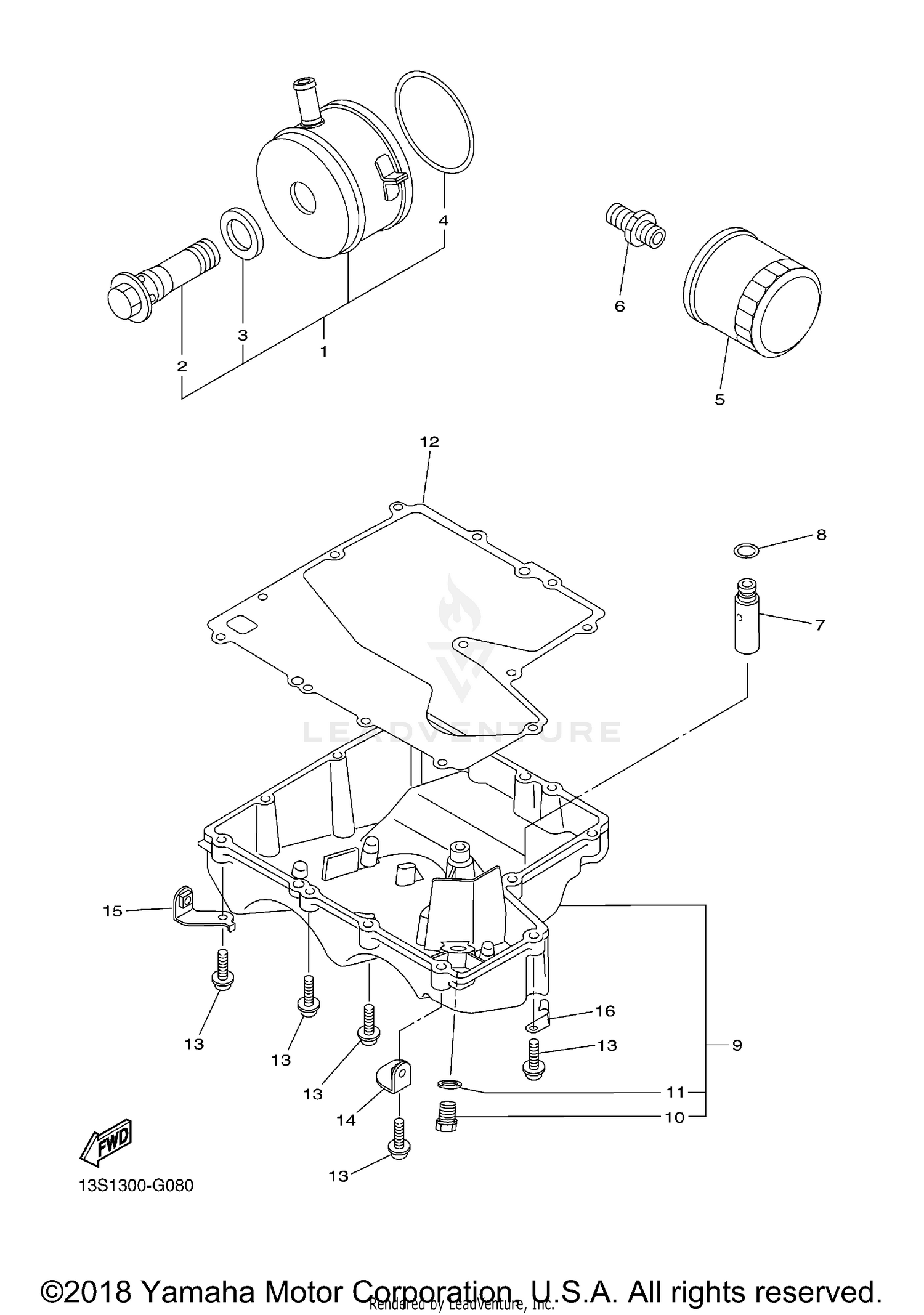

Oil Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL COOLER ASSY
13S-13470-00-00
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, UNION
5EB-12822-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
5EB-13475-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
5JW-13473-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ELEMENT ASSY, OIL CLEANER
5GH-13440-20-00
Superseded by 5GH-13440-80-00
|
$14.99 | ||
|
Unavailable |
|||
|
#6
BOLT, UNION
90401-20145-00
Superseded by 90401-20007-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RELIEF VALVE ASSY
2C0-13490-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STRAINER COVER ASSY
2C0-13417-00-00
Superseded by 2C0-13400-00-00
|
$232.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, STRAINER COVER
2C0-13414-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-06015-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET 1
13S-2836A-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET 2
13S-2836E-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90465-10040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
