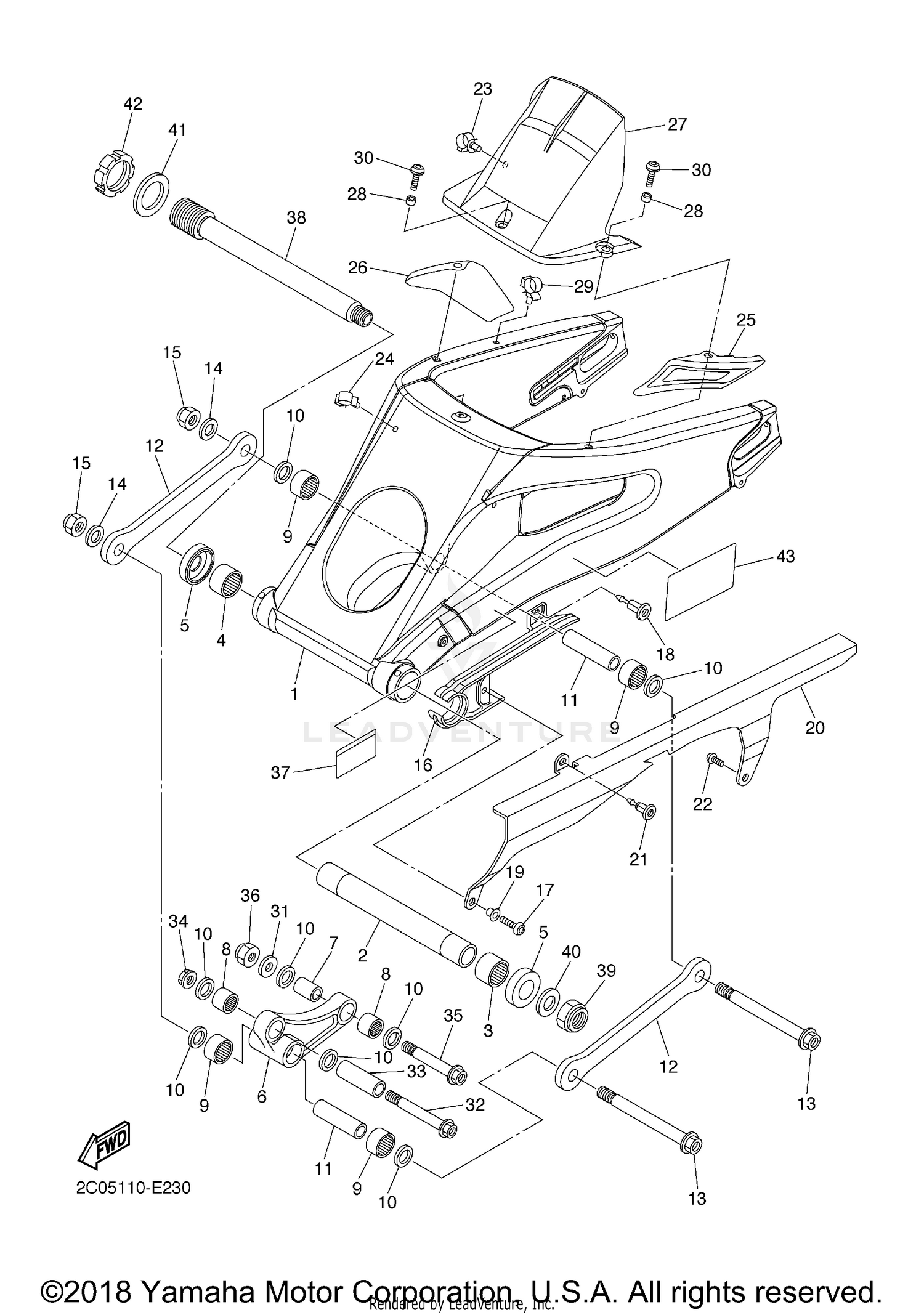

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
13S-22110-00-00
|
$1,538.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
2C0-22184-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93317-330A0-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93317-330A1-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
2C0-22128-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, RELAY
2C0-2217A-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-127W0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93315-31759-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93315-31758-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-126Y1-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM 1
2C0-2217M-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-12010-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92902-12600-00
Superseded by 92907-12600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, GUARD
2C0-22151-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92012-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
RIVET
90269-07008-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-062X0-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CASE, CHAIN
2C0-22311-00-00
Superseded by 2C0-22311-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#21
RIVET
90269-07007-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-06102-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-16012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-16011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER ASSY 1
2C0-228A0-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER ASSY 2
2C0-228B0-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
RR. FENDER COVER SET
2C0-21650-00-00
Superseded by 99999-04338-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-06022-00
Superseded by 90387-06106-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90464-16012-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92902-12600-00
Superseded by 92907-12600-00
|
$1.60 | ||
|
Unavailable |
|||
|
#32
BOLT
90109-10017-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-1012B-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
90109-12011-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SELF-LOCKING
90185-12119-00
|
$10.49 | ||
|
Unavailable |
|||
|
#37
LABEL, TIRE
5VY-21668-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SHAFT, PIVOT
2C0-22141-10-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, SELF-LOCKING
90185-22002-00
Superseded by 90185-22009-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-22014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLATE
90201-33014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT
2C0-22252-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLATE, EPA (NON CALIFORNIA)
13S-2179W-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLATE, EPA (CALIFORNIA)
13S-2176P-00-00
|
$4.40 | ||
|
Unavailable |
|||
