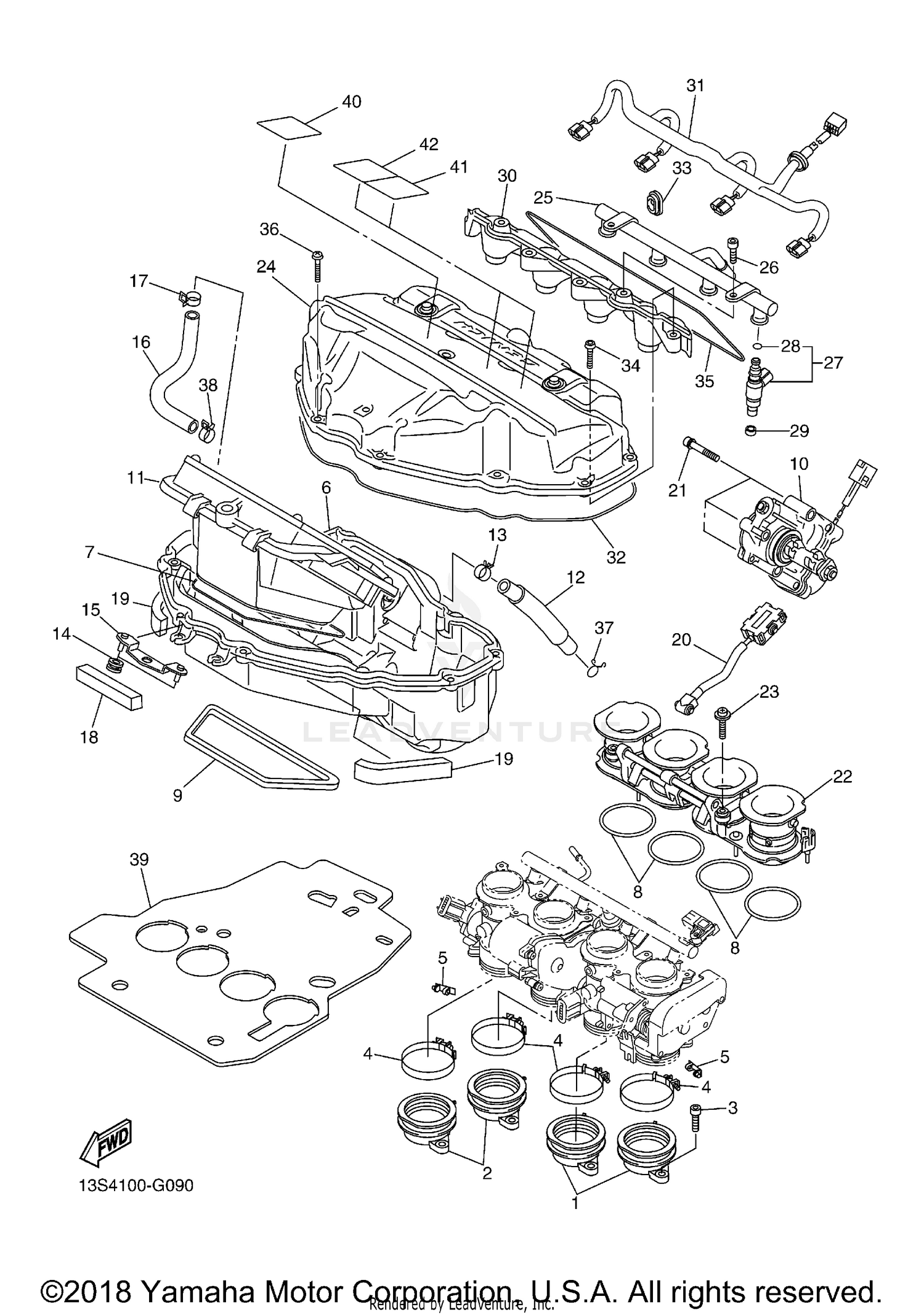

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
2C0-13586-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, CARBURETOR 2
2C0-13596-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE CLAMP ASSY
90450-56007-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER 1
2C0-13881-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE, AIR CLEANER 1
13S-14411-00-00
Superseded by 13S-14411-01-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL
13S-14462-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL
13S-14457-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL
2C0-14467-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEARED MOTOR COMP. 2
13S-85870-00-00
Superseded by 13S-85870-01-00
|
$365.99 | ||
|
Unavailable |
|||
|
#11
ELEMENT ASSY, AIR CLEANER
13S-14450-10-00
Superseded by 13S-14450-11-00
|
$59.99 | ||
|
Unavailable |
|||
|
#12
PIPE, BREATHER
13S-15373-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-15001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-08264-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY 1
13S-14498-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, BEND 2
13S-14882-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#17
CLIP
90467-180A3-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER
2C0-14409-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER 1
2C0-14425-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT ASSY
13S-14490-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-05047-00
Superseded by 90110-05045-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT ASSY
13S-1440B-00-00
Superseded by 13S-1440B-01-00
|
$443.99 | ||
|
Unavailable |
|||
|
#23
SCREW, WITH WASHER
90159-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CASE, AIR CLEANER 2
13S-14421-00-00
Superseded by 13S-14421-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE
13S-13938-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, BUTTON HEAD
90111-06064-00
Superseded by 92012-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
INJECTOR
13S-13761-00-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
5PS-14147-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
90430-09002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAP, INJECTOR
13S-13767-00-00
Superseded by 13S-13767-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WIRE, SUB-LEAD
13S-82318-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAL
2C0-14452-00-00
Superseded by 1VJ-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GROMMET
13S-14445-00-00
Superseded by 13S-14445-01-00
|
$3.30 | ||
|
Unavailable |
|||
|
#34
BOLT, BUTTON HEAD
92012-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SEAL
13S-1446R-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, BIND
98902-05020-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
90467-180A3-00
|
$1.65 | ||
|
Unavailable |
|||
|
#39
PROTECTOR, HEAT
2C0-12682-00-00
Superseded by 2C0-12682-01-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLATE, ROUTING
5VX-21684-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE, ROUTING 2
5PW-21686-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
LABEL
13S-2178A-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
