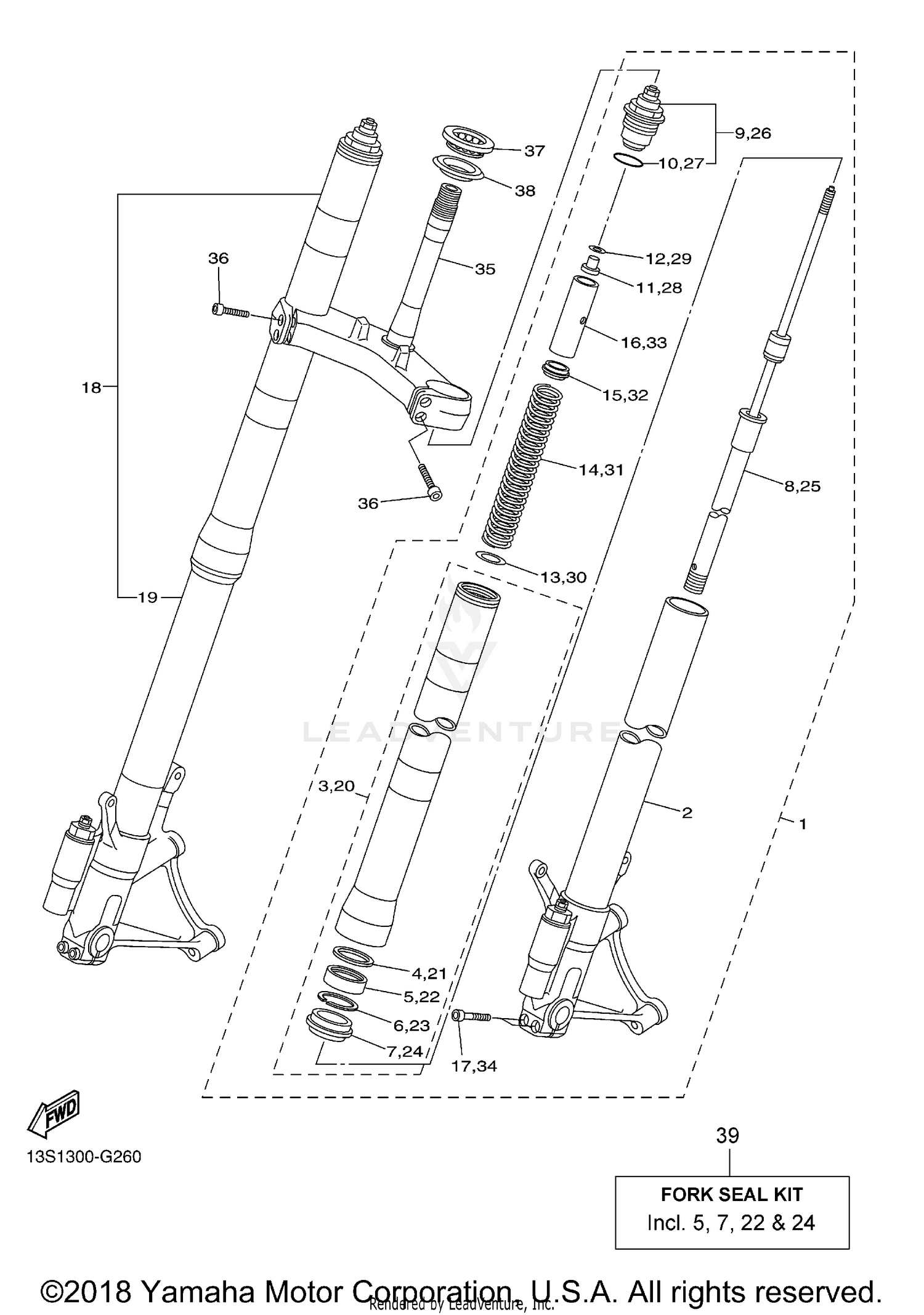

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
13S-23102-00-00
Superseded by 13S-23102-02-00
|
$932.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INNER TUBE COMP. 1
13S-23110-00-00
Superseded by 13S-23110-03-00
|
$455.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OUTER TUBE COMP.
13S-23106-00-00
|
$520.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, COVER UPPER
3VD-23115-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
5VU-23145-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, SNAP
3VD-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, DUST
3VD-23144-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER COMP., FRONT FORK
13S-23170-00-00
|
$315.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, CAP
13S-23111-00-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-41N50-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPECIAL
13S-23393-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, VALVE 2
13S-2332N-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAT, SPRING LOWER
2C0-23143-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FRONT FORK
13S-23141-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAT, SPRING UPPER
13S-23142-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
13S-23118-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT FORK ASSY (R.H)
13S-23103-00-00
Superseded by 13S-23103-02-00
|
$932.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
INNER TUBE COMP. 2
13S-23120-00-00
Superseded by 13S-23120-03-00
|
$567.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OUTER TUBE COMP.
13S-23106-00-00
|
$520.99 | ||
|
Unavailable |
|||
|
#21
GUIDE, COVER UPPER
3VD-23115-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
5VU-23145-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#23
RING, SNAP
3VD-23156-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
SEAL, DUST
3VD-23144-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#25
CYLINDER COMP., FRONT FORK
13S-23170-00-00
|
$315.99 | ||
|
Unavailable |
|||
|
#26
BOLT, CAP
13S-23111-00-00
|
$269.99 | ||
|
Unavailable |
|||
|
#27
O-RING
93210-41N50-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
NUT, SPECIAL
13S-23393-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#29
PLATE, VALVE 2
13S-2332N-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
SEAT, SPRING LOWER
2C0-23143-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
SPRING, FRONT FORK
13S-23141-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#32
SEAT, SPRING UPPER
13S-23142-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
SPACER
13S-23118-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
UNDER BRACKET COMP.
13S-23340-00-00
Superseded by 2CX-23340-00-00
|
$517.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93399-99957-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SEAL, STEERING
3FV-23462-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
FORK SEAL KIT
5VU-W003B-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
