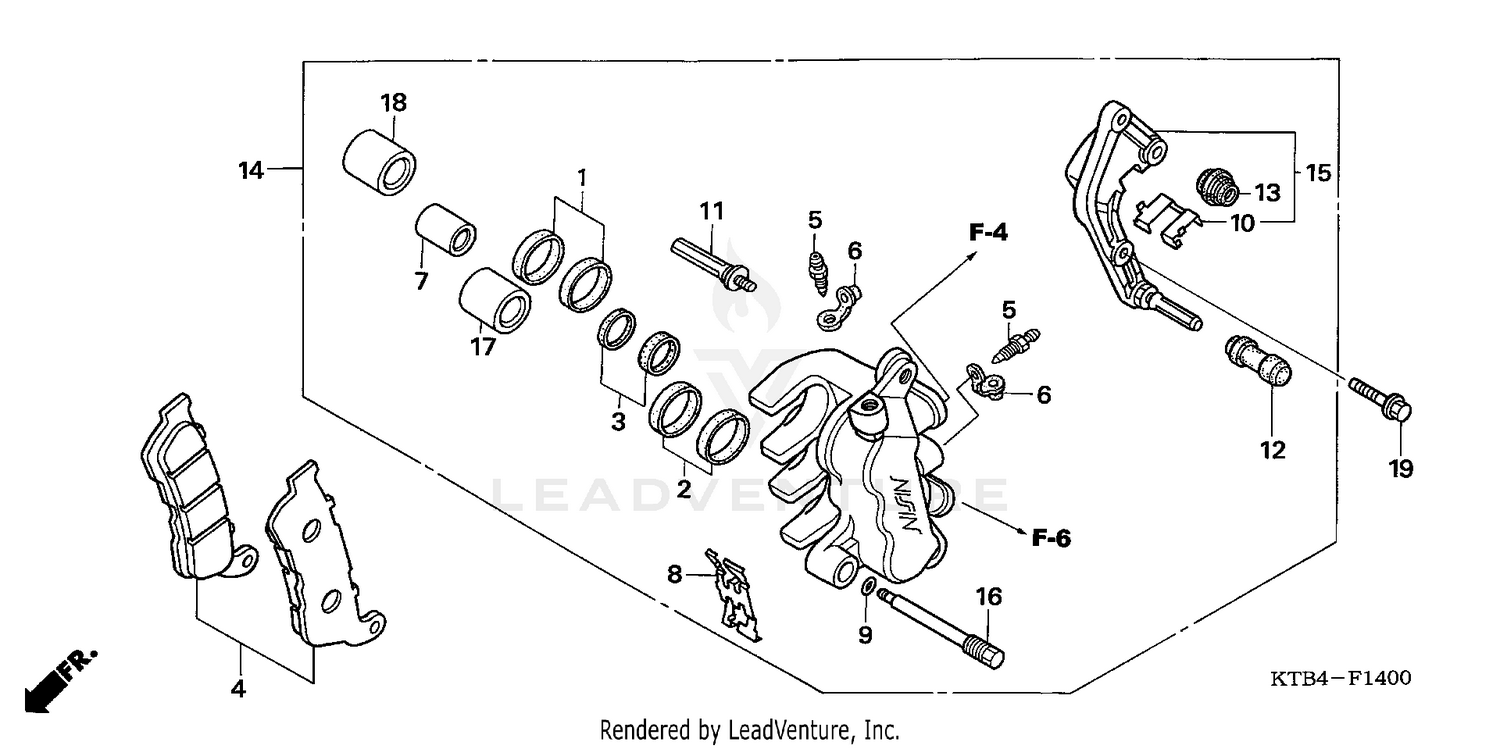

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06431-MA3-405
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL SET, PISTON
06451-GE2-405
|
$13.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
06451-MZ2-405
|
$14.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD SET, FR.
06455-KSV-J03
Superseded by 06455-KSV-J04
|
$65.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, BLEEDER
43353-461-771
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON A (22X27)
45107-MAJ-G41
|
$42.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, PAD
45108-MBT-D51
Superseded by 45108-MBT-D52
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, STOPPER
45111-MAJ-G41
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER, BRACKET
45112-MZ2-006
|
$10.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT A, PIN
45131-ML7-921
|
$17.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT B
45133-MA3-006
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
CALIPER SUB-ASSY.
45150-KTB-006
Superseded by 45150-KTB-016
|
$467.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET SUB-ASSY., L. FR.
45190-KSV-J01
|
$103.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, HANGER
45215-MBT-D51
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON B (25X35)
45217-MAJ-G41
|
$42.81 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON B (27X35)
45218-MAJ-G41
|
$42.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X32)
90131-KBV-003
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
