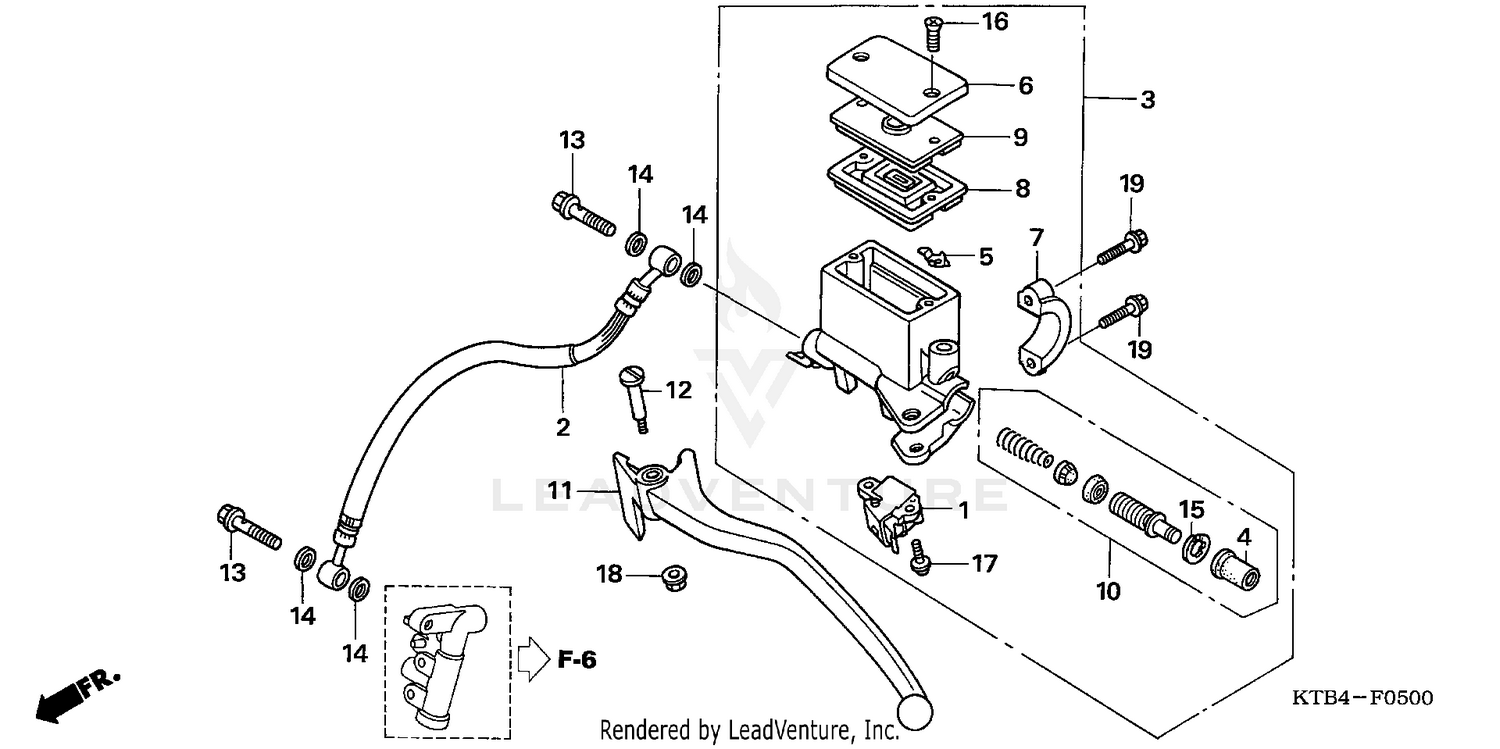

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP (RR.)
35340-KFG-000
Superseded by 35340-KFG-003
|
$32.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE A, RR. BRAKE
43311-KTB-004
|
$32.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER SUB-ASSY., RR. BRAKE
43510-KTB-771
|
$249.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
45504-410-003
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR
45512-MA6-006
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, MASTER CYLINDER
45513-HA2-006
|
$31.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, MASTER CYLINDER
45517-166-006
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM
45520-MG7-006
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DIAPHRAGM
45521-HA2-006
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
MASTER CYLINDER SET
45530-MA4-671
|
$55.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, L. HANDLEBAR (COO)
53178-MCT-006
Superseded by 53178-MGF-305
|
$25.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HANDLE LEVER
90114-KT7-006
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, OIL (10X22)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
90651-MA5-671
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.90 | ||
|
Unavailable |
|||
|
#17
SCREW-WASHER (4X12)
93893-04012-07
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.35 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
