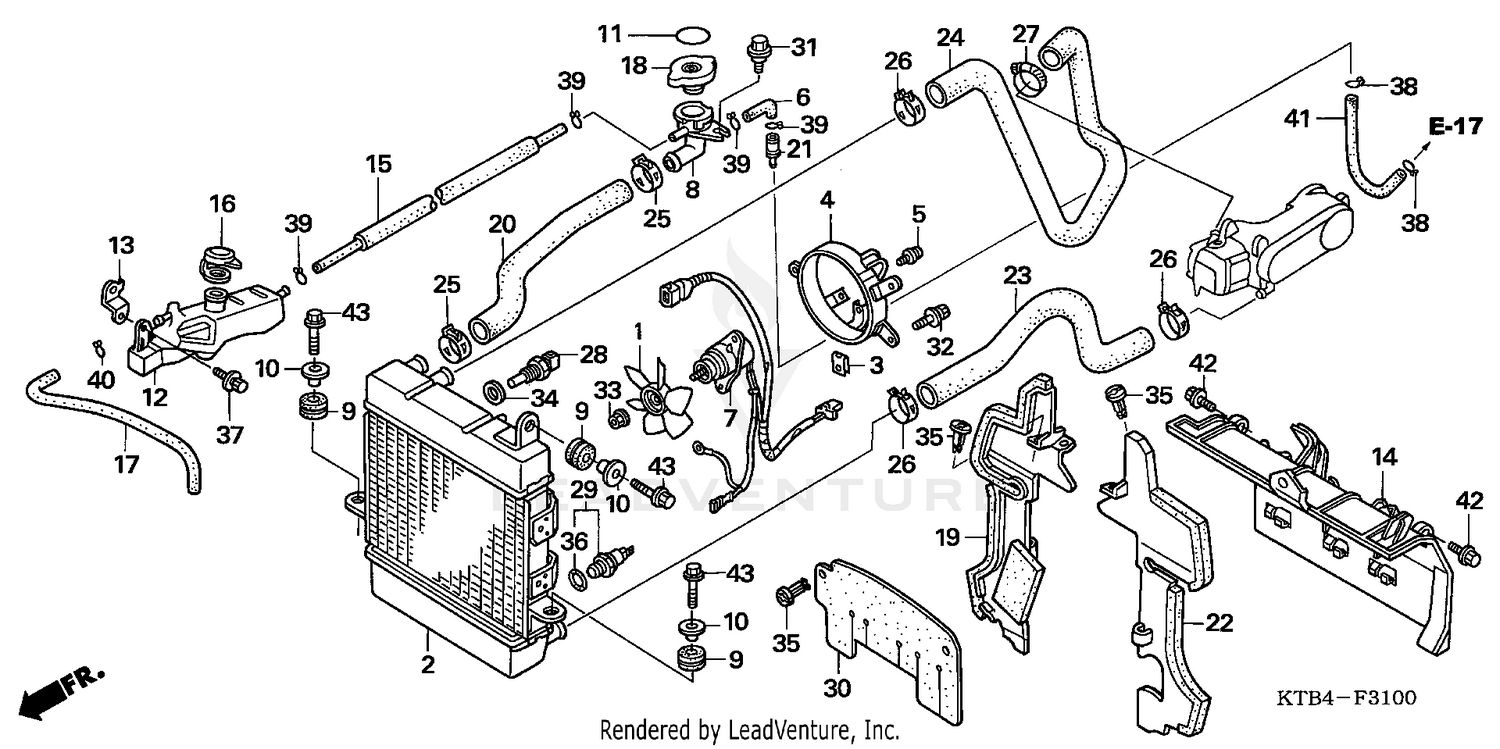

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FAN, COOLING
19009-KT7-000
|
$63.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR
19010-KTB-003
|
$349.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SETTING
19014-KEA-003
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHROUD
19015-KFG-J01
|
$52.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN (4X8.5)
19016-KEA-003
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, CARBURETOR FILLER
19017-KFG-000
Superseded by 19017-KFG-D10
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOTOR, COOLING FAN
19030-KFG-J01
|
$181.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
NECK, FILLER
19039-KM1-004
|
$32.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, RADIATOR CAP
19055-MZ3-300
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK, RESERVE
19101-KFG-000
|
$40.54 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, RESERVE TANK
19102-KFG-000
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUCT B, AIR
19103-KFG-000
|
$43.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, FILLER-RESERVE TANK
19104-KTB-000
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, RESERVE TANK
19104-MB0-700
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, RESERVE TANK
19105-KTB-010
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, RADIATOR FILLER
19111-KE1-013
|
$39.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUCT A, R. AIR
19120-KTB-770
|
$31.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, FILLER
19126-KFG-000
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT, TUBE
19126-KM1-010
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUCT A, L. AIR
19130-KTB-770
|
$30.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE A, WATER
19501-KFG-J00
|
$20.26 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE B, WATER
19503-KFG-J00
|
$31.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP, HOSE (22-29MM)
19513-MF5-000
Superseded by 19517-ML7-691
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP, HOSE (22-29MM)
19513-MM4-003
Superseded by 19517-ML7-691
|
$13.47 | ||
|
Unavailable |
|||
|
#25
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$13.47 | ||
|
Unavailable |
|||
|
#26
CLIP B, HOSE
19514-ME9-003
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$13.47 | ||
|
Unavailable |
|||
|
#28
SENSOR, WATER TEMPERATURE
36151-KFG-003
|
$45.07 | ||
|
Available to order. Add to View Price |
|||
|
#29
SWITCH ASSY., THERMO
37760-MT2-003
|
$83.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
GUIDE, CENTER AIR
64311-KTB-770
|
$13.01 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6MM)
90111-162-000
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT-WASHER (6X16)
90120-KCR-003
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, TOOTHED (3MM)
90308-KM3-003
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPECIAL (12MM)
90454-MC7-000
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP, TRIM
90683-GAZ-003
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING (13.5X1.4)
91307-PH7-660
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.05 | ||
|
Unavailable |
|||
|
#37
BOLT-WASHER (6X12)
93404-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP, TUBE (B7)
95002-02070
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP, TUBE (B12)
95002-02120
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP, TUBE (C11)
95002-70000
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#41
BULK HOSE, VACUUM (3.5X1000) (3.5X150)
95005-35001-20M
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X25)
95701-06025-08
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
