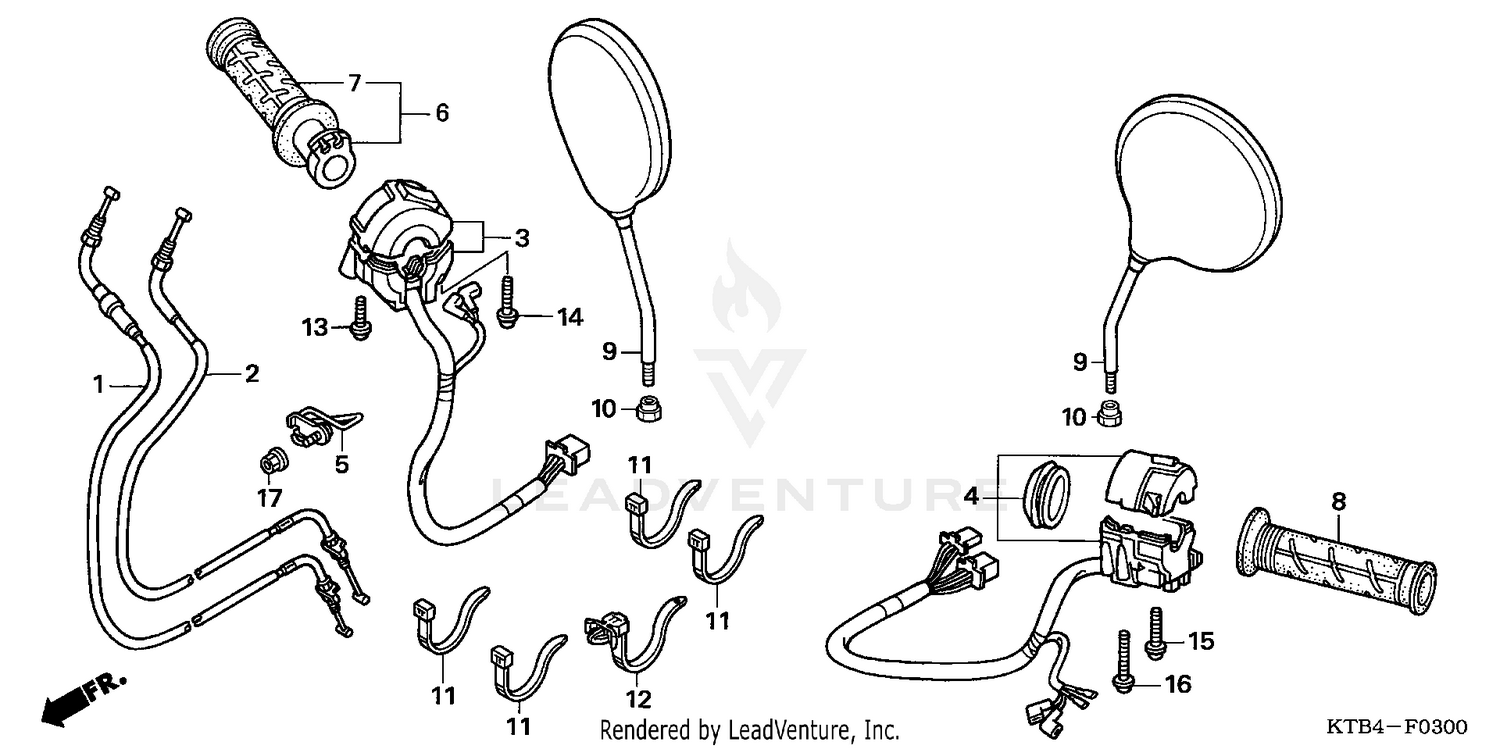

Switch + Cable + Mirror Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE A, THROTTLE
17910-KTB-010
|
$28.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE B, THROTTLE
17920-KTB-770
|
$27.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH, STARTER STOP
35130-KTB-771
Superseded by 35130-KTB-773
|
$83.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., TURN SIGNAL
35200-KTB-771
|
$79.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, CABLE & HOSE
50290-KTB-000
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP, THROTTLE
53140-KPB-000
|
$37.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP, R. HANDLE
53165-MY9-890
|
$15.12 | ||
|
Unavailable |
|||
|
#8
GRIP, L. HANDLE
53166-MY9-890
|
$21.09 | ||
|
Unavailable |
|||
|
#9
MIRROR, BACK
88210-MZ1-831
|
$77.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, LOCK
90314-MB6-000
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, WIRE
90650-KW3-000
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
STRAP, CABLE (105MM) (BLACK)
90672-SB2-003
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-WASHER (5X20)
93892-05020-07
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-WASHER (5X25)
93892-05025-07
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-WASHER (5X35)
93892-05035-07
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-WASHER (5X45)
93892-05045-07
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
