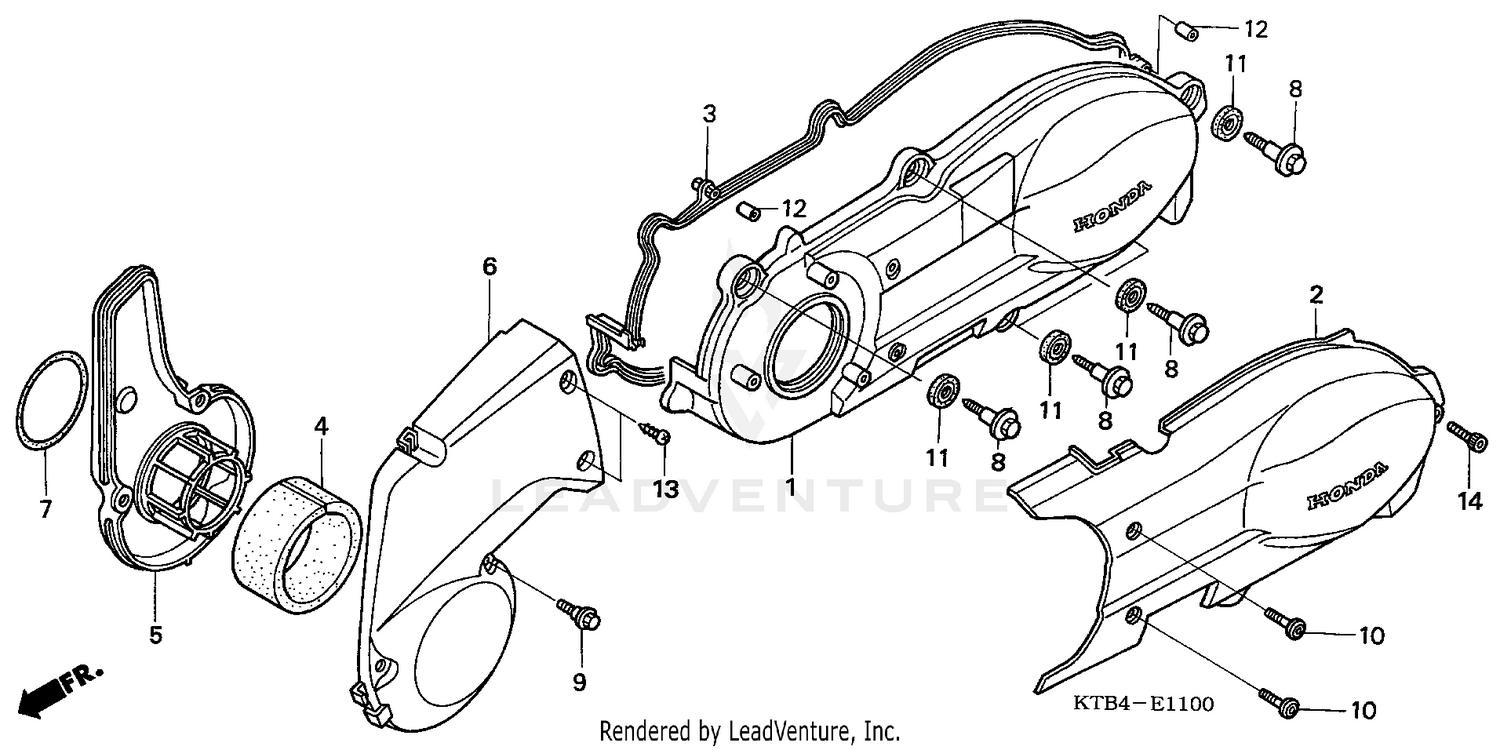

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L.
11340-KPB-000
|
$370.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. SIDE
11360-KPB-010
|
$154.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, L. COVER
11395-KFG-J00
|
$48.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT, BELT COVER DUCT
19412-KFG-000
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUCT, BELT COVER
19413-KFG-000
|
$52.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, DUCT COVER
19414-KTB-000
|
$34.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, BELT COVER DUCT
19415-KAB-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, L. CRANKCASE COVER
90003-KFG-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SPECIAL (5MM)
90112-GR2-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SPECIAL (6X25)
90115-MAS-E00
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, MOUNTING
90543-KFG-000
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL (8X16)
90702-HC4-000
Superseded by 94301-08160
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL (8X16)
94301-08160
|
$2.27 | ||
|
Unavailable |
|||
|
#13
SCREW, TAPPING (5X25)
93903-25580
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SOCKET (6X25)
96600-06025-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
