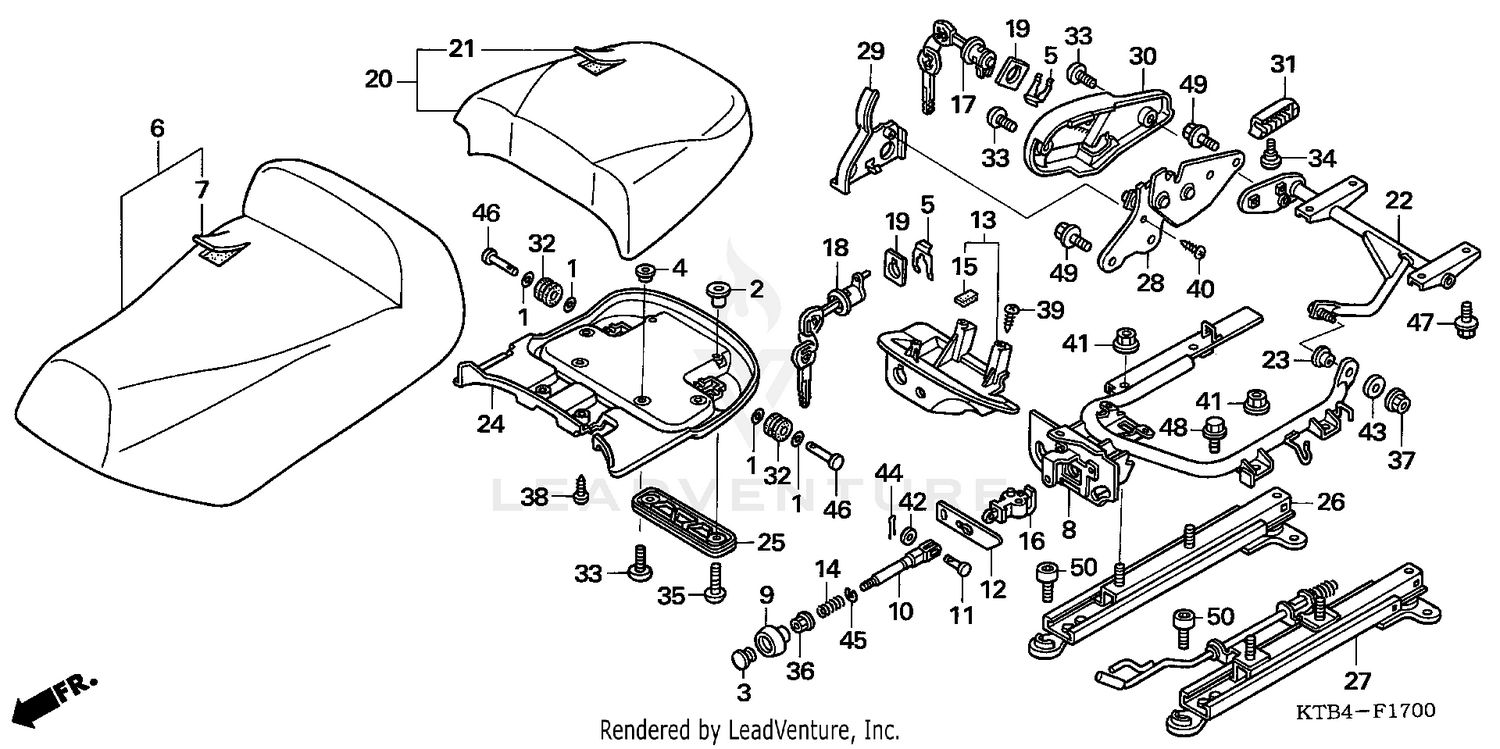

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, AIR CLEANER COVER SETTING
17224-KN5-670
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, AIR CLEANER
17248-402-700
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RR. BRAKE SPINDLE
46511-KR3-000
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. FENDER
61105-MA3-000
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, LOCK KEY SETTING
75581-GN8-920
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, MAIN
77100-KTB-000
|
$210.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEATHER, SEAT
77101-KTB-000
|
$88.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRAME, MAIN SEAT
77150-KTB-010
|
$190.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
KNOB, SEAT LOCK
77170-KTB-000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, SEAT LOCK
77171-KTB-000
|
$17.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, JOINT
77173-KTB-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, SEAT LOCK
77175-KTB-000
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SEAT SLIDE LOCK
77180-KTB-010
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, SEAT LOCK KNOB
77181-KTB-000
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, SPACER
77182-KTB-300
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOOK, SEAT CATCH
77220-KTB-000
|
$18.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
LOCK ASSY., SEAT HINGE
77226-KTB-003
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK ASSY., SLIDE ADJUSTER
77227-KTB-003
|
$21.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SEAT LOCK
77236-GZ5-000
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT, PILLION
77300-KTB-000
|
$151.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
LEATHER, SEAT
77311-KTB-000
|
$62.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
FRAME, PILLION SEAT
77350-KTB-000
|
$74.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR, PILLION SEAT PIVOT
77359-KTB-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, PILLION SEAT-BACK
77360-KTB-000
|
$18.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, PILLION SEAT-BACK
77362-KTB-000
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#26
ADJUSTER, R. SEAT SLIDE
77520-KTB-010
|
$61.21 | ||
|
Available to order. Add to View Price |
|||
|
#27
ADJUSTER, L. SEAT SLIDE
77530-KTB-010
|
$208.72 | ||
|
Available to order. Add to View Price |
|||
|
#28
ADJUSTER, RECLINING
77550-KTB-000
|
$169.84 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, FR. SEAT HINGE
77561-KTB-000
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, RR. SEAT HINGE
77562-KTB-000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#31
KNOB, SEAT HINGE
77563-KTB-000
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
RUBBER, TAILLIGHT MOUNTING
80219-HC4-000
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN (6X10)
90105-MM4-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN (5X13)
90112-MBS-000
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, SPECIAL (6X25)
90115-KTB-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, FLANGE (5MM)
90301-MG8-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, TAPPING (4X12)
93903-24380
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, TAPPING (4X12) (PO)
93913-24280
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, TAPPING (4X12)
93913-24320
|
$0.86 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT-WASHER (8MM)
94070-08080
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLAIN (5MM)
94101-05000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLAIN (8MM)
94101-08000
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIN, SPLIT (1.6X12)
94201-16120
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#45
E-RING (5MM)
94540-05010
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIN A, PILLION STEP
95015-81000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, SOCKET (8X16)
96600-08016-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
