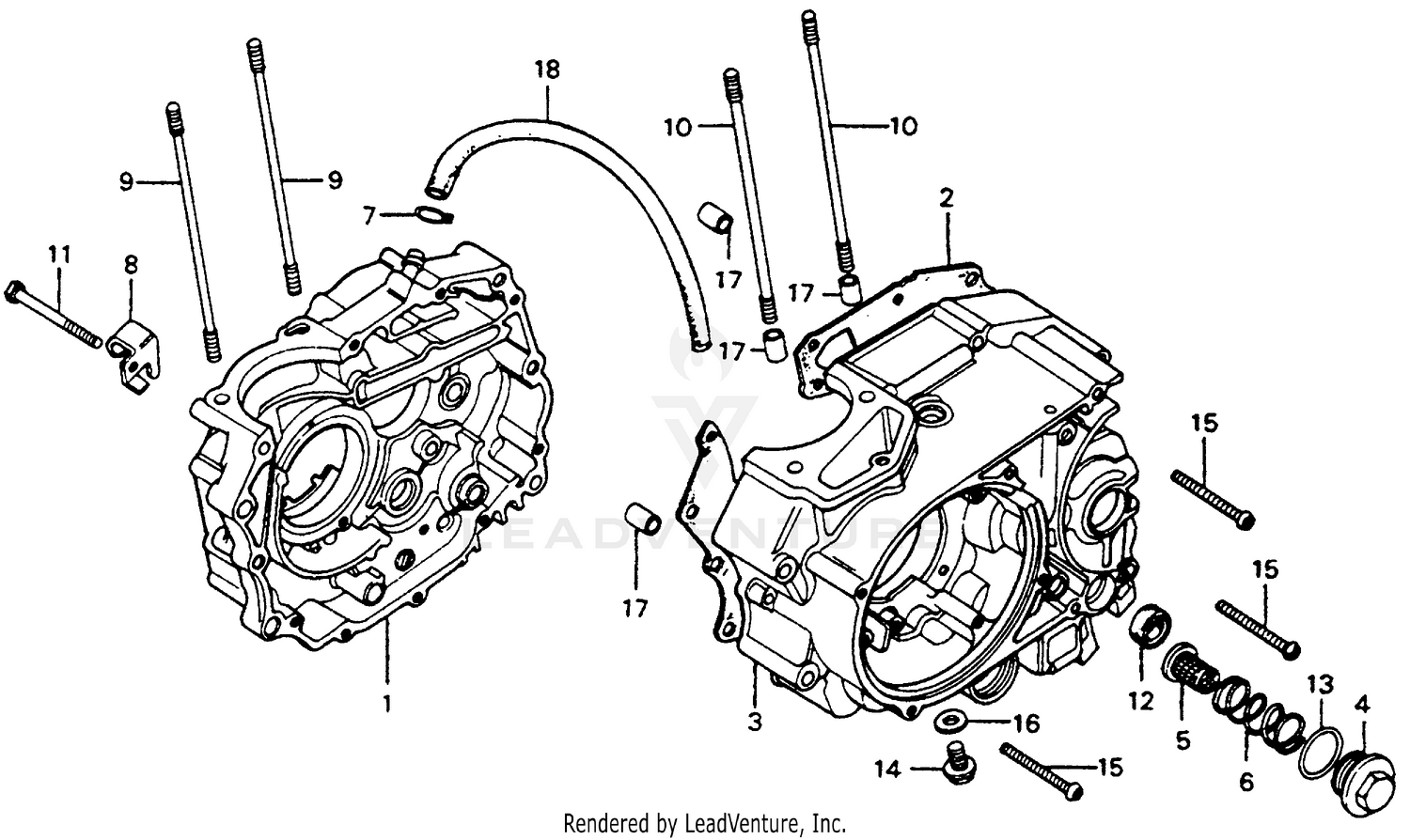

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-383-000
Superseded by 11100-383-040
|
$265.57 | ||
|
Available to order. Add to View Price |
|||
|
#1
CRANKCASE, R.
11100-383-020
Superseded by 11100-383-040
|
$265.57 | ||
|
Unavailable |
|||
|
#1
CRANKCASE, R.
11100-383-030
Superseded by 11100-383-040
|
$265.57 | ||
|
Unavailable |
|||
|
#1
CRANKCASE, R.
11100-383-040
|
$265.57 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-383-000
Superseded by 11191-KY0-601
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-KY0-600
Superseded by 11191-KY0-601
|
$12.67 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-383-010
Superseded by 11191-KY0-601
|
$12.67 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-383-306
Superseded by 11191-KY0-601
|
$12.67 | ||
|
Unavailable |
|||
|
#3
CRANKCASE, L. (NOT AVAILABLE)
11200-383-000
|
$679.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, VALVE ADJ.
12361-383-000
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREEN, OIL FILTER
15421-107-000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, OIL FILTER SCREEN
15426-107-000
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, BREATHER TUBE
15772-292-010
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, CLUTCH CABLE (NOT AVAILABLE)
22838-355-000
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT A, CYLINDER STUD
90031-107-000
Superseded by 90031-107-010
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT A, CYLINDER STUD
90031-107-010
|
$11.09 | ||
|
Unavailable |
|||
|
#10
BOLT B, CYLINDER STUD (NOT AVAILABLE)
90032-107-000
Superseded by 90032-107-010
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. (6X55) (NOT AVAILABLE)
90081-355-000
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (14X28X7) (ARAI)
91206-286-013
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (35X3) (ARAI)
91303-107-000
Superseded by 91303-KK3-830
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (6X50)
93500-06050
Superseded by 93500-06050-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (6X50)
93500-06050-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#16
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN A, DOWEL (10X14)
94301-10140
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULK HOSE, VACUUM (11X1000) (11X470)
95005-11001-30M
|
$29.50 | ||
|
Available to order. Add to View Price |
|||
