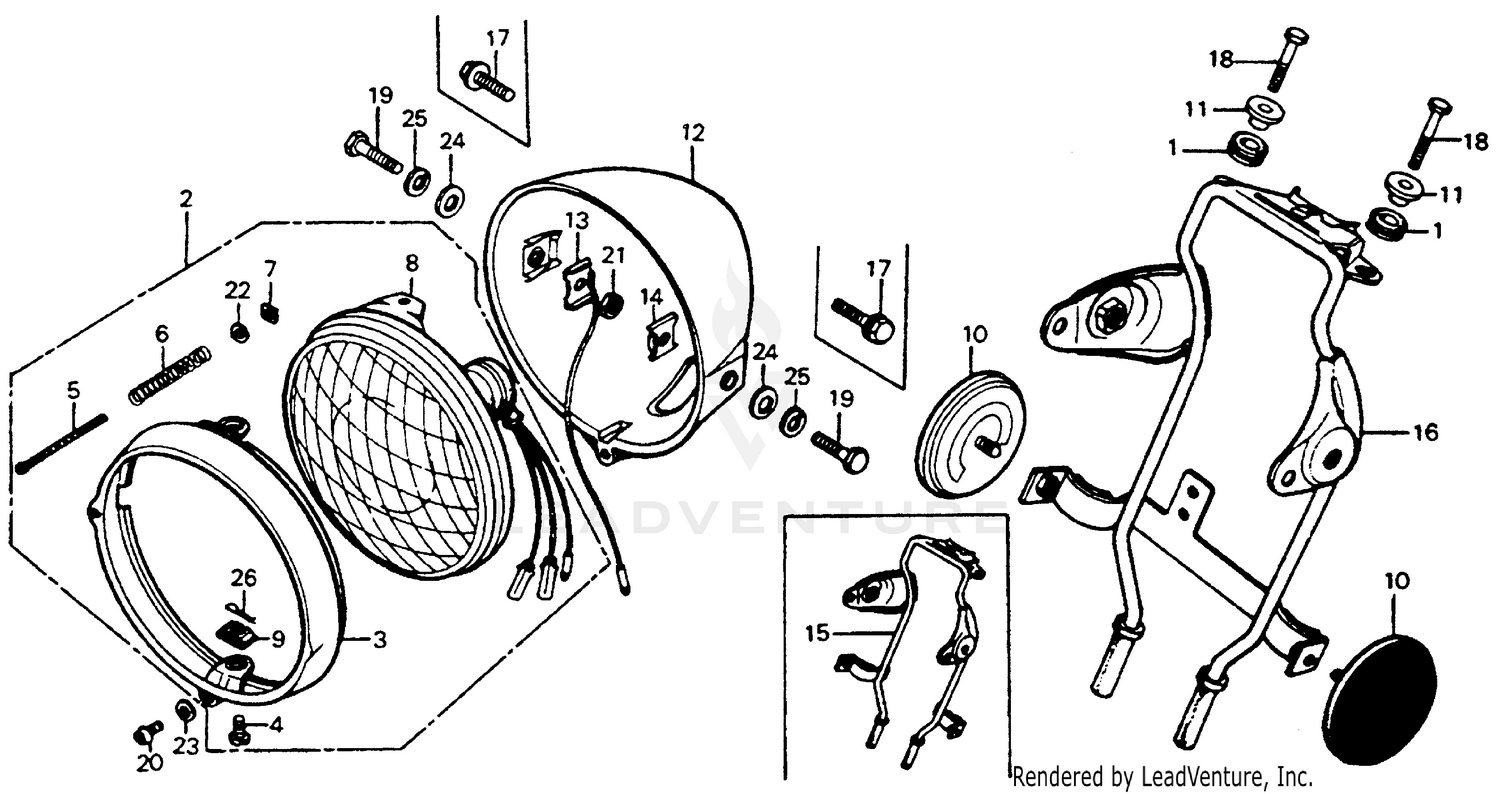

Headlight 76-78 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, AIR CLEANER HOUSING SETTING
17245-107-010
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
HEADLIGHT ASSY. (NOT AVAILABLE)
33100-243-670
Superseded by 33100-243-672
|
$60.08 | ||
|
Unavailable |
|||
|
#2
HEADLIGHT ASSY. (NOT AVAILABLE)
33100-243-672
|
$60.08 | ||
|
Unavailable |
|||
|
#3
RIM, HEADLIGHT
33101-243-670
|
$38.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, UNIT HOLDER (NOT AVAILABLE)
33102-283-000
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, HEADLIGHT BEAM ADJ.
33103-200-020
|
$2.23 | ||
|
Unavailable |
|||
|
#6
SPRING, HEADLIGHT BEAM ADJUSTING
33107-200-023
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)
33117-200-023
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
HEADLIGHT UNIT (6V35/25W)
33120-243-670
Superseded by 33120-243-672
|
$72.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
HEADLIGHT UNIT (6V35/25W)
33120-243-672
|
$72.25 | ||
|
Unavailable |
|||
|
#9
NUT, UNIT HOLDER
33128-200-033
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
REFLECTOR, FR. REFLEX
33741-340-670
Superseded by 33741-102-870
|
$41.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, FR. FENDER (WHITE)
61104-357-000
Superseded by 61104-428-010
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.08 | ||
|
Unavailable |
|||
|
#11
COLLAR, RR. FENDER
61105-428-000
|
$4.03 | ||
|
Unavailable |
|||
|
#12
CASE, HEADLIGHT *NH1* (BLACK)
61301-391-000B
Superseded by 61301-391-000ZB
|
$39.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, HEADLIGHT *NH1* (BLACK)
61301-391-000ZB
|
$39.61 | ||
|
Unavailable |
|||
|
#13
WASHER, HEADLIGHT CASE (NOT AVAILABLE)
61303-074-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEADLIGHT CASE
61303-105-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, HEADLIGHT CASE *NH1* (BLACK)
61311-383-670ZA
|
$142.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.64 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (8X25)
92000-08025-0B
Superseded by 92101-08025-0B
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (8X25)
92101-08025-0B
|
$1.94 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (5X12)
93500-05012
Superseded by 93500-05012-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (5X12)
93500-05012-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (5X12)
93500-05012-00
Superseded by 93500-05012-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (5X12)
93500-05012-1A
Superseded by 93500-05012-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#21
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN (4MM)
94101-04800
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN (5MM)
94101-05000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN (8MM)
94101-08000
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, LOCK (5MM)
94251-05000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
