1976 Honda CB125S Rear Brake Panel OEM Parts

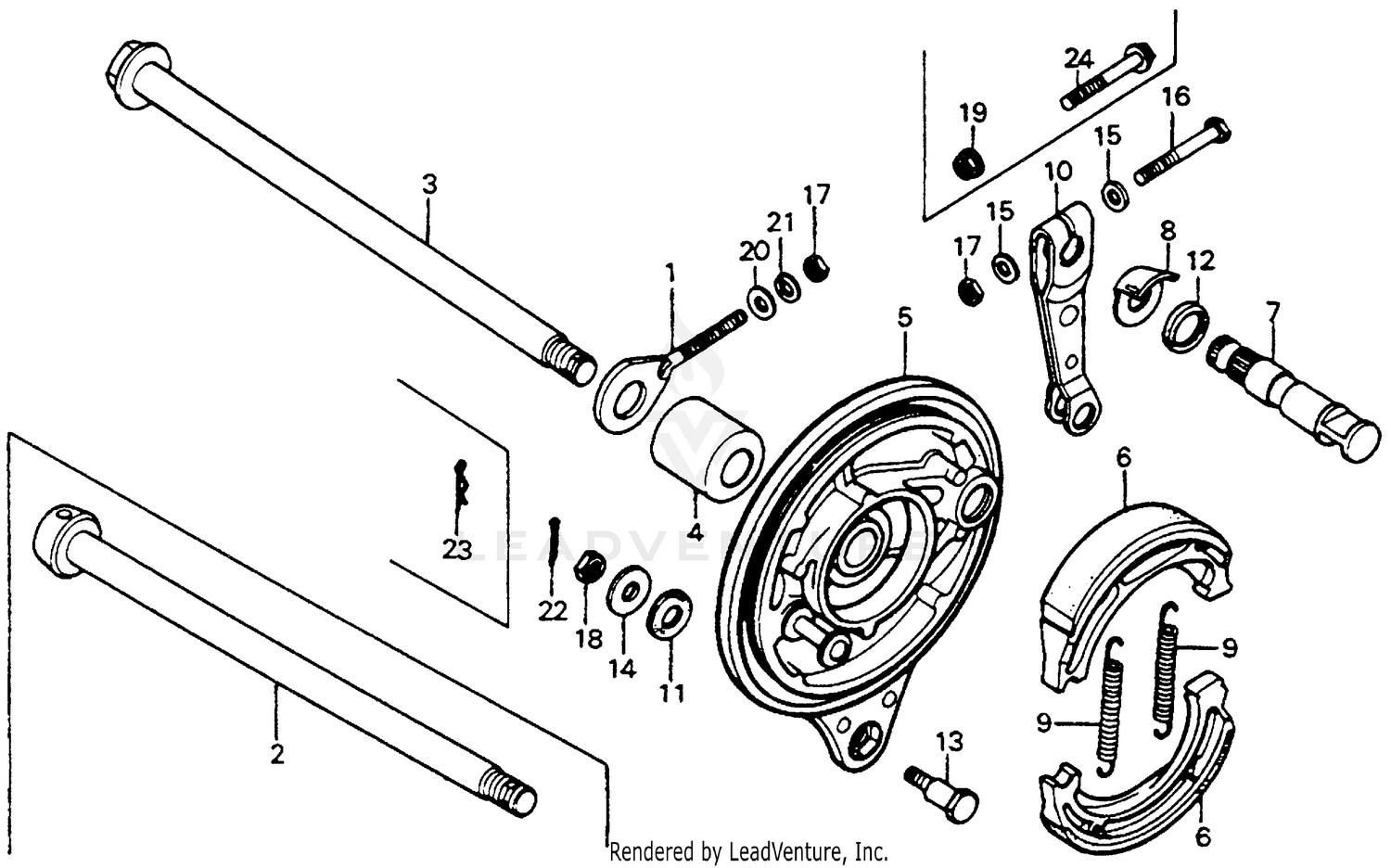

Rear Brake Panel Diagram

Item	MSRP	Qty
#NI SHOE SET, BRAKE (ASK) 06430-KT0-305 Superseded by 06430-GBJ-J10	$33.88
Available to order. Add to View Price
#NI SHOE SET, BRAKE (ASK) 06430-365-674 Superseded by 06430-GBJ-J10	$33.88
Unavailable
#NI SHOE SET, BRAKE (ASK) 431A2-365-672 Superseded by 06430-GBJ-J10	$33.88
Unavailable
#1 ADJUSTER C, R. CHAIN 40543-074-000 Superseded by 95014-12100	$6.66
Available to order. Add to View Price
#1 ADJUSTER C, R. CHAIN 40543-107-000 Superseded by 95014-12100	$6.66
Unavailable
#1 ADJUSTER C, R. CHAIN 95014-12100	$6.66
Unavailable
#2 AXLE, RR. WHEEL (USED AS FR. FOR THIS BLOCK) 42301-107-020 Superseded by 42301-401-680	$32.76
Available to order. Add to View Price
#2 AXLE, RR. WHEEL 42301-401-680	$32.76
Unavailable
#4 COLLAR, RR. BRAKE PANEL SIDE 42313-074-010	$7.21
Available to order. Add to View Price
#5 PANEL, RR. BRAKE (NOT AVAILABLE) 43100-128-670	$89.40
Available to order. Add to View Price
#6 SHOE SET, BRAKE (ASK) 43120-365-671 Superseded by 06430-GBJ-J10	$33.88
Unavailable
#6 SHOE SET, BRAKE (ASK) 43120-365-672 Superseded by 06430-GBJ-J10	$33.88
Unavailable
#7 CAM, RR. BRAKE (NOT AVAILABLE) 43141-365-670	$14.40
Available to order. Add to View Price
#8 INDICATOR, RR. BRAKE 43145-324-700	$5.20
Available to order. Add to View Price
#9 SPRING, BRAKE SHOE 43151-110-000	$3.36
Available to order. Add to View Price
#10 ARM, RR. BRAKE 43410-041-020	$14.72
Available to order. Add to View Price
#10 ARM, RR. BRAKE 43410-364-670 Superseded by 43410-041-020	$14.72
Unavailable
#11 RUBBER, STOPPER ARM CUSHION 43434-286-000	$3.28
Available to order. Add to View Price
#12 DUST SEAL, BRAKE CAM 45134-250-000	$3.09
Available to order. Add to View Price
#13 BOLT, RR. BRAKE STOPPER 90127-001-010 Superseded by 90127-400-000	$10.32
Available to order. Add to View Price
#13 BOLT, RR. BRAKE STOPPER 90127-400-000	$10.32
Unavailable
#14 WASHER A, HANDLE HOLDER SETTING 90524-030-000	$1.51
Available to order. Add to View Price
#15 WASHER, RR. BRAKE ARM 90525-001-000	$1.95
Available to order. Add to View Price
#16 BOLT, HEX. (6X35) 92000-06036 Superseded by 92201-06035-0A	$1.83
Available to order. Add to View Price
#16 BOLT, HEX. (6X35) 92200-06035 Superseded by 92201-06035-0A	$1.83
Unavailable
#16 BOLT, HEX. (6X36) 92201-06035-0A	$1.83
Unavailable
#17 NUT, HEX. (6MM) 90310-KA3-711 Superseded by 94001-06200-0S	$1.32
Available to order. Add to View Price
#17 NUT, HEX. (6MM) 94000-06000-0S Superseded by 94001-06200-0S	$1.32
Unavailable
#17 NUT, HEX. (6MM) 94001-06000 Superseded by 94001-06200-0S	$1.32
Unavailable
#17 NUT, HEX. (6MM) 94001-06000-0S Superseded by 94001-06200-0S	$1.32
Unavailable
#17 NUT, HEX. (6MM) 94001-06008-0S Superseded by 94001-06200-0S	$1.32
Unavailable
#17 NUT, HEX. (6MM) 94001-06200-0S	$1.32
Unavailable
#17 NUT, HEX. (6MM) 94030-06000 Superseded by 94001-06200-0S	$1.32
Unavailable
#18 NUT, HEX. (8MM) 94001-08000-0S	$1.32
Available to order. Add to View Price
#20 WASHER, PLAIN (6MM) 94101-06000 Superseded by 94101-06800	$0.64
Available to order. Add to View Price
#20 WASHER, PLAIN (6MM) 94101-06080 Superseded by 94101-06800	$0.64
Unavailable
#20 WASHER, PLAIN (6MM) 94101-06800	$0.64
Unavailable
#21 WASHER, SPRING (6MM) 94111-06000	$0.93
Available to order. Add to View Price
#23 PIN, LOCK (8MM) 94251-08000	$1.23
Available to order. Add to View Price
