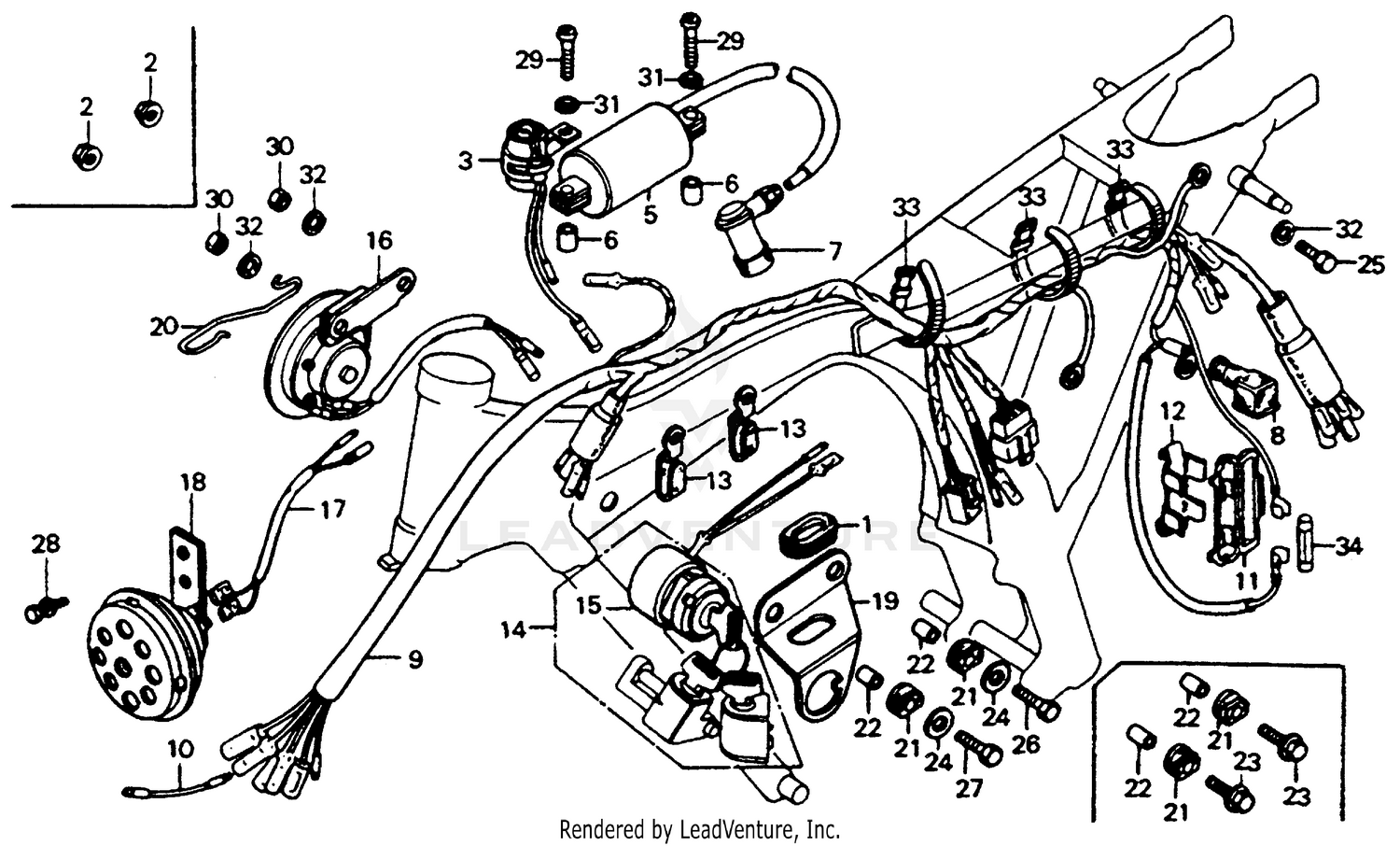

Wire Harness + Ignition Coil + Horn 76,78 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET A, AIR CLEANER HOUSING
17247-240-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONDENSER ASSY.
30250-330-003
|
$16.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
COIL, IGNITION
30400-330-003
Superseded by 30530-330-003
|
$110.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
COIL, IGNITION
30530-330-003
|
$110.57 | ||
|
Unavailable |
|||
|
#6
COLLAR, IGNITION COIL SETTING
30507-107-000
Superseded by 30507-441-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, IGNITION COIL SETTING
30507-441-000
|
$3.45 | ||
|
Unavailable |
|||
|
#7
CAP ASSY., NOISE SUPPRESSOR
30700-098-158
Superseded by 30700-KE2-942
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP ASSY., NOISE SUPPRESSOR
30700-259-810
Superseded by 30700-KE2-942
|
$20.71 | ||
|
Unavailable |
|||
|
#7
CAP ASSY., NOISE SUPPRESSOR
30700-098-153
Superseded by 30700-KE2-942
|
$20.71 | ||
|
Unavailable |
|||
|
#7
CAP ASSY., NOISE SUPPRESSOR
30700-098-163
Superseded by 30700-KE2-942
|
$20.71 | ||
|
Unavailable |
|||
|
#8
COVER, BATTERY TERMINAL (NOT AVAILABLE)
31468-107-000
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
WIRE HARNESS (NOT AVAILABLE)
32100-383-670
|
$116.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUB-WIRE A (NOT AVAILABLE)
32111-102-750
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, FUSE CONNECTOR
32111-230-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, FUSE (NOT AVAILABLE)
32113-107-000
|
$2.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP C, WIRE HARNESS (NOT AVAILABLE)
32173-369-000
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK SET (NOT AVAILABLE)
35010-383-670
Superseded by 35010-383-000
|
$143.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK SET (NOT AVAILABLE)
35010-383-000
|
$143.43 | ||
|
Unavailable |
|||
|
#15
SWITCH ASSY., COMBINATION (NOT AVAILABLE)
35100-383-671
|
$70.21 | ||
|
Available to order. Add to View Price |
|||
|
#16
HORN ASSY. (NOT AVAILABLE)
38100-110-671
|
$22.21 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, MAIN SWITCH (NOT AVAILABLE)
50375-331-000
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE, CLUTCH CABLE
50721-382-670
|
$7.21 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER, BRACKET CUSHION
84705-292-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR, NUMBER BRACKET SETTING
84706-286-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER B, HANDLE HOLDER SETTING
90525-030-000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.42 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.42 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.64 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX. (6X28)
92000-06028
Superseded by 92101-06028-0A
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEX. (6X28)
92101-06028-0A
|
$1.27 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN (5X28) (NOT AVAILABLE)
93500-05028-4J
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#31
WASHER, PLAIN (5MM)
94101-05000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#32
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#33
BAND B1, CABLE
32161-404-000
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
|
$2.57 | ||
|
Unavailable |
|||
|
#34
FUSE A (15A)
98200-11500
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
