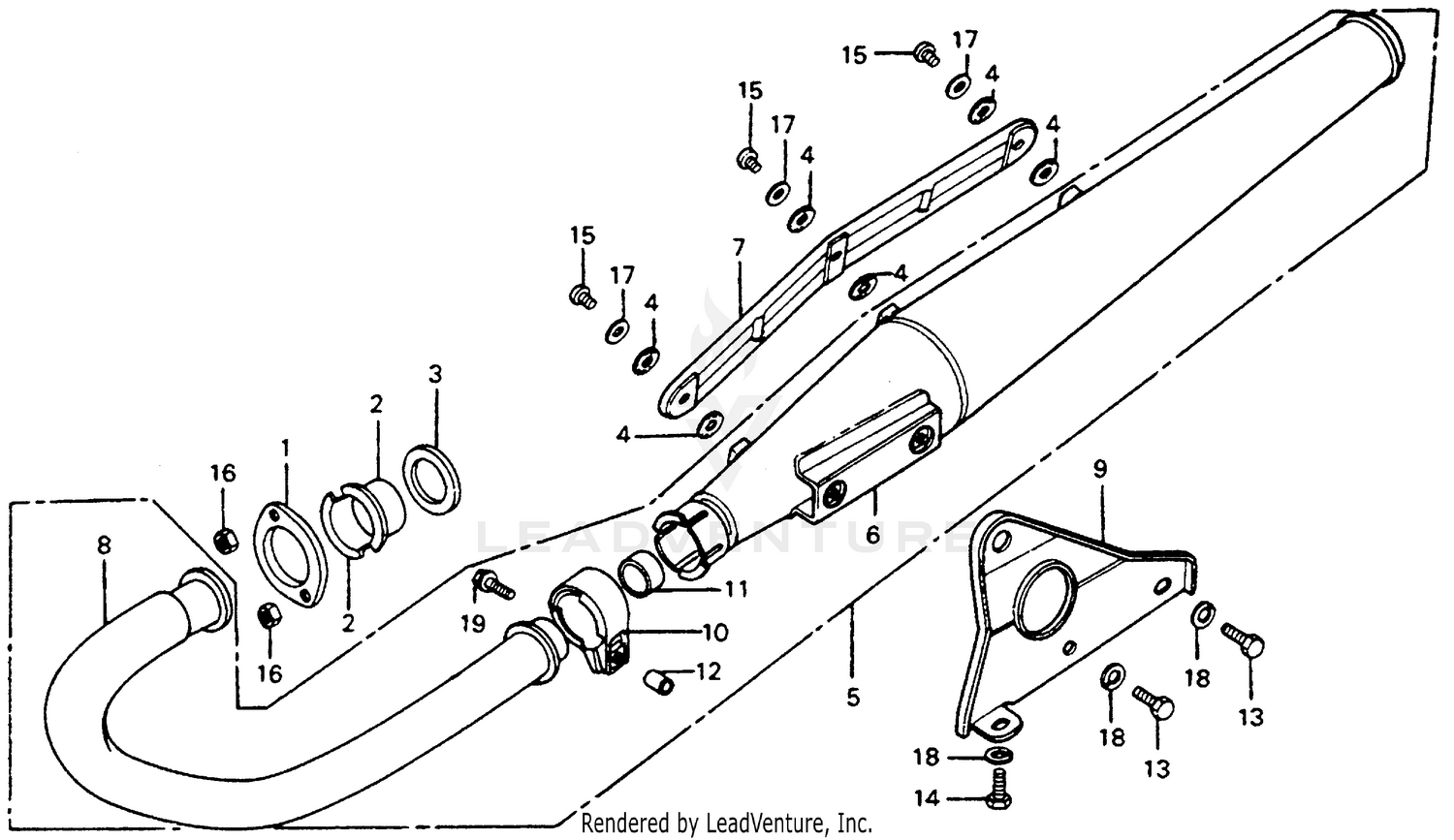

Muffler 76,78 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EX. PIPE
18231-365-670
|
$43.21 | ||
|
Unavailable |
|||
|
#2
COLLAR, EX. PIPE JOINT
18233-330-000
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-MN5-650
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-216-000
Superseded by 18291-MN5-650
|
$4.52 | ||
|
Unavailable |
|||
|
#4
GASKET, PROTECTOR
18292-167-890
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, PROTECTOR
18292-329-000
Superseded by 18292-167-890
|
$2.14 | ||
|
Unavailable |
|||
|
#5
MUFFLER, EX. (NOT AVAILABLE)
18300-383-670
Superseded by 18300-383-677
|
$149.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER, EX. (NOT AVAILABLE)
18300-383-671
Superseded by 18300-383-677
|
$149.07 | ||
|
Unavailable |
|||
|
#5
MUFFLER, EX. (NOT AVAILABLE)
18300-383-677
|
$149.07 | ||
|
Unavailable |
|||
|
#6
MUFFLER (NOT AVAILABLE)
18310-383-670
Superseded by 18310-383-677
|
$114.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR, MUFFLER (NOT AVAILABLE)
18315-383-670
|
$45.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, EX. (NOT AVAILABLE)
18320-383-670
|
$81.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, MUFFLER *NH1* (BLACK) (NOT AVAILABLE)
18353-383-670ZA
Superseded by 18353-383-830ZA
|
$21.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, R. MUFFLER (NOT AVAILABLE)
18371-286-300
|
$60.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, MUFFLER
18391-383-670
Superseded by 18392-MK4-000
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, MUFFLER
18392-MK4-000
|
$15.83 | ||
|
Unavailable |
|||
|
#12
NUT, SPECIAL (8MM) (NOT AVAILABLE)
90315-286-300
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (8X12) (NOT AVAILABLE)
92000-08012-0A
Superseded by 92100-08012-0A
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (8X16)
92000-08016-0A
Superseded by 92101-08016-0A
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (8X16)
92101-08016-0A
|
$1.49 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN (6X8)
93500-06008-0B
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (6X8)
93500-06008-02
Superseded by 93500-06008-0B
|
$0.67 | ||
|
Unavailable |
|||
|
#16
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#16
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#16
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#16
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#16
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#16
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X25)
95700-08025-00
Superseded by 95701-08025-00
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X25)
95701-08025-00
|
$1.94 | ||
|
Unavailable |
|||
