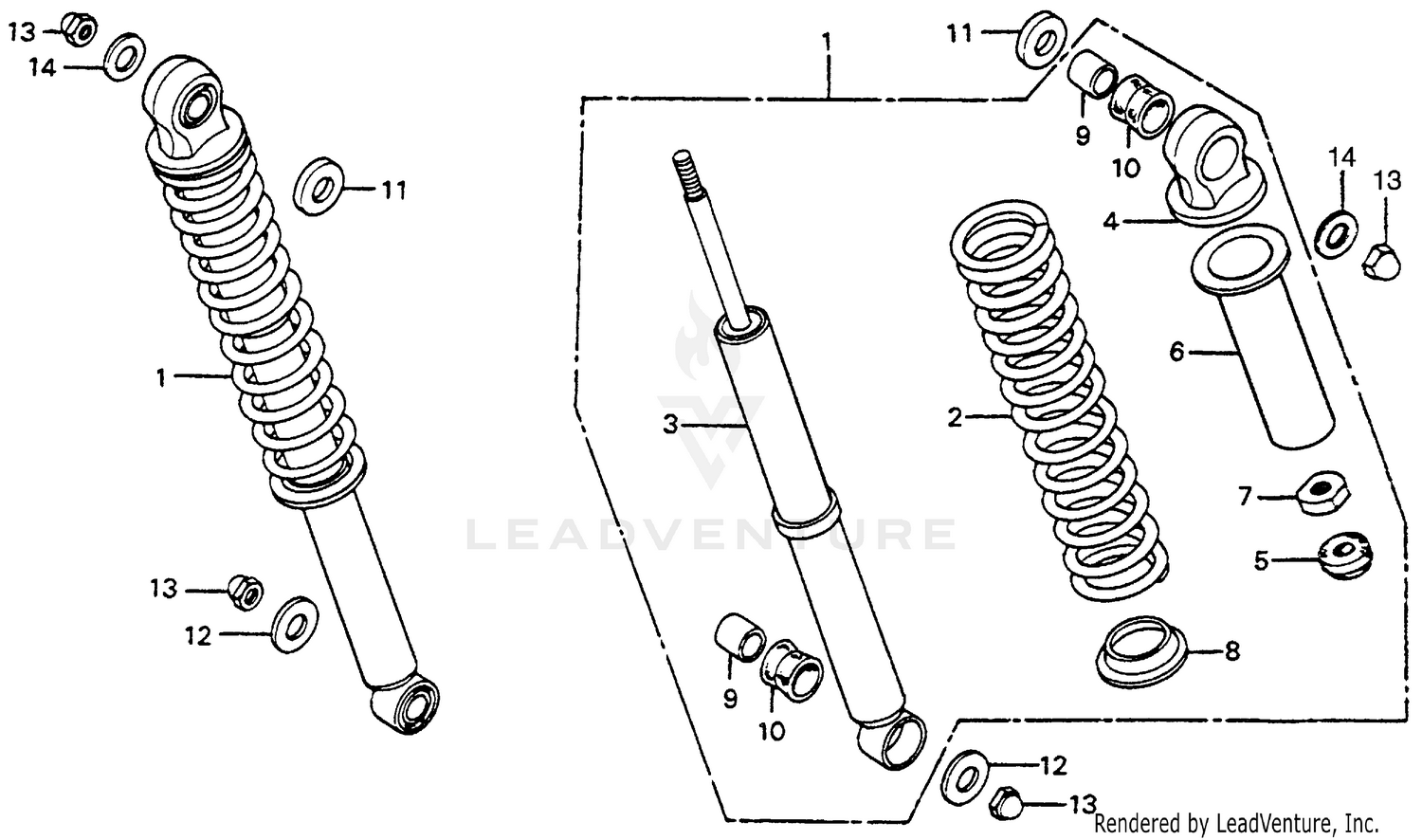

Rear Shock Absorber 76,78 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)
52400-383-670
|
$96.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)
52401-383-670
|
$27.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, RR.
52430-324-761
Superseded by 52430-324-762
|
$65.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, RR.
52430-324-762
|
$65.90 | ||
|
Unavailable |
|||
|
#4
METAL, RR. SHOCK ABSORBER (UPPER) (SHOWA) (NOT AVAILABLE)
52462-131-003
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, RR. SHOCK ABSORBER STOPPER (NOT AVAILABLE)
52475-031-010
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)
52476-118-770
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, RR. SHOCK ABSORBER LOCKING (UPPER) (NOT AVAILABLE)
52481-031-010
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT, RR. SHOCK ABSORBER SPRING (SHOWA)
52485-131-003
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. SHOCK ABSORBER RUBBER BUSH
52486-056-000
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, SHOCK ABSORBER RUBBER (LOWER)
52489-056-000
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN (12MM)
90401-383-670
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (10.3MM)
90527-230-000
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CAP (10MM)
94021-10020-0S
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (10MM)
94101-10000
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
