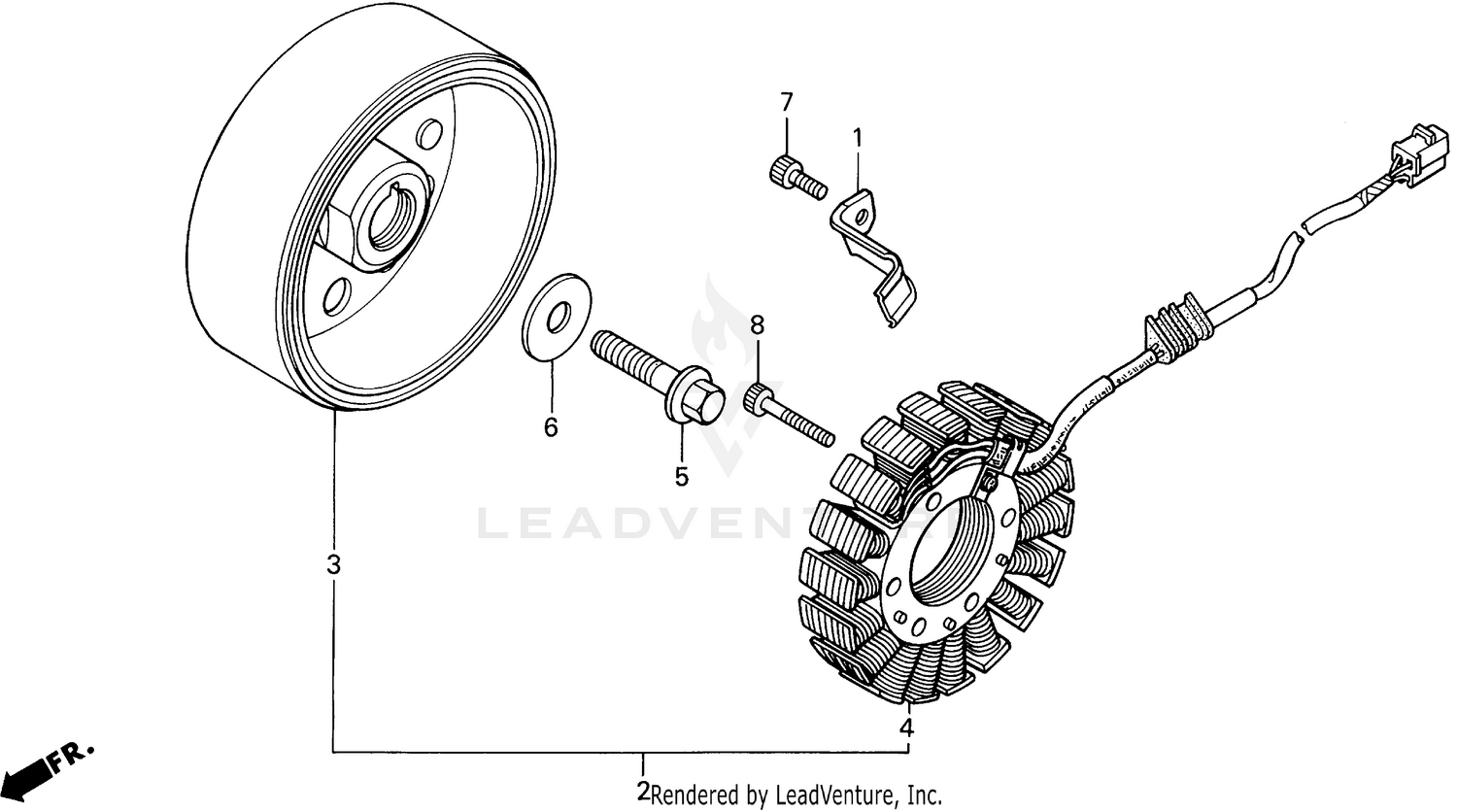

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, ALTERNATOR CORD
11333-MV9-670
|
$8.12 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLYWHEEL (DENSO)
31110-MV9-671
|
$752.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
STATOR (DENSO)
31120-MV9-671
|
$477.58 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE (10MM)
90023-MV9-670
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (10.5X27)
90405-KT7-000
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SOCKET (6X12)
96600-06012-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SOCKET (6X32)
96600-06032-00
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
