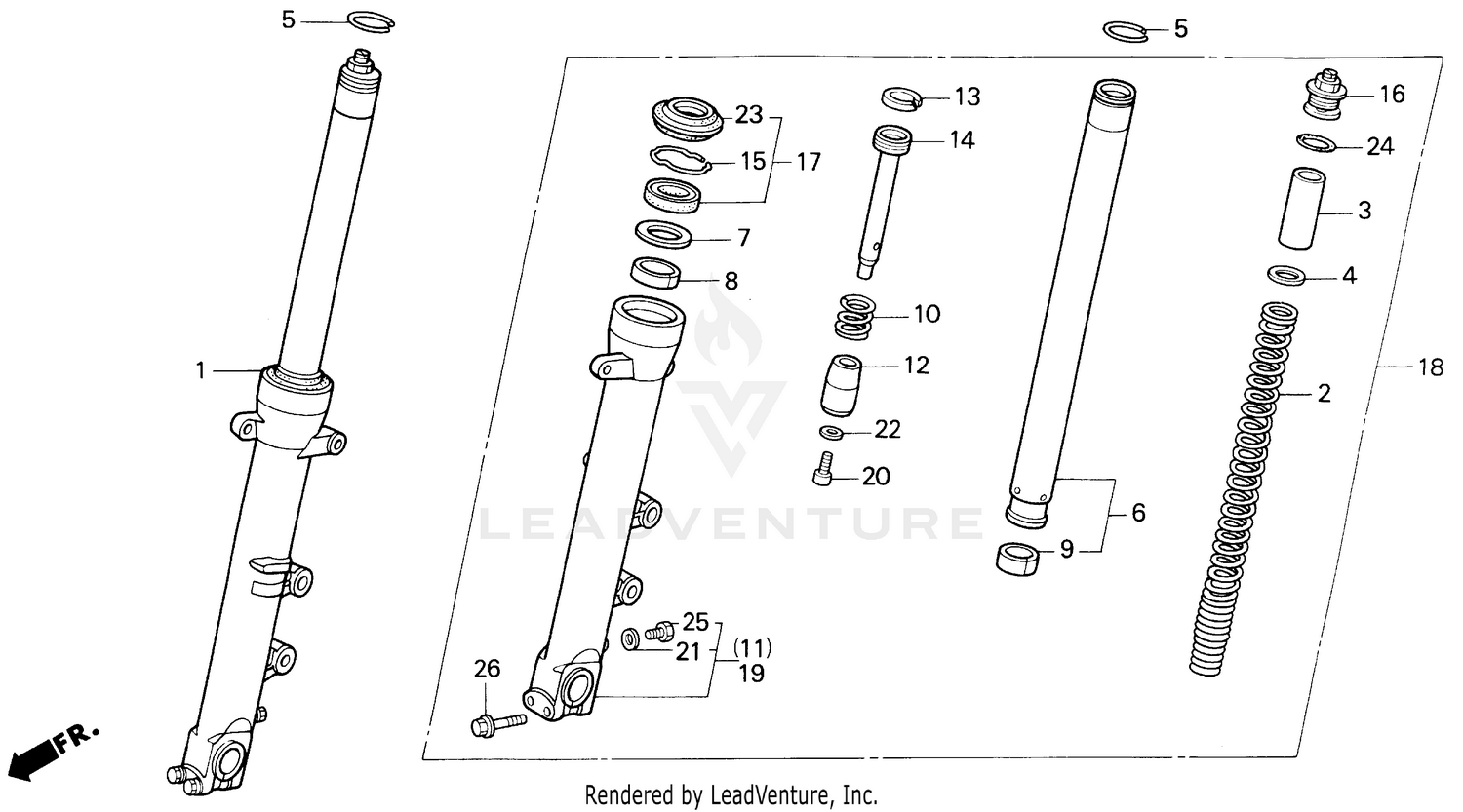

F2 Front Fork 91-94 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK ASSY., R. FR. (SHOWA)
51400-MV9-003
|
$856.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, FR. FORK
51401-MV9-003
|
$80.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SPRING
51402-MV8-901
|
$19.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING (SHOWA)
51403-KF0-003
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
51405-MB4-003
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, FR. FORK
51410-MV9-003
|
$208.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, BACK-UP (SHOWA)
51412-MB4-003
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, GUIDE (SHOWA)
51414-KCR-003
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, GUIDE (SHOWA)
51414-MN5-003
Superseded by 51414-KCR-003
|
$16.26 | ||
|
Unavailable |
|||
|
#9
BUSH, SLIDER (SHOWA)
51415-MM8-003
Superseded by 51415-KCR-003
|
$14.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, FR. REBOUND (SHOWA)
51416-KF0-003
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, R. (LOWER)
51421-MV9-003
|
$327.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIECE, OIL LOCK (SHOWA)
51432-MV9-003
|
$28.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, PISTON
51437-KV3-701
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, SEAT
51440-MV9-003
|
$64.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, OIL SEAL STOPPER (SHOWA)
51447-KA4-711
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT ASSY., FR. FORK (SHOWA)
51450-MR8-003
|
$124.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL SET, FR. FORK
51490-MN8-305
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
FORK ASSY., L. FR. (SHOWA)
51500-MV9-003
|
$856.54 | ||
|
Available to order. Add to View Price |
|||
|
#19
CASE, L. (LOWER)
51521-MV9-003
|
$285.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (8MM) (SHOWA)
90116-KV3-701
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, FR. FORK DRAIN PETCOCK
90543-273-000
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL
91254-MM8-003
|
$20.72 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (33.2X2.4)
91356-KF0-003
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X45)
96300-08045-07
|
$4.33 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (8X45) (SOURCE: VINTAGE PARTS INC.)
96500-08045-07
Superseded by 96300-08045-07
|
$4.33 | ||
|
Unavailable |
|||
