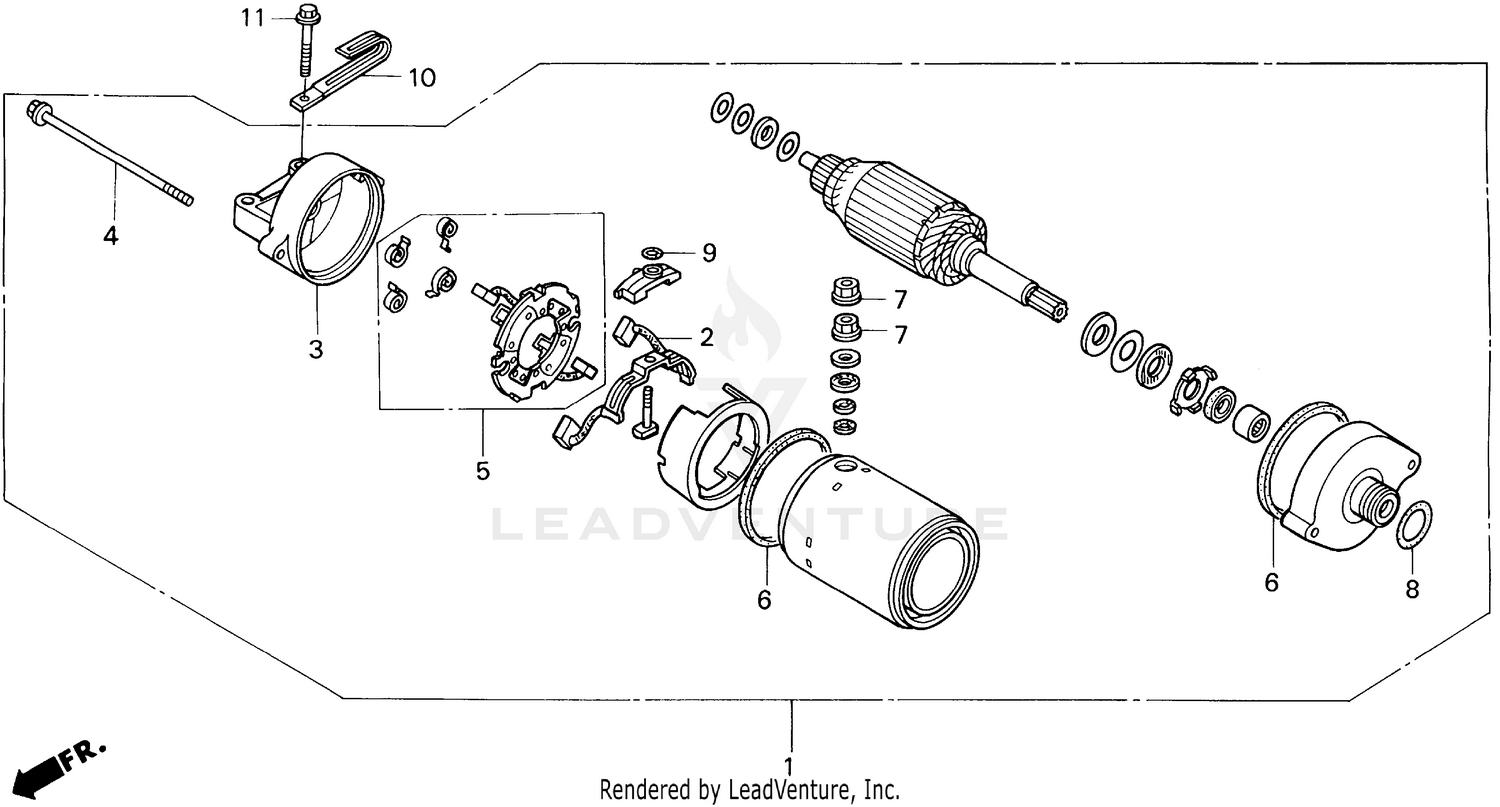

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY. (MITSUBA)
31200-MV9-671
|
$375.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
TERMINAL SET, BRUSH
31201-MR6-008
|
$27.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, RR.
31203-MV9-671
|
$74.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SETTING
31205-MV9-671
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER SET, BRUSH
31206-MR6-008
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING
31207-KS5-901
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-WASHER (6MM)
90071-MB0-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (24.4X3.1)
91312-MG7-003
|
$7.61 | ||
|
Unavailable |
|||
|
#9
O-RING
91320-MB0-000
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP, WIRE
91406-166-000
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
