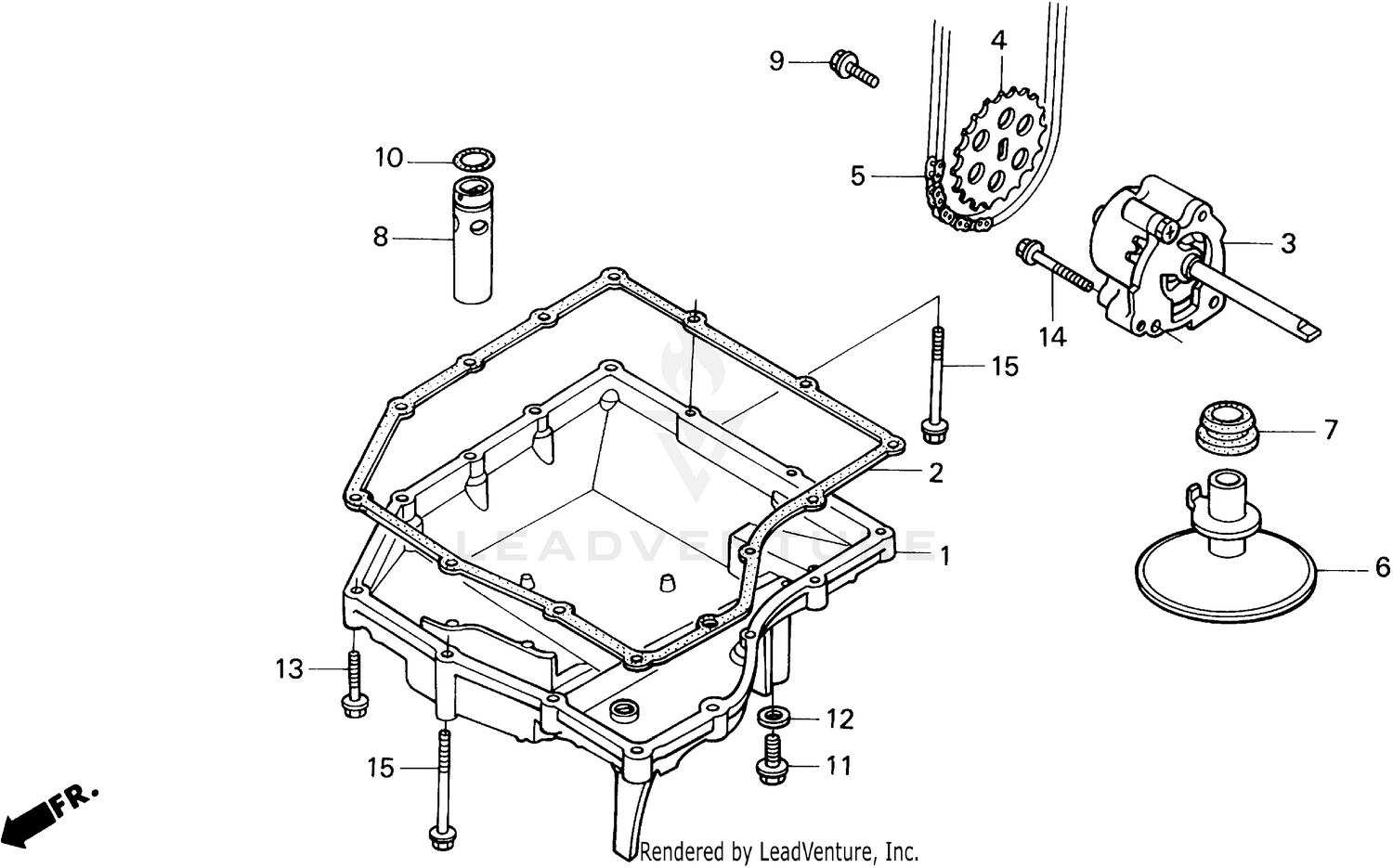

Oil Pan Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11210-MV9-670
|
$222.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, OIL PAN
11394-MV9-670
|
$17.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
PUMP ASSY., OIL
15100-MV9-670
|
$291.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, OIL PUMP DRIVEN (26T)
15134-MV9-670
|
$29.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN, OIL PUMP (25H-50) (DAIDO)
15140-ML0-003
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
STRAINER, OIL
15153-MV9-670
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, OIL STRAINER
15154-MM5-000
|
$7.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY., RELIEF
15220-MM4-000
|
$42.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-WASHER (6X12)
90021-MM5-000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (14.8X2.2)
91313-MB0-003
Superseded by 91313-MG7-004
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (14.8X2.2)
91313-MG7-004
|
$4.41 | ||
|
Unavailable |
|||
|
#11
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X50)
95701-06050-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
