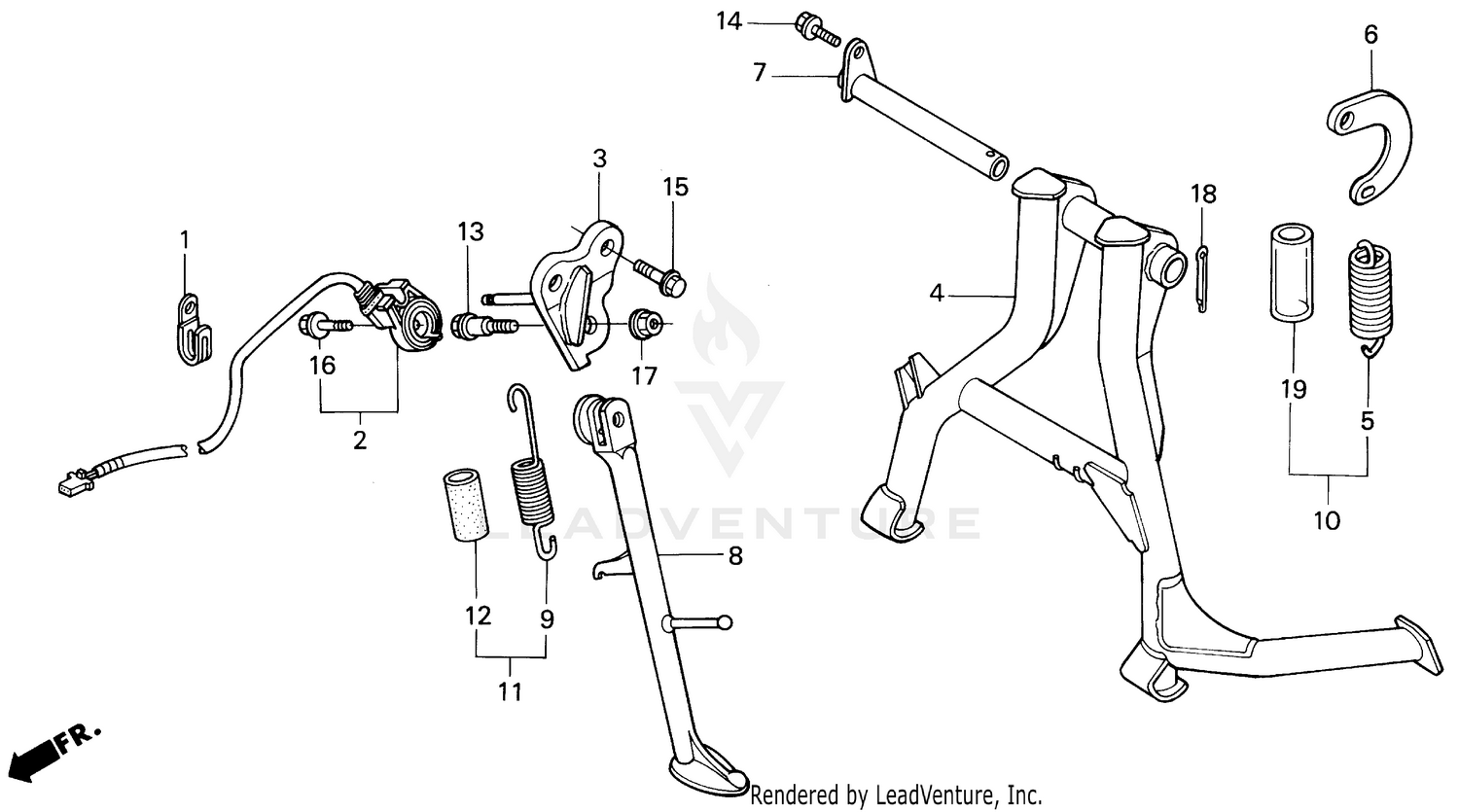

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, BYSTARTER WIRE
32906-GR1-000
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH SET, SIDE STAND
35700-MV9-305
Superseded by 35700-MZ1-305
|
$56.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH SET, SIDE STAND
35700-MZ1-305
|
$56.36 | ||
|
Unavailable |
|||
|
#3
BRACKET, SIDE STAND
50150-MV9-000
|
$46.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAND, MAIN
50500-MV9-600
|
$130.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, MAIN STAND SPRING
50523-425-000
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, MAIN STAND PIVOT
50526-MV9-601
|
$12.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, SIDE STAND
50530-MV9-000
|
$72.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING ASSY., SIDE STAND
50541-MM4-000
Superseded by 50542-MZ2-000
|
$18.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING ASSY., SIDE STAND
50542-MZ2-000
|
$18.75 | ||
|
Unavailable |
|||
|
#10
SPRING ASSY., MAIN STAND
50541-MT6-600
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, SIDE STAND SPRING
50543-MM4-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SIDE STAND PIVOT
90108-MK6-670
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12)
90118-958-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SPECIAL (10MM)
90037-MV9-600
Superseded by 90037-422-003
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SPECIAL (10MM)
90037-422-003
|
$8.80 | ||
|
Unavailable |
|||
|
#16
BOLT, SPECIAL (6X16)
90147-MCE-950
|
$0.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL (6X16)
90147-MK6-671
Superseded by 90147-MCE-950
|
$0.62 | ||
|
Unavailable |
|||
|
#17
NUT, SIDE STAND
90203-MF9-710
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, SPLIT (2.5X30)
94201-25300
|
$1.03 | ||
|
Unavailable |
|||
|
#19
TUBE, VINYL (22X27X60) (95003-60001-10M) (NOT AVAILABLE)
95003-60006-20
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
