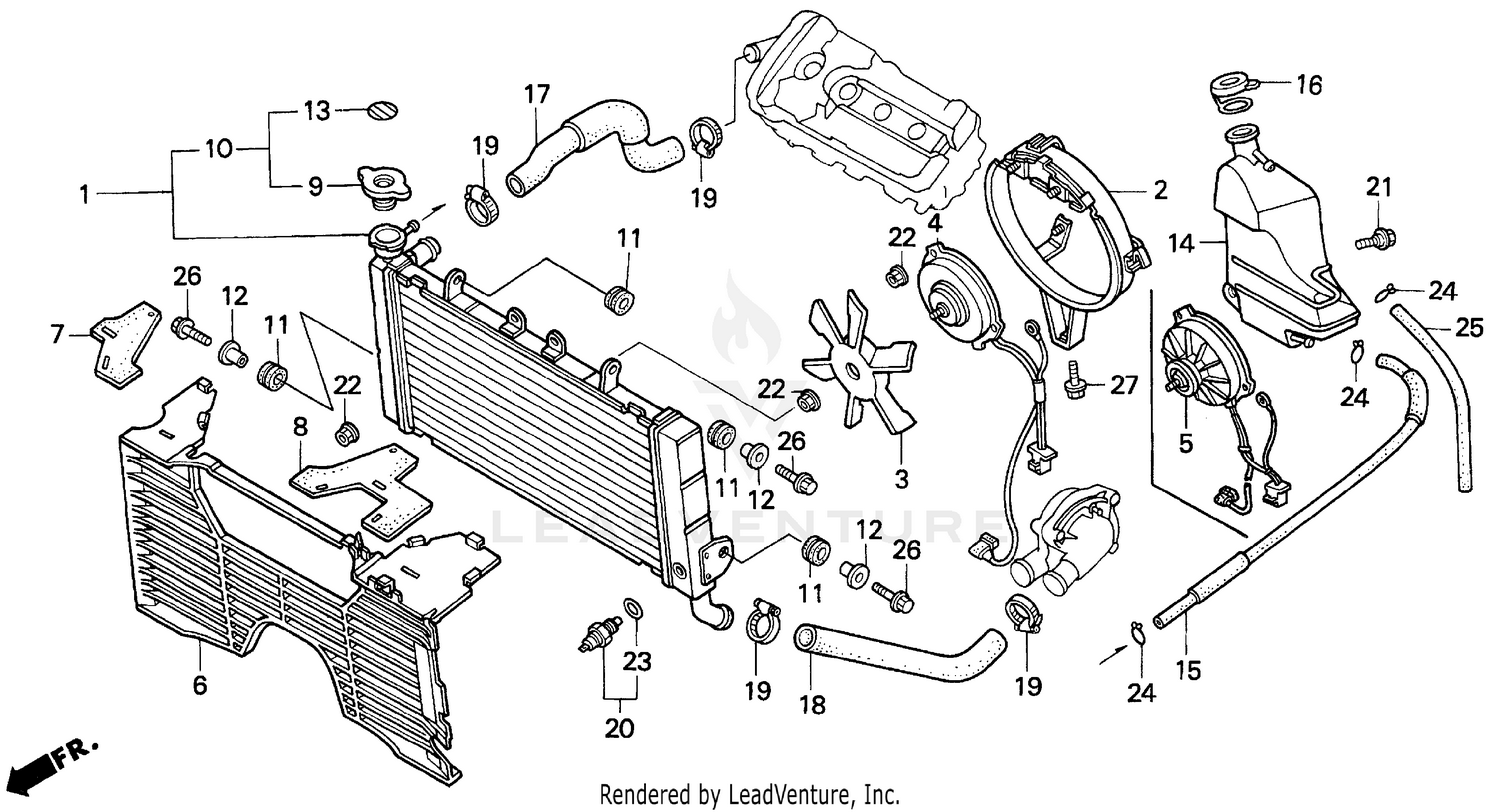

F2 Radiator 91-94 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR
19010-MV9-P00
|
$777.04 | ||
|
Available to order. Add to View Price |
|||
|
#1
RADIATOR
19010-MV9-921
Superseded by 19010-MV9-P00
|
$777.04 | ||
|
Unavailable |
|||
|
#2
SHROUD
19015-MV9-003
|
$87.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHROUD
19015-MV9-931
|
$78.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
FAN, COOLING (TOYO)
19025-MN4-003
|
$70.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOTOR, COOLING FAN
19030-MV9-000
|
$340.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOTOR ASSY., FAN
19030-MV9-931
|
$350.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRILLE, RADIATOR
19032-MV9-000
|
$67.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, R. RADIATOR GRILLE (NOT AVAILABLE)
19033-MV9-000
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, L. RADIATOR GRILLE
19034-MV9-000
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, RADIATOR
19037-GEE-710
|
$35.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, RADIATOR
19045-MV9-921
Superseded by 19037-GEE-710
|
$35.08 | ||
|
Unavailable |
|||
|
#11
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
19055-MV9-881
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
19055-MV9-921
Superseded by 19055-MV9-881
|
$10.69 | ||
|
Unavailable |
|||
|
#14
TANK, RADIATOR RESERVE
19101-MV9-010
|
$31.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, RADIATOR RESERVE TANK
19102-MV9-000
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, RESERVE TANK
19104-MB0-700
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, RADIATOR (UPPER)
19501-MV9-000
|
$37.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, RADIATOR (LOWER)
19505-MV9-000
|
$26.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, HOSE (30-37MM)
19516-GAG-003
|
$16.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
SWITCH ASSY., THERMO
37760-MT2-003
|
$83.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6MM)
90111-162-000
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (13.5X1.4)
91307-PH7-660
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.05 | ||
|
Unavailable |
|||
|
#24
CLIP, TUBE (B10)
95002-02100
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULK HOSE, VACUUM (5.5X3000) (5.3X500)
95005-55003-20M
|
$39.52 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X25)
95801-06025-07
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
