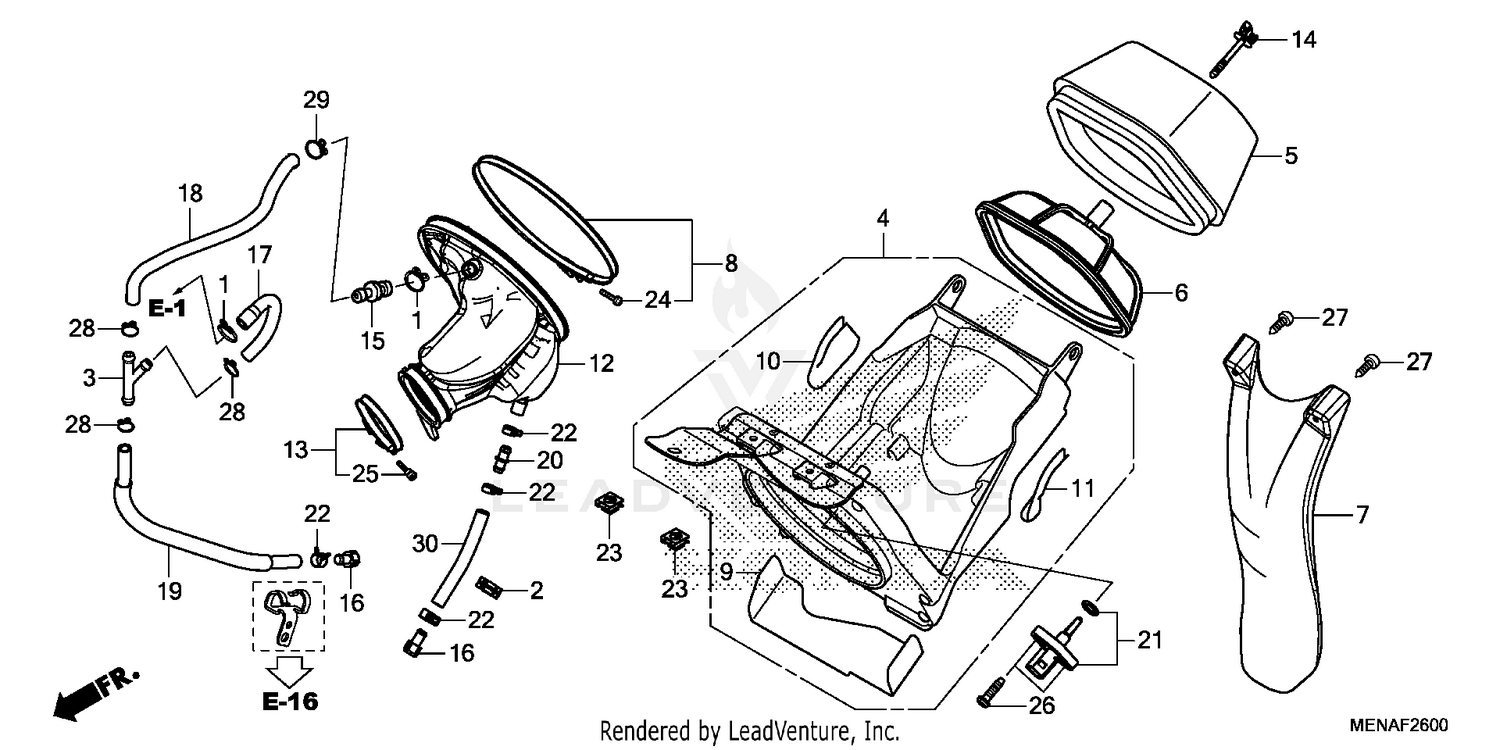

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-551-000
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, TUBE
16731-MEN-A71
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, FUEL TUBE
16959-MY1-000
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOUSING, AIR CLEANER
17210-MEN-A70
|
$145.94 | ||
|
Available to order. Add to View Price |
|||
|
#5
ELEMENT, AIR CLEANER
17213-MEN-A70
|
$62.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
BASE ASSY., ELEMENT
17214-MEN-A70
|
$80.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPLASH GUARD
17218-MEN-A70
|
$56.97 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, AIR CLEANER CONNECTING TUBE (171)
17221-MEN-A30
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUARD, HEAT
17221-MEN-A70
|
$11.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD, R. HEAT
17222-MEN-A70
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, L. HEAT
17223-MEN-A70
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, AIR CLEANER CONNECTING
17253-MEN-A70
|
$92.94 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, AIR CLEANER CONNECTING TUBE (60MM)
17255-MEN-A70
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, AIR CLEANER ELEMENT SETTING
17291-MEB-670
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, BREATHER TUBE
17359-MAG-L00
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, BREATHER TUBE
17370-419-700
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE A, BREATHER
17372-MEN-A70
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE B, BREATHER
17374-MEN-A70
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE C, BREATHER
17375-MEN-A30
|
$9.61 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, TUBE
19102-KT8-000
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
SENSOR ASSY., AIR TEMPERATURE
37880-KWW-C01
|
$51.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.21 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CLIP (6MM)
90305-GK8-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (4X25)
93500-04025-0G
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (4X30)
93500-04030-0G
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, TAPPING (5X20)
93911-25520
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING (5X20)
93913-25580
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, TUBE (B12)
95002-02120
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, TUBE (B12.5)
95002-02130
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)
95003-23008-60M
|
$41.66 | ||
|
Available to order. Add to View Price |
|||
