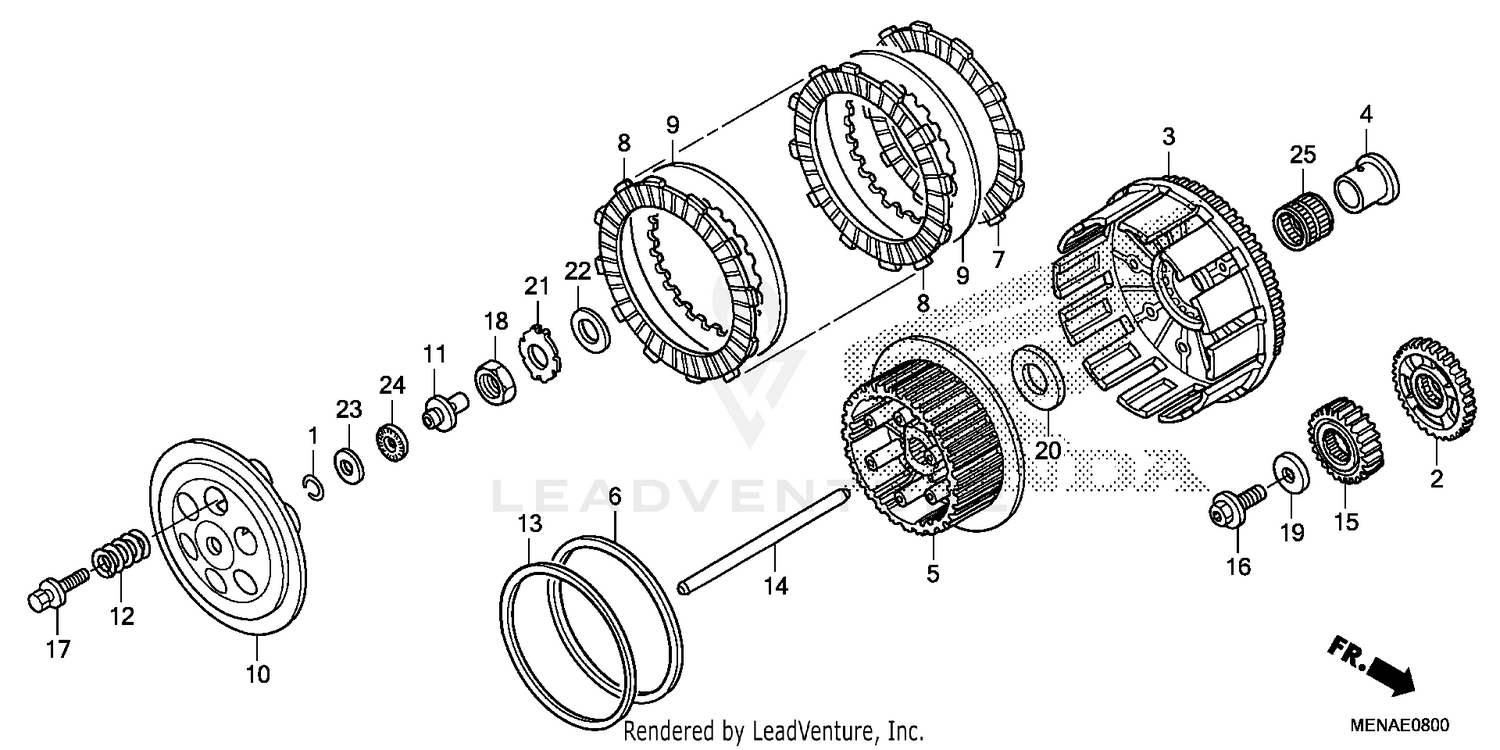

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
CLUTCH KIT (INCLUDE-FRICTION DISC,PLATES, SPRINGS, AND O-RING/GASKET)
06001-MEN-005
|
$306.53 | ||
|
Available to order. Add to View Price |
|||
|
#1
CLIP, PISTON PIN (10MM)
13115-147-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, BALANCER DRIVE (34T)
13415-MEN-A70
|
$98.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH OUTER
22100-MEN-A70
|
$461.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, CLUTCH (OUTER)
22106-KS7-000
|
$30.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, CLUTCH
22120-MEN-A70
|
$147.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, JUDDER SPRING
22125-MBN-670
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
DISK, CLUTCH FRICTION
22201-MBN-670
|
$23.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
DISK, CLUTCH FRICTION
22201-MEN-A10
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE B, CLUTCH
22321-KZ3-690
|
$18.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH PRESSURE
22351-KZ3-860
|
$90.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, CLUTCH LIFTER
22352-KRN-670
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, CLUTCH
22401-MEN-A70
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, JUDDER
22402-MBN-670
|
$24.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, CLUTCH LIFTER
22850-MEN-A70
|
$29.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, PRIMARY DRIVE (23T)
23121-MEN-A30
|
$91.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL (12X28)
90013-MEB-670
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X35)
90024-MEN-A70
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT (18MM)
90235-MEN-A30
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (12MM)
90402-KW6-960
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (23X48)
90421-HA2-010
|
$12.66 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, LOCK (18MM)
90461-KZ3-J10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (18X32X2)
90501-ML3-910
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (12MM)
90608-072-000
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, NEEDLE (12MM) (NTN)
91001-147-003
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, NEEDLE (28X32X27.2) (THOMPSON)
91021-ML3-003
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
