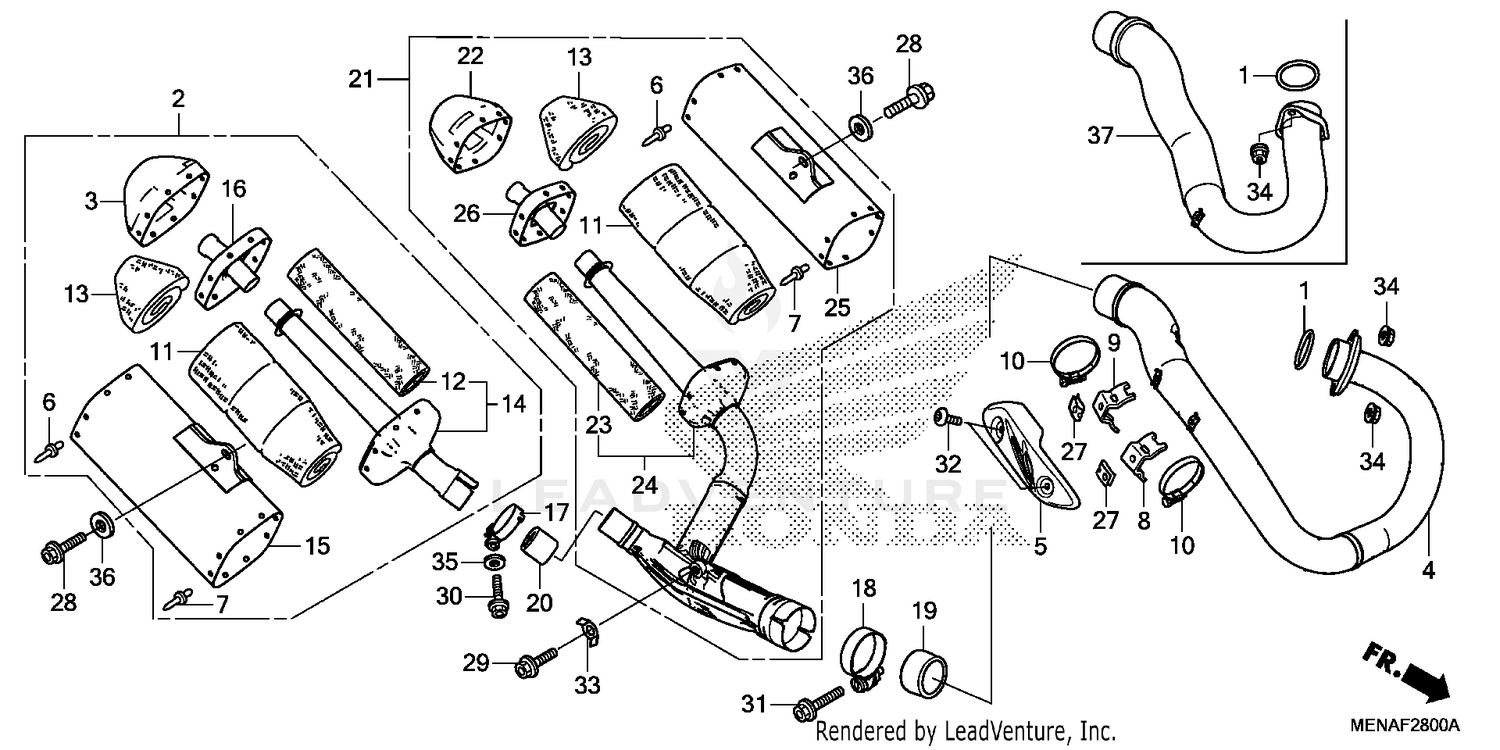

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-MEB-670
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
MUFFLER, R. (COO)
18310-MEN-317
|
$751.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, R. END (COO)
18318-MEN-307
|
$169.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, EX.
18320-MEN-A70
|
$356.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR, EX. PIPE
18323-MEN-A30
|
$89.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIVET, BLIND (4.8)
18324-MEB-670
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIVET, BLIND (3.2)
18326-KRN-A00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, FR. EX. PIPE PROTECTOR
18327-MEN-A70
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, RR. EX. PIPE PROTECTOR
18328-MEN-A30
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, EX. PROTECTOR
18329-MEN-A30
|
$16.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
PACK, GLASS WOOL CENTER
18334-MEN-A70
|
$153.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
WOOL, R. SUS
18336-MEN-A70
|
$132.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
WOOL B, GLASS
18337-KRN-850
|
$18.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
MUFFLER, R. FR.
18360-MEN-A70
|
$181.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY, R. MUFFLER
18361-MEN-A71
|
$300.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEPARATOR (R)
18362-MEN-A70
|
$50.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, R. EX. PIPE
18373-ML4-003
|
$35.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, MUFFLER JOINT
18375-MEN-A30
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, MUFFLER
18391-ML0-003
|
$33.94 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, MUFFLER
18391-ML8-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
MUFFLER, L. (COO)
18410-MEN-317
|
$990.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, L. END (COO)
18418-MEN-307
|
$177.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
WOOL, L. SUS
18436-MEN-A70
|
$132.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
MUFFLER, L. FR.
18460-MEN-A70
|
$461.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
BODY, L. MUFFLER
18461-MEN-A71
|
$291.42 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEPARATOR (L)
18462-MEN-A70
|
$50.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SPRING (6MM)
19508-KA3-710
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X25)
95701-08025-00
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (8X20)
90109-MEN-A30
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X32)
90124-MEB-770
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT (8X30)
90124-MEN-A00
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, SPECIAL (6MM)
90170-MEB-670
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, FR. MUFFLER STAY
90502-MEN-A70
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLAIN (8MM)
94102-08800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLAIN (8MM)
94103-08000
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
