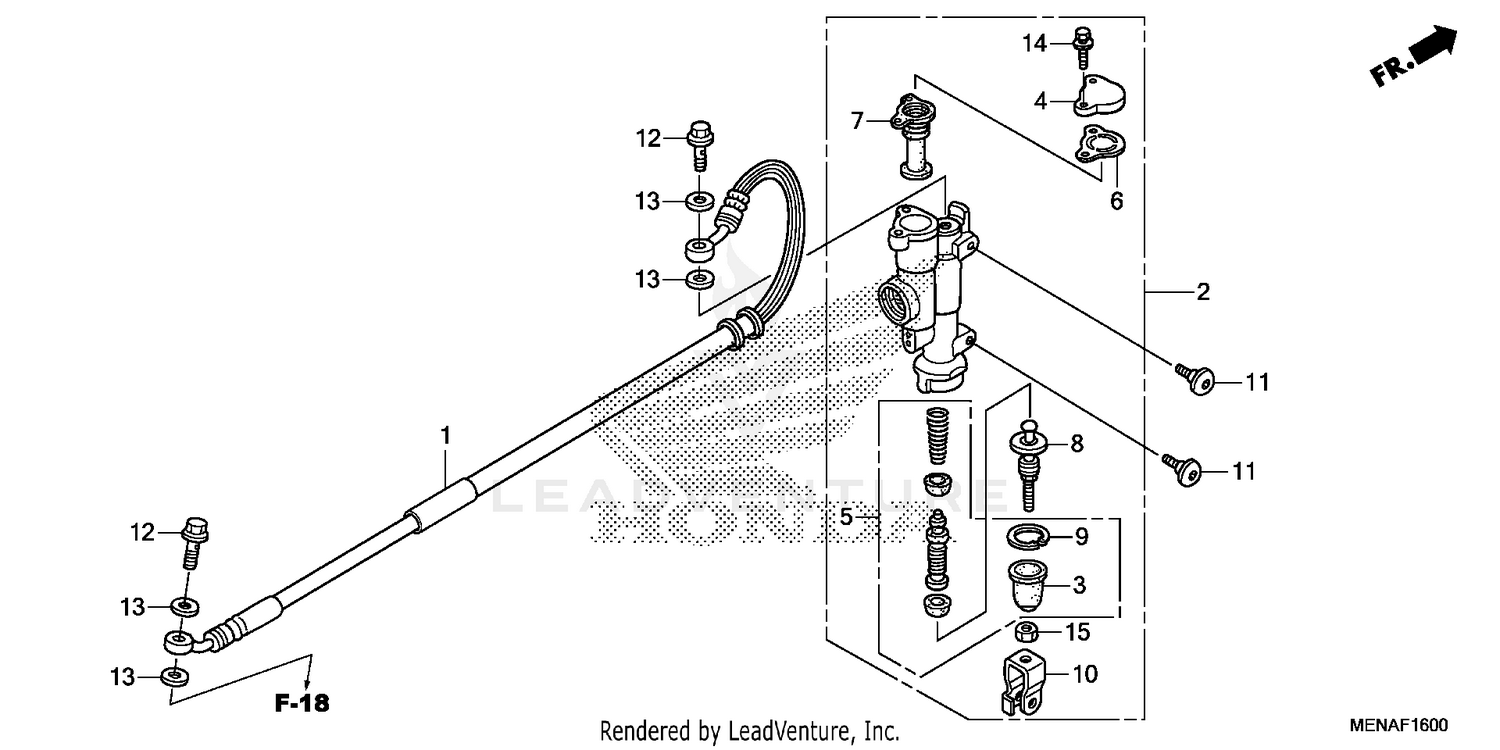

2013 Honda CRF 450R REAR BRAKE MASTER CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. BRAKE
43310-MEN-A31
|
$53.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)
43500-KZ4-J43
|
$340.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)
43500-MEN-305
Superseded by 43500-KZ4-J43
|
$340.00 | ||
|
Unavailable |
|||
|
#3
BOOT
43504-MB2-006
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, MASTER CYLINDER
43513-KZ4-J41
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON SET, MASTER CYLINDER
43520-KZ4-J43
|
$54.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, DIAPHRAGM
43521-KZ4-J41
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM
43522-KZ4-J41
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, PUSH
43530-KZ4-J41
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
46182-MEL-D21
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, BRAKE ROD
46504-KZ4-J41
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FR. DISK COVER (FOR RR.)
90114-MAC-780
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, OIL BOLT
90545-300-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (4X16)
93401-04016-00
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
94002-06000-0S
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
