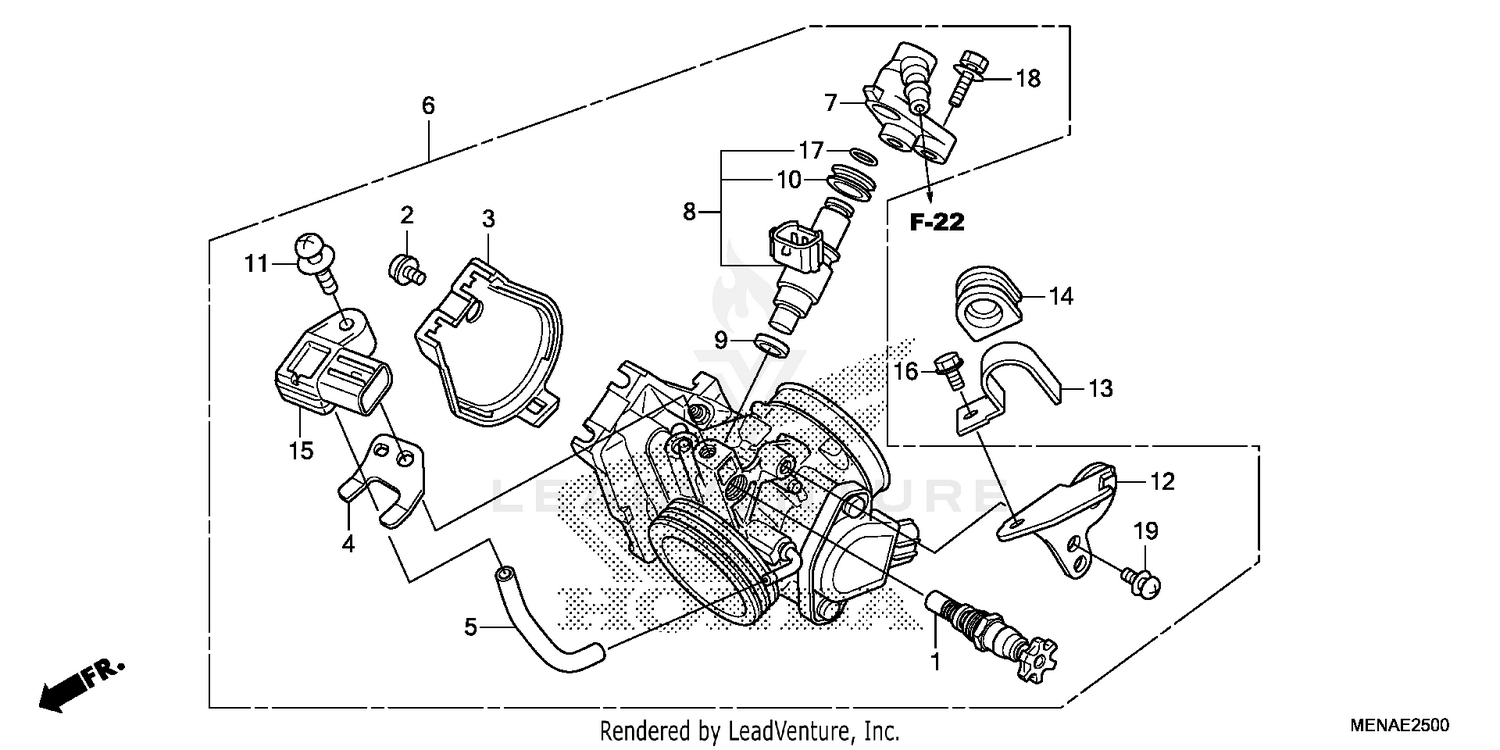

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, STARTER
16046-MEN-A41
|
$34.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, COVER
16080-HP1-601
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, BODY
16157-MEN-A31
|
$19.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, PB SENSOR
16191-MEN-A31
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE
16199-MEN-A51
|
$10.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
BODY ASSY., THROTTLE (GQ27A A)
16400-MEN-A71
|
$840.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, INJECTOR
16422-MEN-A31
|
$13.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
INJECTOR ASSY., FUEL
16450-MEN-A51
|
$165.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL RING, INJECTOR
16472-MCW-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION RING, INJECTOR
16473-P7A-004
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-WASHER (6X25)
16542-MEN-A41
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
BASE, CLAMP
17567-MEN-A31
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP, FUEL HOSE
17568-HP5-600
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, FUEL FEED HOSE
17579-HP5-600
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR ASSY., MAP
37830-MEL-003
|
$149.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (5X10)
90002-892-000
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (7.8X1.9)
91301-P7A-004
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-WASHER (5X20)
93401-05020-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (5X12) (Honda Code 0368621)
93892-05012-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (5X12)
93892-05012-18
Superseded by 93892-05012-08
|
$1.15 | ||
|
Unavailable |
|||
