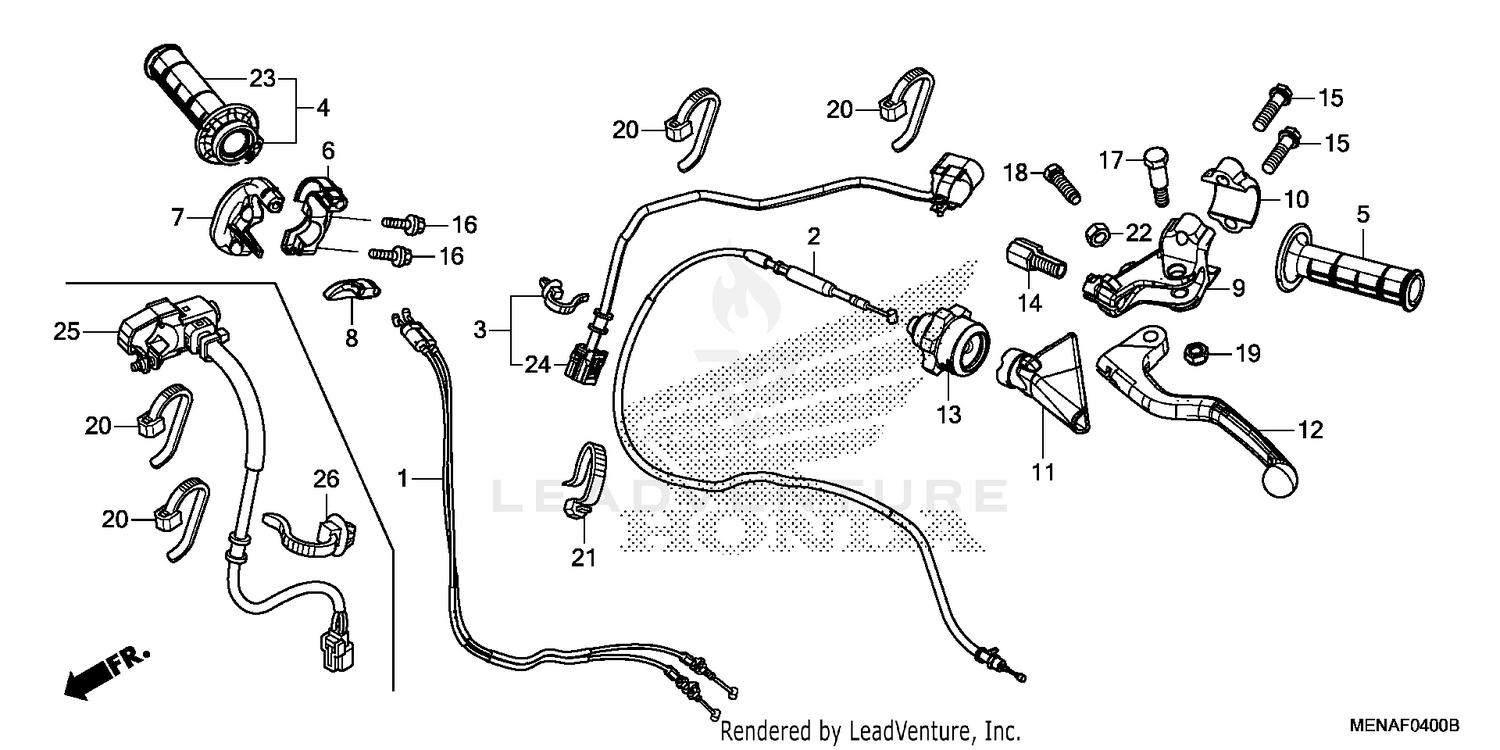

Handle Lever@switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, THROTTLE
17910-MEN-A71
Superseded by 17910-MEN-A81
|
$54.81 | ||
|
Available to order. Add to View Price |
|||
|
#1
CABLE, THROTTLE
17910-MEN-A81
|
$54.81 | ||
|
Unavailable |
|||
|
#2
CABLE, CLUTCH
22870-MEN-A70
|
$43.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., ENGINE STOP & INDICATOR
35130-MEN-A71
|
$109.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRIP, THROTTLE
53140-KRN-A30
|
$26.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRIP, THROTTLE
53140-MEN-305
Superseded by 53140-KRN-A30
|
$26.11 | ||
|
Unavailable |
|||
|
#5
GRIP, L. HANDLE
53166-KRN-A30
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP, L. HANDLE
53166-MEN-305
Superseded by 53166-KRN-A30
|
$11.98 | ||
|
Unavailable |
|||
|
#6
HOUSING, THROTTLE (UPPER)
53167-MEB-672
|
$24.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOUSING, THROTTLE (LOWER)
53168-MEB-671
Superseded by 53168-KRN-A90
|
$34.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOUSING, THROTTLE (LOWER)
53168-KRN-A90
|
$34.18 | ||
|
Unavailable |
|||
|
#8
SLIDER, THROTTLE CABLE
53169-MEB-670
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, L. HANDLE LEVER
53172-KSK-670
|
$46.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, L. LEVER BRACKET
53174-KCE-670
|
$15.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, L. HANDLE LEVER
53177-KSK-670
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, L. HANDLEBAR
53178-MEN-A01
|
$28.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, L. HANDLEBAR
53178-MEN-305
Superseded by 53178-MEN-A01
|
$28.73 | ||
|
Unavailable |
|||
|
#13
DIAL, CLUTCH CABLE ADJUSTING
53179-MEN-671
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WIRE ADJUSTING
53192-MEN-670
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X22)
90102-MEN-A60
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X20)
90106-MEN-A60
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HANDLEBAR LEVER PIVOT
90113-429-770
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, LEVER ADJUSTING
90118-MEN-670
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U (6MM)
90301-782-000
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, WIRE (Honda Code 2687788)
90650-KV6-003
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, WIRE HARNESS (Honda Code 1746650)
90650-MA6-720
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#23
GRIP, R. HANDLE (COO)
53165-KRN-A30
Superseded by 53165-MEN-305
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#23
GRIP, R. HANDLE (COO)
53165-MEN-305
|
$12.92 | ||
|
Unavailable |
|||
