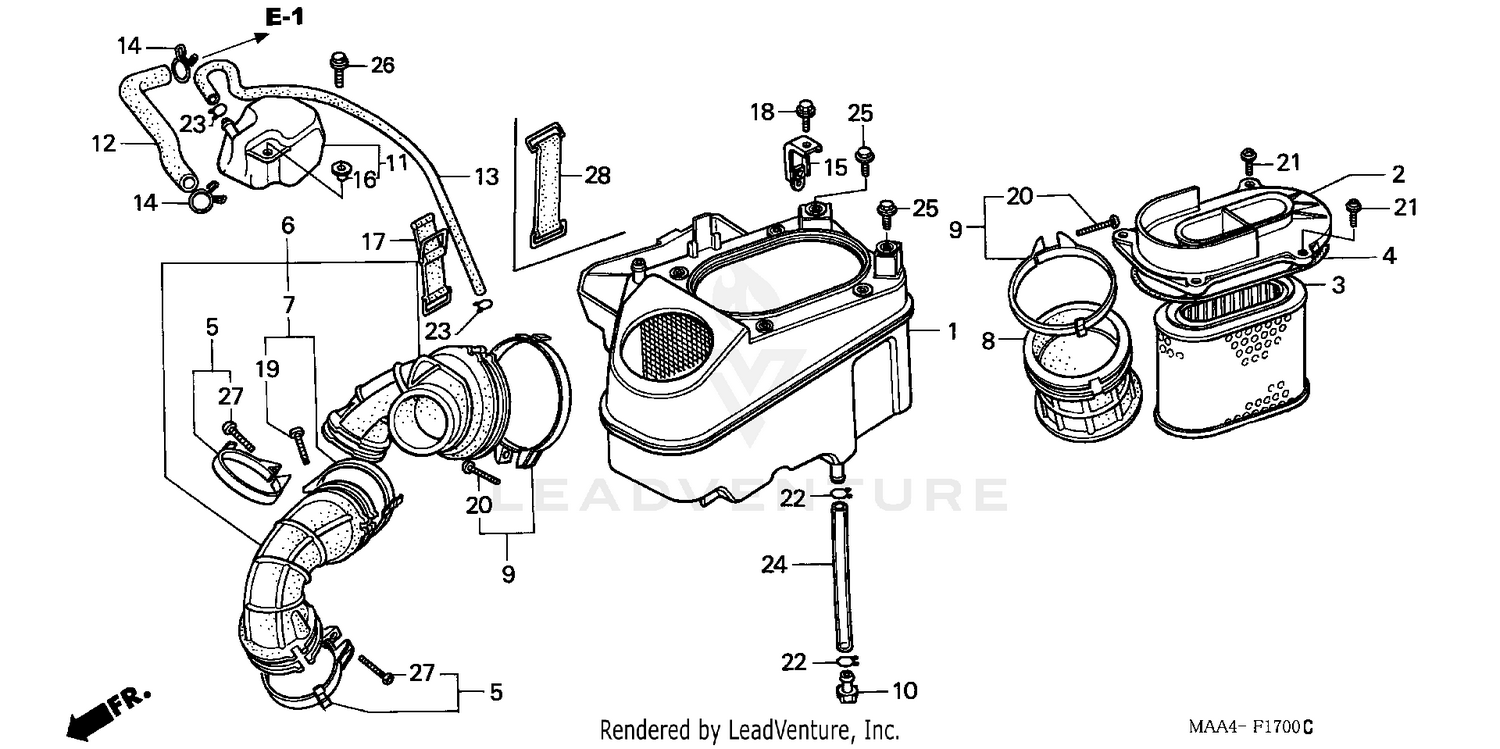

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE SUB, AIR CLEANER
17210-MM8-020
|
$85.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, AIR CLEANER HOUSING
17212-MM8-010
|
$10.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
ELEMENT, AIR CLEANER
17215-MM8-020
|
$35.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, AIR CLEANER HOUSING COVER
17217-MG8-300
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND A, CONNECTING TUBE
17254-MAH-611
|
$13.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTING TUBE A
17255-MM8-000
|
$59.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, AIR CLEANER CONNECTING TUBE (52)
17256-MM8-000
Superseded by 95018-52250
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, AIR CLEANER CONNECTING TUBE (52)
95018-52250
|
$6.18 | ||
|
Unavailable |
|||
|
#8
TUBE B, AIR CLEANER CONNECTING
17258-MM8-300
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND C, CONNECTING TUBE
17259-MM8-000
|
$20.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, BREATHER TUBE
17370-419-700
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, STORAGE
17551-MM8-000
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE A, BREATHER
17552-MCK-A00
|
$41.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE B, BREATHER
17553-MM8-000
|
$15.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, FILLER NECK
19111-MM8-000
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, FR. FENDER
61105-KM7-910
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6MM)
90116-ME9-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (4X20)
93500-04020-0G
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (4X25)
93500-04025-0G
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (5X16)
93891-05016-07
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, TUBE (B12)
95002-02120
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, TUBE (B12.5)
95002-02130
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
BULK HOSE, VINYL (7X11X8000) (7X11X260)
95003-19008-60M
|
$34.72 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (4X18)
93500-04018-0G
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND A, BATTERY
95012-11001
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
