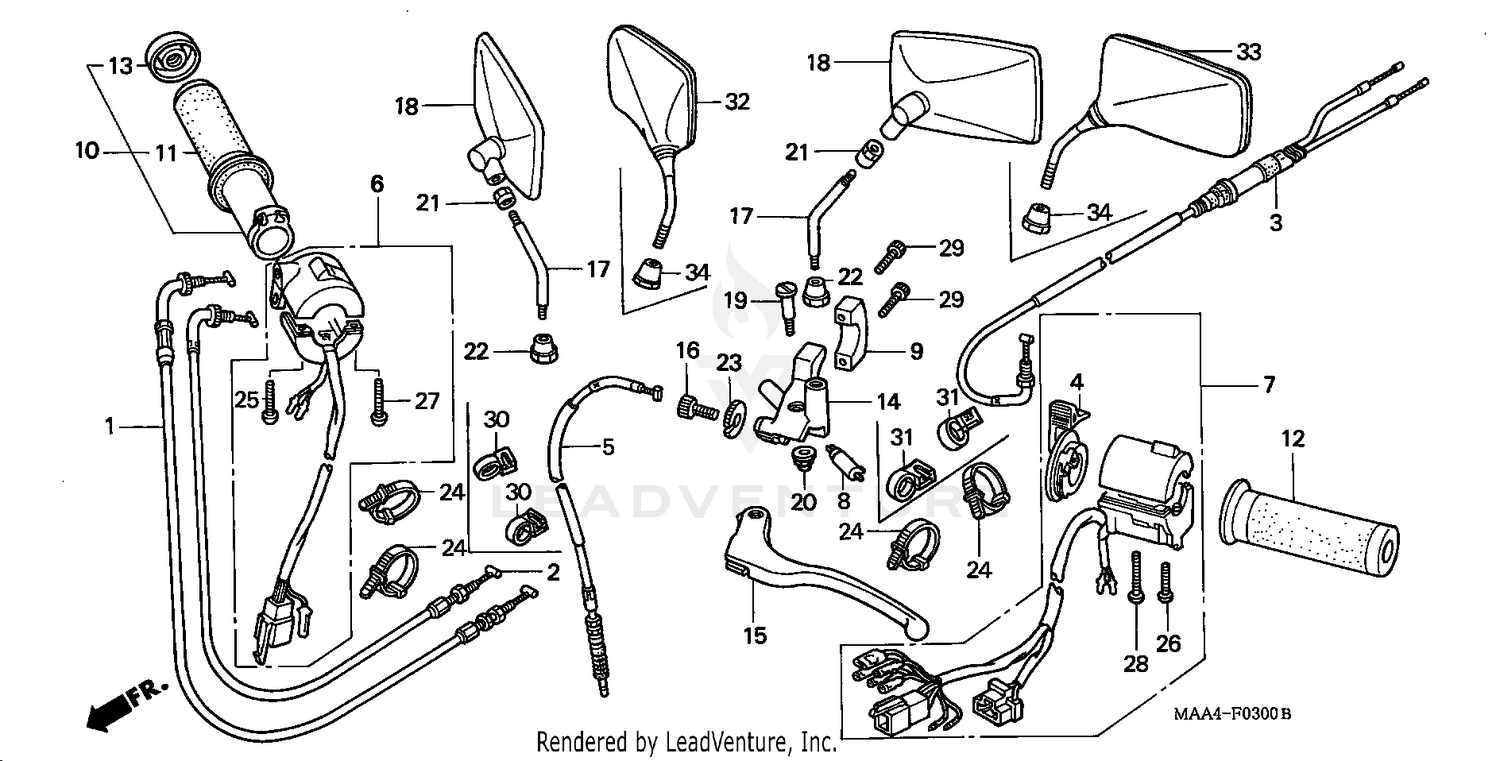

Handle Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE A, THROTTLE
17910-MAH-000
|
$105.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE B, THROTTLE
17920-MAH-000
|
$38.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, CHOKE
17950-MAH-000
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, CHOKE
17962-MZ0-671
|
$25.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, CLUTCH
22870-MAH-000
|
$38.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., STARTER & STOP
35013-MAH-A01
Superseded by 35013-MAH-A02
|
$159.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., STARTER & STOP
35013-MAH-A11
Superseded by 35013-MAH-A02
|
$159.48 | ||
|
Unavailable |
|||
|
#7
SWITCH SET, TURN SIGNAL
35020-MAH-A00
|
$138.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH SET, TURN SIGNAL
35020-MAH-A10
Superseded by 35020-MAH-A00
|
$138.91 | ||
|
Unavailable |
|||
|
#8
SWITCH, FR. LEVER
35330-413-003
|
$25.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, MASTER CYLINDER (NISSIN)
45517-MR1-671
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
GRIP, R.
53145-MM8-000
|
$50.82 | ||
|
Unavailable |
|||
|
#11
GRIP, R.
53145-MM8-000
|
$50.82 | ||
|
Unavailable |
|||
|
#11
GRIP, R.
53165-MM8-000
Superseded by 53145-MM8-000
|
$50.82 | ||
|
Unavailable |
|||
|
#12
GRIP, L. HANDLE
53166-KCR-000
|
$42.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, GRIP END
53167-MM8-000
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, HANDLE LEVER
53172-MR1-000
|
$41.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, L. HANDLE
53178-MAH-000
|
$22.61 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WIRE ADJUSTING
53192-268-000
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, L. HANDLEBAR LEVER PIVOT
90113-438-000
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CAP (6MM)
90201-415-000
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FIXING
90321-MA6-750
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (5X20)
93500-05020-0A
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (5X22)
93500-05022-0A
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (5X25)
93500-05025-0A
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (5X32)
93500-05032-0A
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, SOCKET (6X22)
96600-06022-10
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, SOCKET (6X22)
96700-06022-10
Superseded by 96600-06022-10
|
$2.29 | ||
|
Unavailable |
|||
|
#30
CLIP, CABLE (12MM)
90690-GHB-691
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, CABLE (17MM)
90690-GHB-701
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#32
MIRROR, R.
88210-GCK-000
|
$78.26 | ||
|
Available to order. Add to View Price |
|||
|
#33
MIRROR, L.
88220-GCK-000
|
$83.01 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, LOCK
90314-323-000
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
