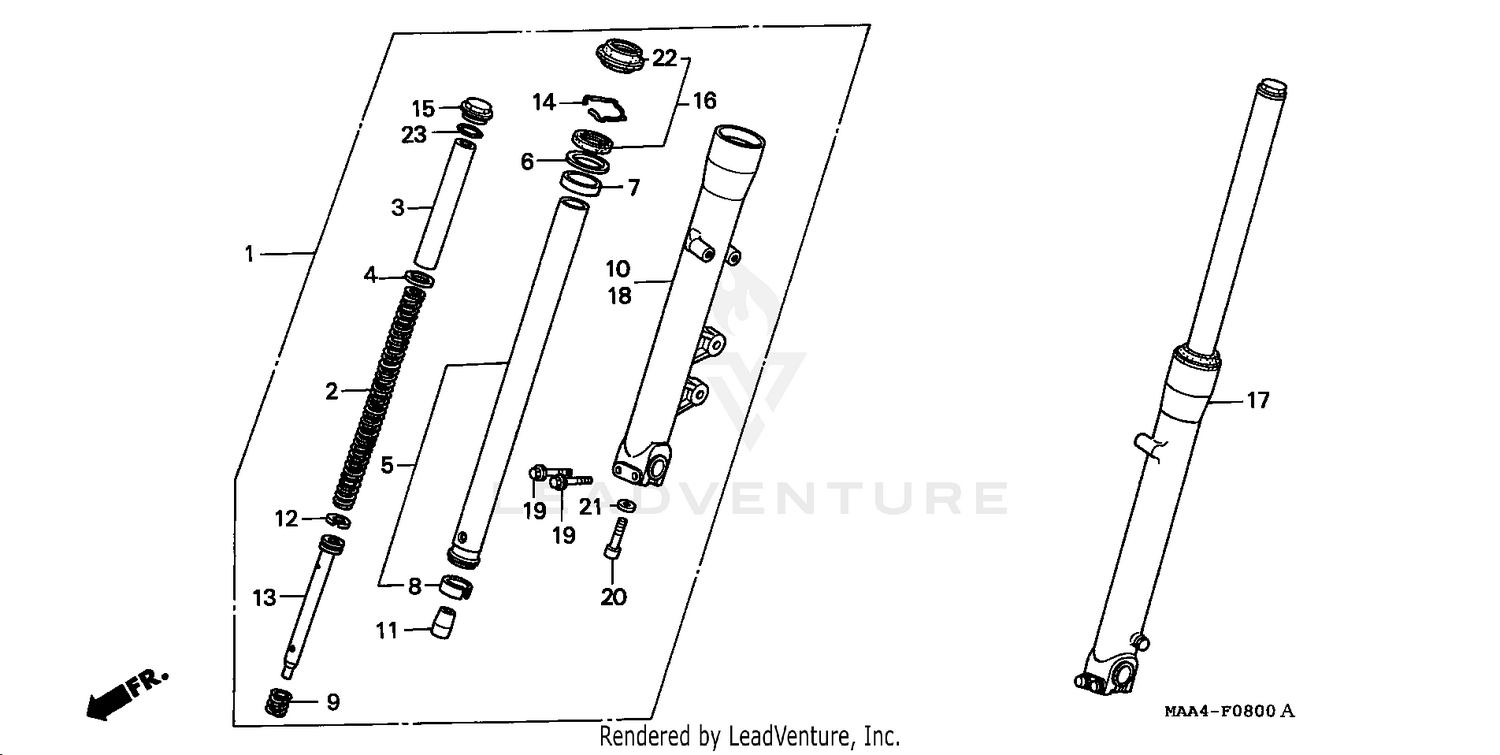

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK ASSY., R. FR.
51400-MAA-A01
|
$674.03 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, FR. FORK (SHOWA)
51401-MM8-881
|
$86.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SPRING (SHOWA)
51402-MM8-881
|
$24.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, SPRING JOINT
51404-MB4-003
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, FR. FORK
51410-MAA-A01
|
$322.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, BACK-UP
51412-MB4-003
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, GUIDE (SHOWA)
51414-KCR-003
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SLIDER (SHOWA)
51415-KCR-003
|
$14.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, FR. REBOUND (SHOWA)
51416-MM8-881
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, R. (LOWER)
51420-MAA-A01
|
$338.03 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, OIL LOCK
51432-MV9-003
|
$28.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, PISTON (SHOWA)
51437-MN5-003
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, SEAT
51440-MAA-003
|
$55.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, OIL SEAL STOPPER
51447-KA4-711
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FR. FORK
51455-MG9-771
|
$52.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL SET, FR. FORK
51490-MN8-305
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
FORK ASSY., L. FR.
51500-MAA-A01
|
$667.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
CASE, L. (LOWER)
51520-MAA-A01
|
$338.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X45)
90109-MR7-000
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (8X27)
90116-383-721
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL
91254-MM8-003
|
$20.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
91356-MB4-003
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
