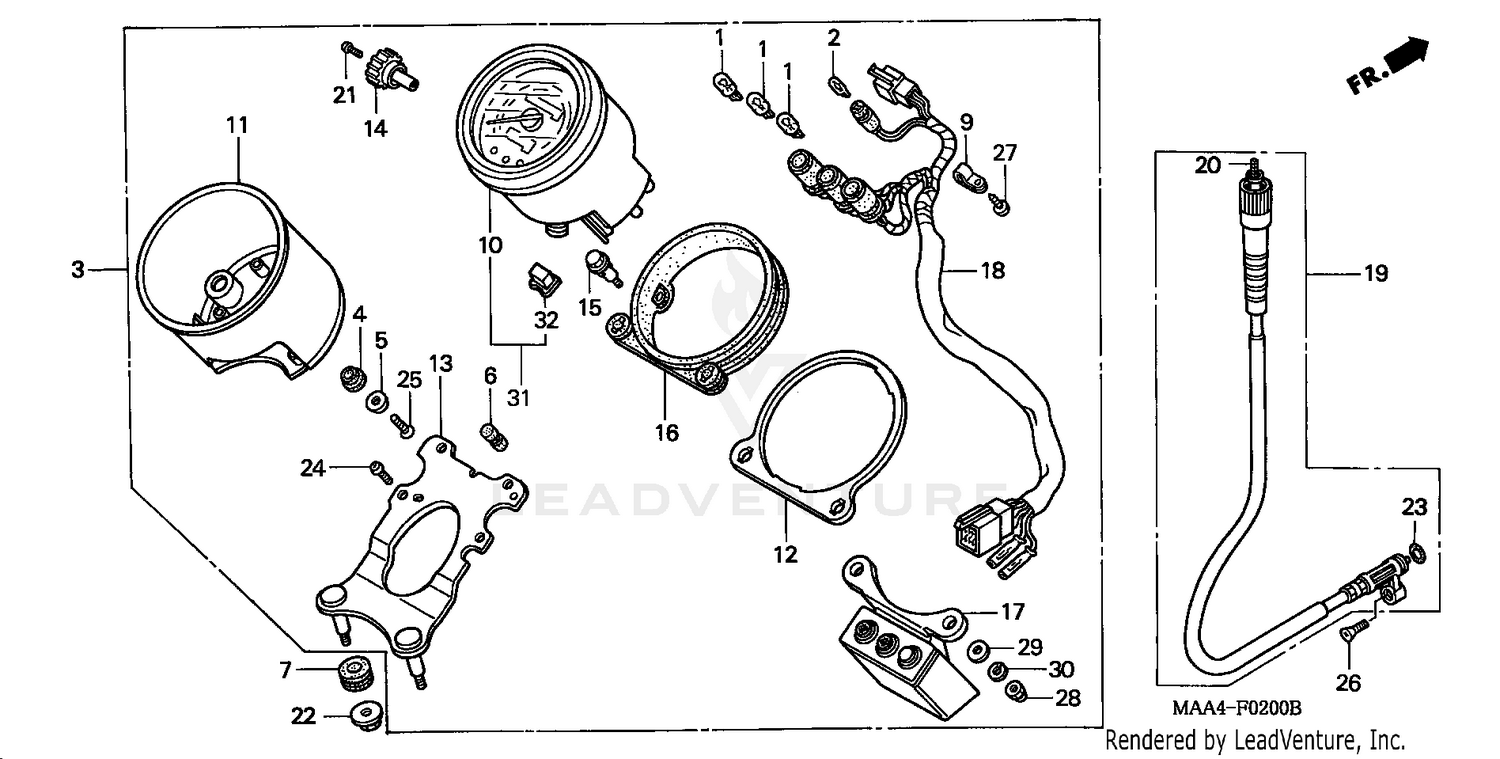

Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB (14V 3.4W) (NS)
34908-GA7-701
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#1
BULB (14V 3.4W) (NS)
37102-567-009
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#1
BULB (14V 3.4W) (NS)
37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#1
BULB (14V 3.4W) (NS)
37237-SA5-004
Superseded by 37237-SA5-003
|
$5.02 | ||
|
Unavailable |
|||
|
#2
BULB, WEDGE BASE (T6.5) (12V 3W)
34908-KM1-671
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
METER ASSY., COMBINATION
37100-MAA-A31
|
$342.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, METER SETTING
37101-MB1-008
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
37102-MB1-008
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, MOUNTING
37103-MAH-008
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, METER MOUNTING
37111-MF5-000
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
37121-KV3-008
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, METER
37204-MAH-008
|
$56.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, SETTING
37211-MAH-A01
|
$44.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET
37212-MAH-008
|
$36.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
KNOB, TRIP METER
37220-MB4-671
|
$16.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, PILOT BOX SETTING
37225-MM8-008
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, CUSHION
37242-MM8-008
|
$20.86 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOX ASSY., PILOT
37600-MAH-A01
Superseded by 37600-MAH-B01
|
$113.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
SOCKET
37619-MAA-A31
|
$59.68 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-ME5-405
|
$35.17 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-ME5-850
Superseded by 44830-ME5-405
|
$35.17 | ||
|
Unavailable |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-ME8-000
Superseded by 44830-ME5-405
|
$35.17 | ||
|
Unavailable |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-MF5-000
Superseded by 44830-ME5-405
|
$35.17 | ||
|
Unavailable |
|||
|
#19
CABLE ASSY., SPEEDOMETER
44830-MK3-000
Superseded by 44830-ME5-405
|
$35.17 | ||
|
Unavailable |
|||
|
#20
CABLE (INNER)
44831-KM1-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE (INNER)
44831-MB1-300
Superseded by 44831-KM1-000
|
$5.04 | ||
|
Unavailable |
|||
|
#20
CABLE (INNER)
44831-ME1-670
Superseded by 44831-KM1-000
|
$5.04 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN (2X6)
90158-KM7-911
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (6MM)
90302-187-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (6.8X1.9)
91301-027-000
Superseded by 91306-PJ4-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (6.8X1.9)
91306-PJ4-000
|
$3.62 | ||
|
Unavailable |
|||
|
#23
O-RING (6.8X1.9)
91310-MC7-003
Superseded by 91306-PJ4-000
|
$3.62 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (4X8)
93500-04008-0A
|
$0.86 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (4X8)
93500-04008-1A
Superseded by 93500-04008-0A
|
$0.86 | ||
|
Unavailable |
|||
|
#25
SCREW, OVAL (4X8)
93700-04008-0B
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, OVAL (5X20)
93700-05020-0G
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING (4X12)
93903-34320
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, CAP (5MM)
94021-05020-0S
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (5MM)
94103-05000
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING (5MM)
94111-05000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPEEDOMETER ASSY.
37200-MAA-A31
|
$280.18 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
37218-GE1-741
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
