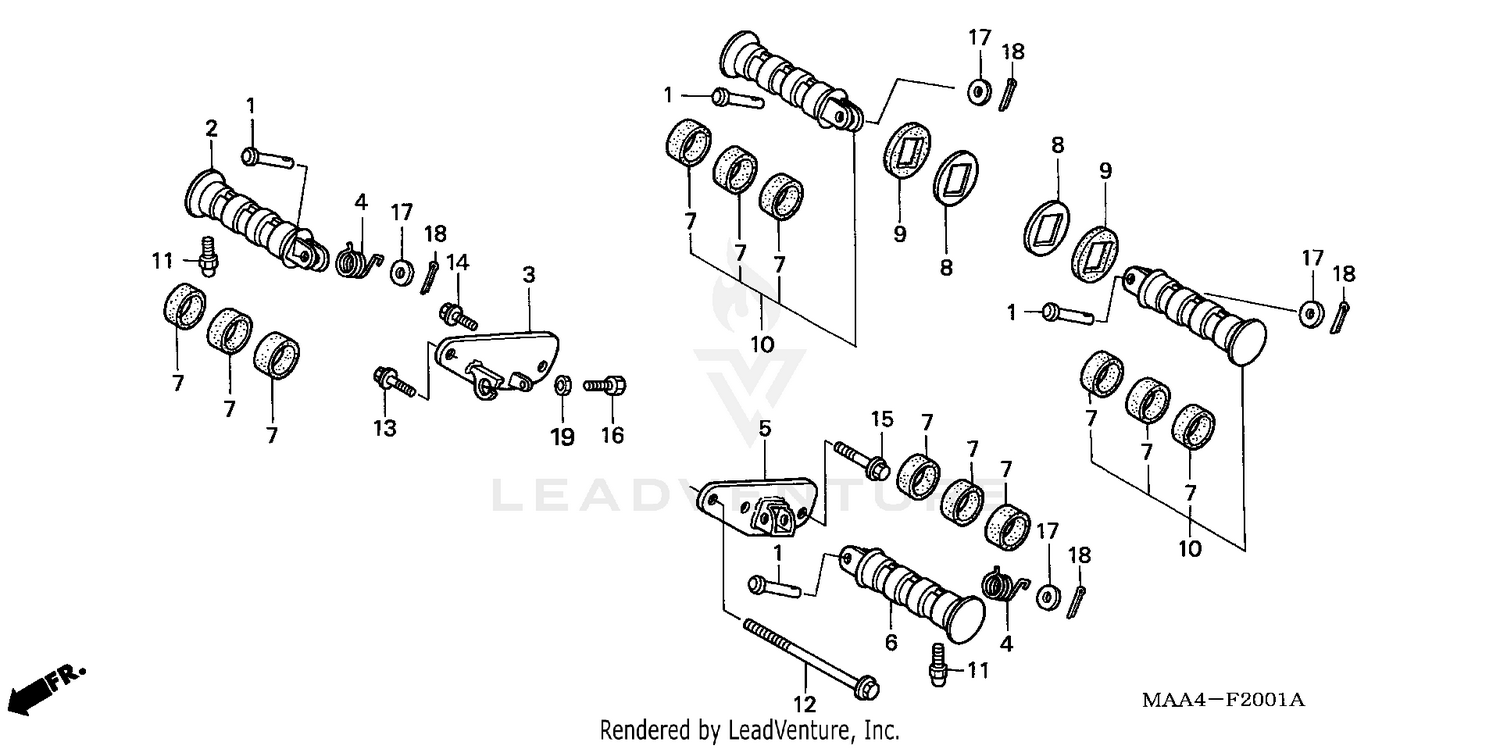

Step (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, STEP BAR JOINT
50603-033-010
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, R. STEP
50612-MBA-020
|
$28.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, R. STEP
50615-MAA-A80
|
$448.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, STEP RETURN
50617-MAA-A80
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, L. STEP
50625-MAA-A80
|
$345.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, L. STEP
50642-MBA-020
|
$27.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, MAIN STEP
50661-MBA-010
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PILLION STEP
50712-MBA-000
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, PILLION STEP
50713-MBA-000
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
STEP ASSY., PILLION
50715-MBA-020
|
$38.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BANK SENSOR
90111-MBA-003
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (8X130)
90116-MAA-A00
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (10X20)
90130-126-900
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL FLANGE (10X60)
90159-438-000
|
$8.03 | ||
|
Unavailable |
|||
|
#15
BOLT, SPECIAL FLANGE (8X26)
90183-438-000
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X16)
92101-06016-0B
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (8MM)
94101-08000
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, SPLIT (2.0X15)
94201-20150
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (6MM)
94002-06000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
