2005 Honda SHADOW SPIRIT Fuel Tank OEM Parts

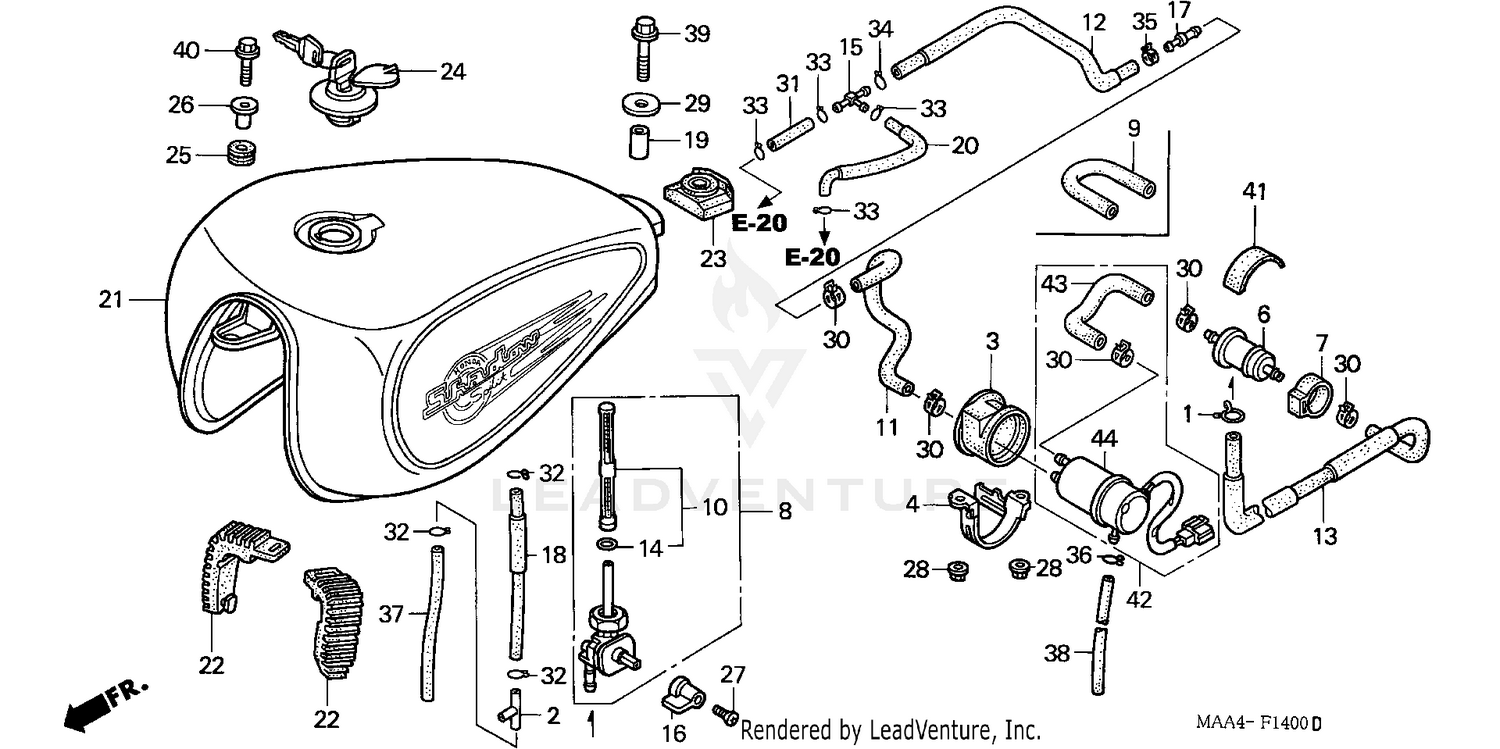

Fuel Tank Diagram

Item	MSRP	Qty
#1 CLIP, OIL DRAIN TUBE 15771-KV6-000	$4.47
Available to order. Add to View Price
#2 T-JOINT 16180-195-731	$15.02
Available to order. Add to View Price
#3 RUBBER, FUEL PUMP 16701-MAA-000	$23.25
Available to order. Add to View Price
#4 BAND, FUEL PUMP 16703-MCK-A00	$166.05
Available to order. Add to View Price
#6 FILTER, FUEL 16900-MG8-003	$27.24
Available to order. Add to View Price
#7 CUSHION, FUEL STRAINER 16905-MG7-000	$9.54
Available to order. Add to View Price
#8 PETCOCK ASSY. 16950-MAH-023	$120.18
Available to order. Add to View Price
#10 SCREEN SET, FUEL STRAINER 16952-MAH-003	$41.78
Available to order. Add to View Price
#11 TUBE C, FUEL 16953-MCK-A00	$9.15
Available to order. Add to View Price
#12 TUBE D, FUEL 16954-MAH-000	$19.21
Available to order. Add to View Price
#13 TUBE A, FUEL 16955-MCK-A00	$31.02
Available to order. Add to View Price
#14 O-RING 16958-KM9-005	$4.67
Available to order. Add to View Price
#15 JOINT, FUEL TUBE 16961-MK7-000	$25.14
Available to order. Add to View Price
#16 LEVER, PETCOCK 16963-MY5-610	$16.57
Available to order. Add to View Price
#17 JOINT, FUEL TUBE 16966-MR1-000	$9.10
Available to order. Add to View Price
#18 TUBE, FUEL TANK BREATHER 17467-MAH-000	$24.80
Available to order. Add to View Price
#19 COLLAR, FUEL TANK MOUNTING 17515-MAH-000	$3.54
Available to order. Add to View Price
#20 TUBE, L. CARBURETOR FUEL 17515-MG8-000	$13.56
Available to order. Add to View Price
#21 *TANK SET, FUEL NH1* (WL) (BLACK)** 17520-MAA-B00ZA	$2,116.38
Available to order. Add to View Price
#21 *TANK SET, FUEL R274M* (WL) (DURANGO RED METALLIC)** 17520-MAA-B00ZC	$1,429.52
Available to order. Add to View Price
#22 RUBBER, FR. FUEL TANK 17611-MM8-000	$34.85
Available to order. Add to View Price
#23 RUBBER, RR. FUEL TANK 17613-MM8-000	$45.89
Available to order. Add to View Price
#24 CAP, FUEL FILLER 17620-KR3-751 Superseded by 17620-KR3-753	$82.22
Unavailable
#25 RUBBER, RADIATOR MOUNTING 19051-GE2-000	$5.98
Available to order. Add to View Price
#26 COLLAR, SETTING 61104-422-000	$8.30
Available to order. Add to View Price
#27 SCREW, OVAL (5X12) 90111-MZ5-000	$4.61
Available to order. Add to View Price
#28 NUT, U (6MM) 90301-473-003	$4.89
Available to order. Add to View Price
#29 WASHER, TANK MOUNTING 90455-896-700	$3.76
Available to order. Add to View Price
#30 CLAMP, CANISTER HOSE 90682-SA0-671	$9.22
Available to order. Add to View Price
#31 BULK HOSE, FUEL (5.5X3000) (5.3X65) 95001-55003-60M	$54.84
Available to order. Add to View Price
#32 CLIP, TUBE (B8) 95002-02080	$1.79
Available to order. Add to View Price
#33 CLIP, TUBE (B10) 95002-02100	$1.89
Available to order. Add to View Price
#34 CLIP, TUBE (B12) 95002-02120	$2.00
Available to order. Add to View Price
#35 CLAMP, TUBE (D12) 95002-41200-08	$2.54
Available to order. Add to View Price
#36 CLIP, TUBE (C9) 95002-50000	$1.30
Available to order. Add to View Price
#37 BULK HOSE, VACUUM (4.5X1000) (4.5X370) 95005-45001-10M	$27.20
Available to order. Add to View Price
#38 BULK HOSE, VACUUM (5X3000) (5X300) 95005-50003-30M	$24.17
Available to order. Add to View Price
#39 BOLT, FLANGE (8X35) 95701-08035-07	$1.53
Available to order. Add to View Price
#40 BOLT, FLANGE (6X25) 96001-06025-07	$1.48
Available to order. Add to View Price
#41 PROTECTOR 16911-MAH-300	$7.09
Available to order. Add to View Price
#42 PUMP, FUEL 16710-MCK-305 Superseded by 16710-MCK-315	$170.35
Available to order. Add to View Price
#42 PUMP, FUEL 16710-MCK-315	$170.35
Unavailable
#43 TUBE B, FUEL 16952-MCK-A01	$10.24
Available to order. Add to View Price
#44 PUMP, FUEL (MSDS) 16710-MAH-752 Superseded by 16710-MAH-753	$196.10
Available to order. Add to View Price
#44 PUMP, FUEL 16710-MAH-753	$196.10
Unavailable
