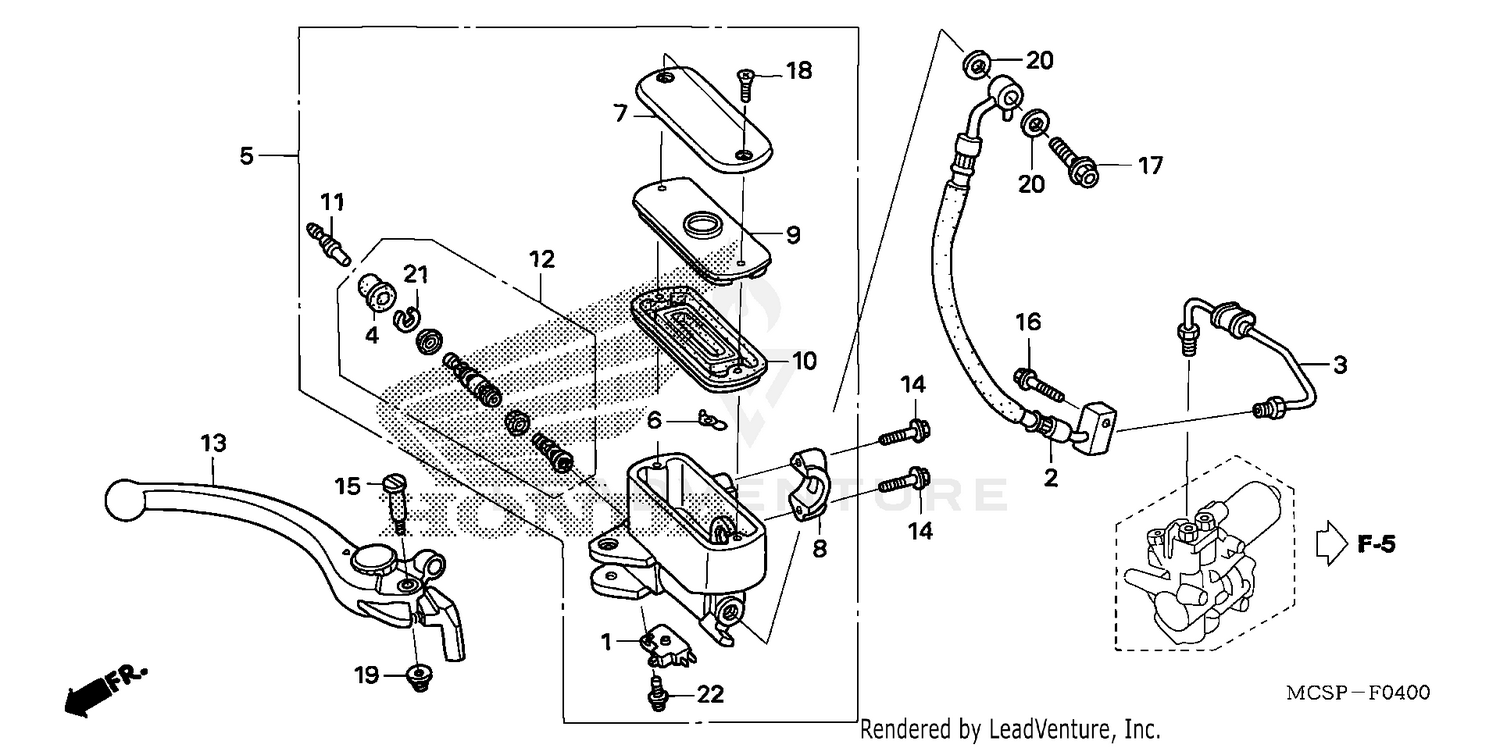

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MM5-600
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE A, FR. BRAKE
45125-MCS-A31
|
$74.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE A, FR. BRAKE
45126-MCS-G02
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
45504-410-003
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER CYLINDER SUB-ASSY., FR. (NISSIN)
45510-MCS-761
|
$288.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR
45512-MA6-006
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, MASTER CYLINDER (NISSIN)
45513-MR1-016
|
$35.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, MASTER CYLINDER
45517-MCS-761
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DIAPHRAGM (NISSIN)
45518-MM5-006
|
$12.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
DIAPHRAGM (NISSIN)
45520-MM5-006
|
$17.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PUSH
45525-MAJ-G41
|
$24.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON SET, FR. MASTER CYLINDER
45530-MAJ-G41
|
$63.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER ASSY., R. HANDLE
53170-MCS-G01
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X22)
90010-GHB-660
Superseded by 96001-06022-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.37 | ||
|
Unavailable |
|||
|
#15
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X28)
90114-MCS-G00
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
90158-MT7-000
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CAP (6MM)
90201-415-000
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
90651-MA5-671
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (4X12)
93893-04012-07
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.35 | ||
|
Unavailable |
|||
