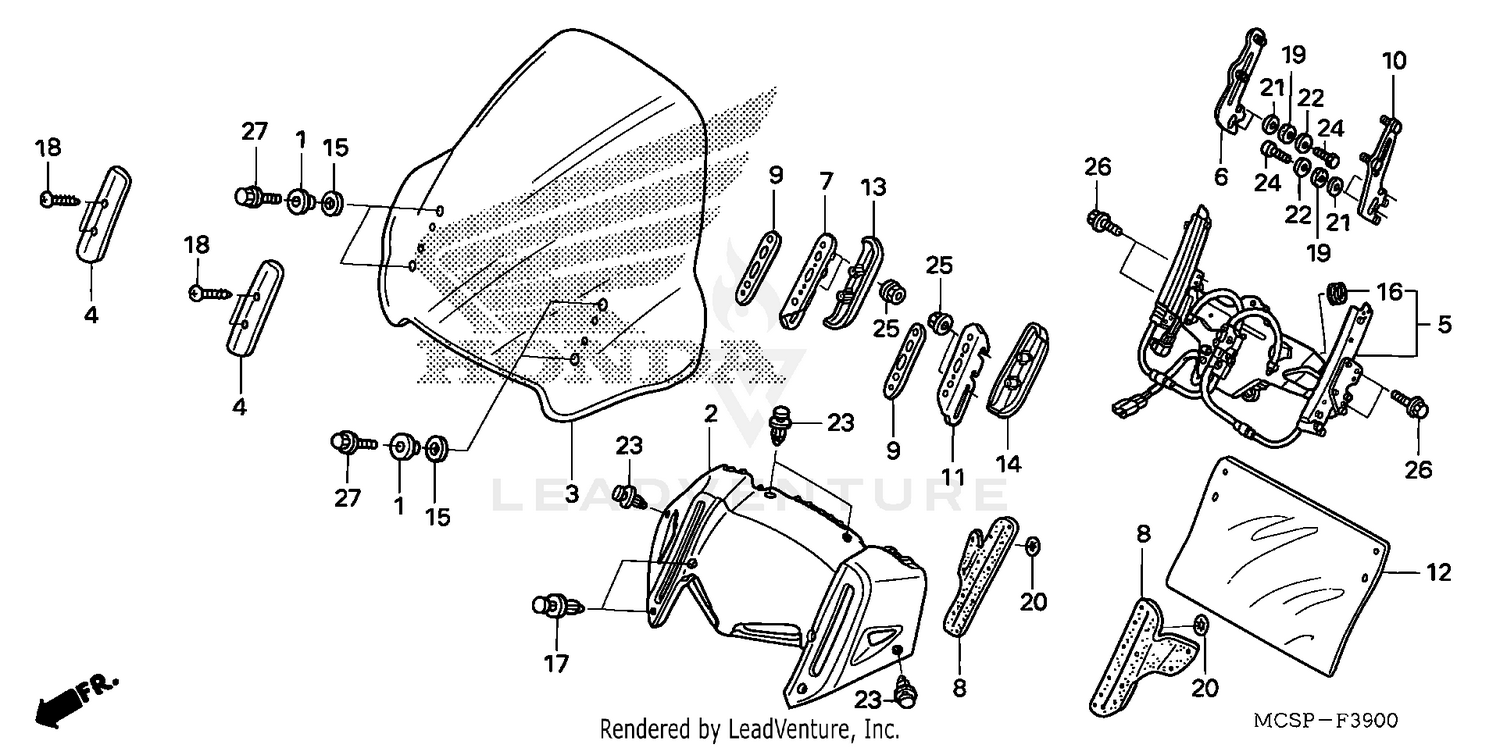

Windscreen Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, SIDE COVER
61104-435-000
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
COWL, WINDSCREEN (INNER)
64110-MCS-G01
|
$50.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
WINDSCREEN
64150-MCS-G00
|
$726.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, WINDSCREEN
64151-MCS-G00
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
ADJUSTER ASSY., WINDSCREEN
64170-MCS-G01
|
$799.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, R. WINDSCREEN
64171-MCS-G01
|
$19.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, R. WINDSCREEN
64172-MCS-G00
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, WINDSCREEN ADJUSTER
64174-MCS-G00
|
$14.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, WINDSCREEN ADJUSTER
64175-MCS-G00
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, L. WINDSCREEN
64176-MCS-G01
|
$19.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, L. WINDSCREEN
64177-MCS-G00
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, WINDSCREEN ADJUSTER
64178-MCS-G00
|
$31.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, R. WINDSCREEN BRACKET
64183-MCS-G00
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, L. WINDSCREEN BRACKET
64188-MCS-G00
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (9X17X1)
64509-MK4-000
Superseded by 90511-MCS-G50
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (9X17X1)
90511-MCS-G50
|
$2.01 | ||
|
Unavailable |
|||
|
#16
GROMMET A, WINDSCREEN
64527-MBC-000
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIVET, PUSH
90116-MCS-G00
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (4X25)
90126-MCS-G00
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, BUMPER BOLT
90148-SA0-000
|
$4.34 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, PUSH (3MM)
90301-ST0-003
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, PUSH (3MM)
90310-SB2-003
Superseded by 90301-ST0-003
|
$2.93 | ||
|
Unavailable |
|||
|
#21
WASHER
90501-MT2-000
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (6X20)
90512-MBY-000
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, SPLASH SHIELD
90657-SB0-003
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. (6X14) BOLT, FLANGE (6X14)
92101-06014-0A
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (6MM)
94050-06070
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X18)
96001-06018-07
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
